V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1048

Page 49
background image

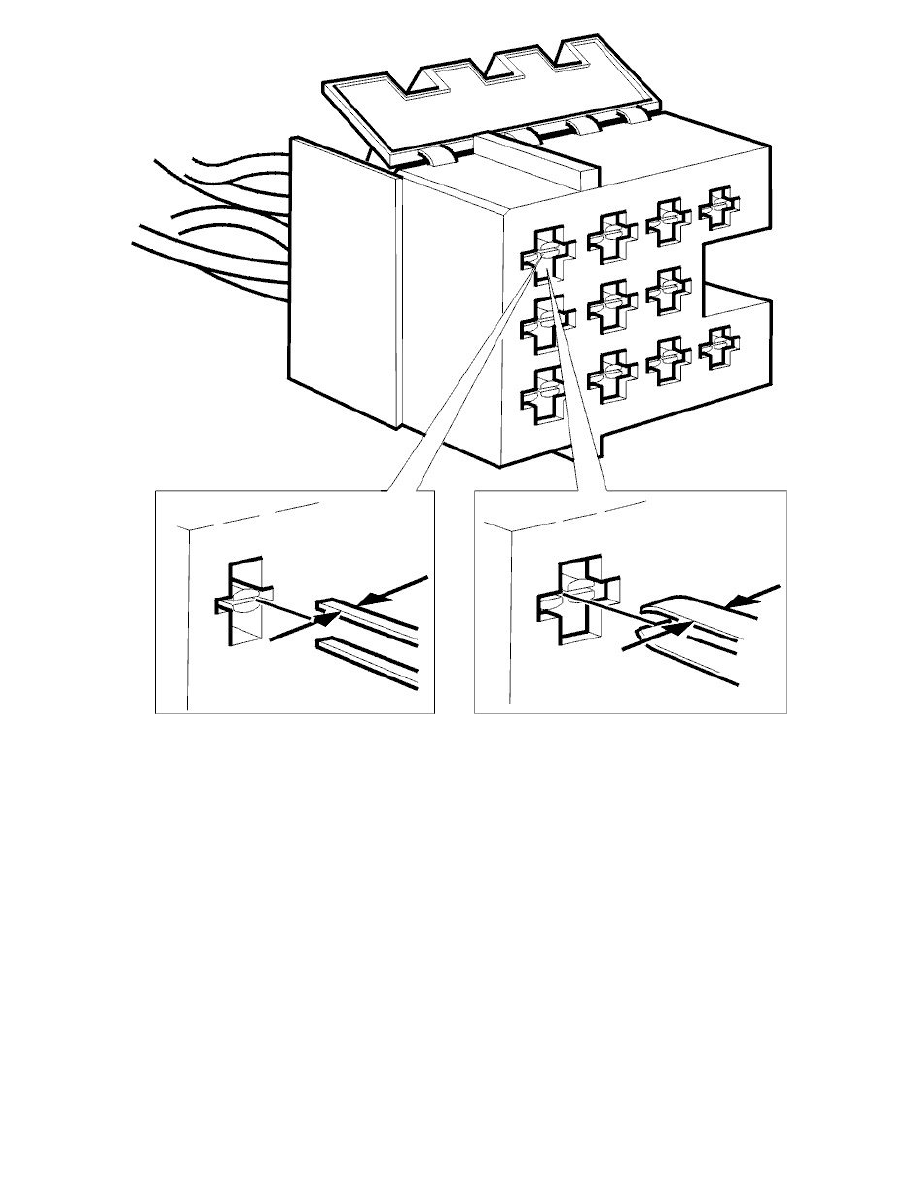

Use tool: 951 2630 Terminal removal tool  See: Tools and Equipment/951 2630 Terminal Removal Tool  and 951 2631 Terminal removal tool  See:
Tools and Equipment/951 2631 Terminal Removal Tool  to remove the primary lock, see graphic.
At the same time pull the cable carefully backwards.
