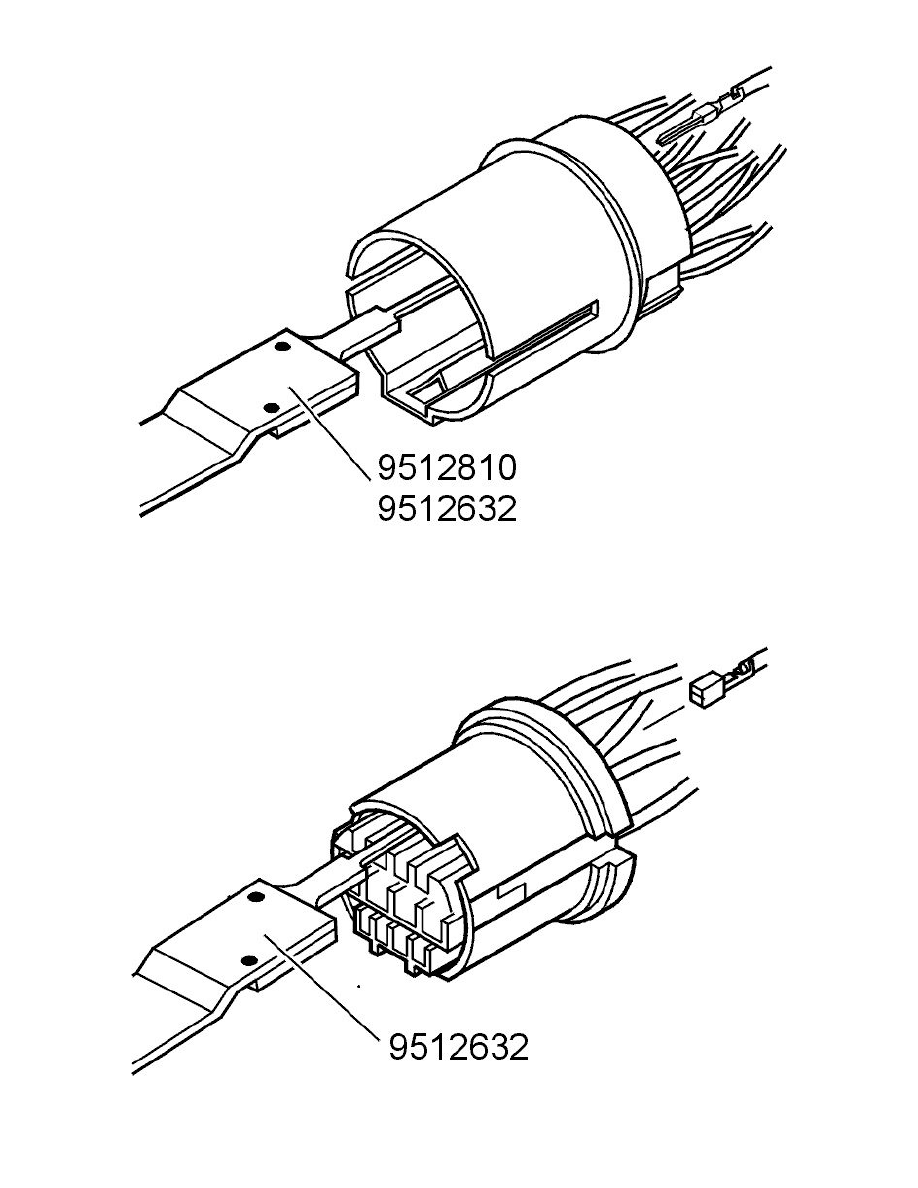

Use tool: 951 2810 Terminal removal tool See: Tools and Equipment/951 2810 Terminal Removal Tool , 951 2632 Terminal removal tool  See: Tools
and Equipment/951 2632 Terminal Removal Tool  and 951 2639 Terminal removal tool  See: Tools and Equipment/951 2639 Terminal Removal Tool
to remove the primary lock, as graphics.
At the same time pull the cable carefully backwards.

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1051
