V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1053

Page 54
background image

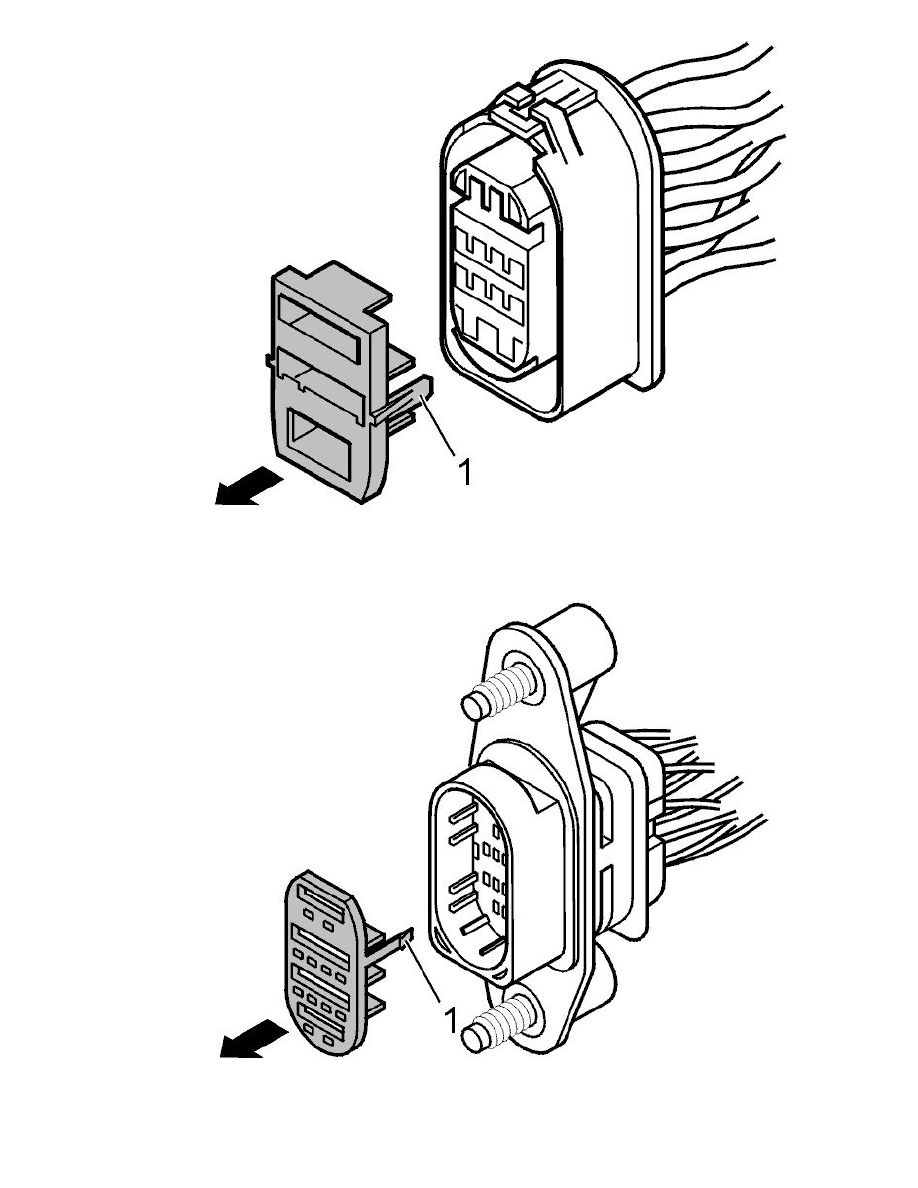

Angle out the catches on both sides.
Pull out the secondary lock.

Disassembling primary lock
