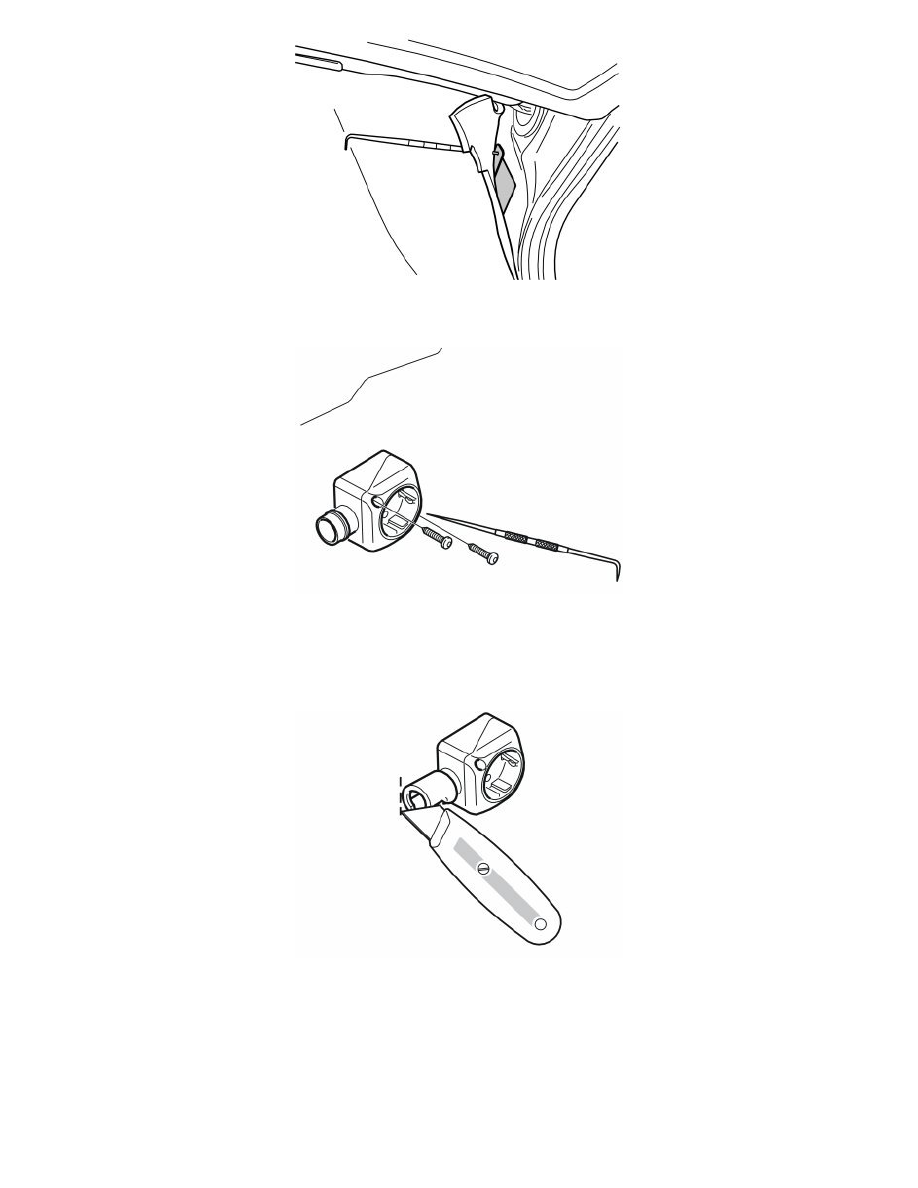

Fold the carpet back over the bracket.
-
Make a hole in the carpet opposite the upper mounting hole in the bracket using a double ended scriber.
-
Take a screw and the passenger compartment connector socket from the kit. Tighten the passenger compartment connector socket to the bracket in
the upper mounting.
-
Insert the double ended scriber into the lower mounting for the passenger compartment connector socket. Make a hole in the carpet opposite the
lower hole on the bracket.
-
Tighten the lower mounting for the passenger compartment connector socket using a screw from the kit.
-
Press a locking sleeve (from the kit) onto the passenger compartment connector socket. Slide the locking sleeve as far along the terminal for the
passenger compartment connector socket as possible.
-
Take a carpet knife and cut a slit in the carpet just in front of the locking sleeve. Make the cut as long as the diameter of the locking sleeve.
Note! Do not damage any wiring and hoses under the carpet.
-
Remove the passenger compartment connector socket from the bracket.
