COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Airbag › COMPONENTS AND CONNECTORS (cont.d)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

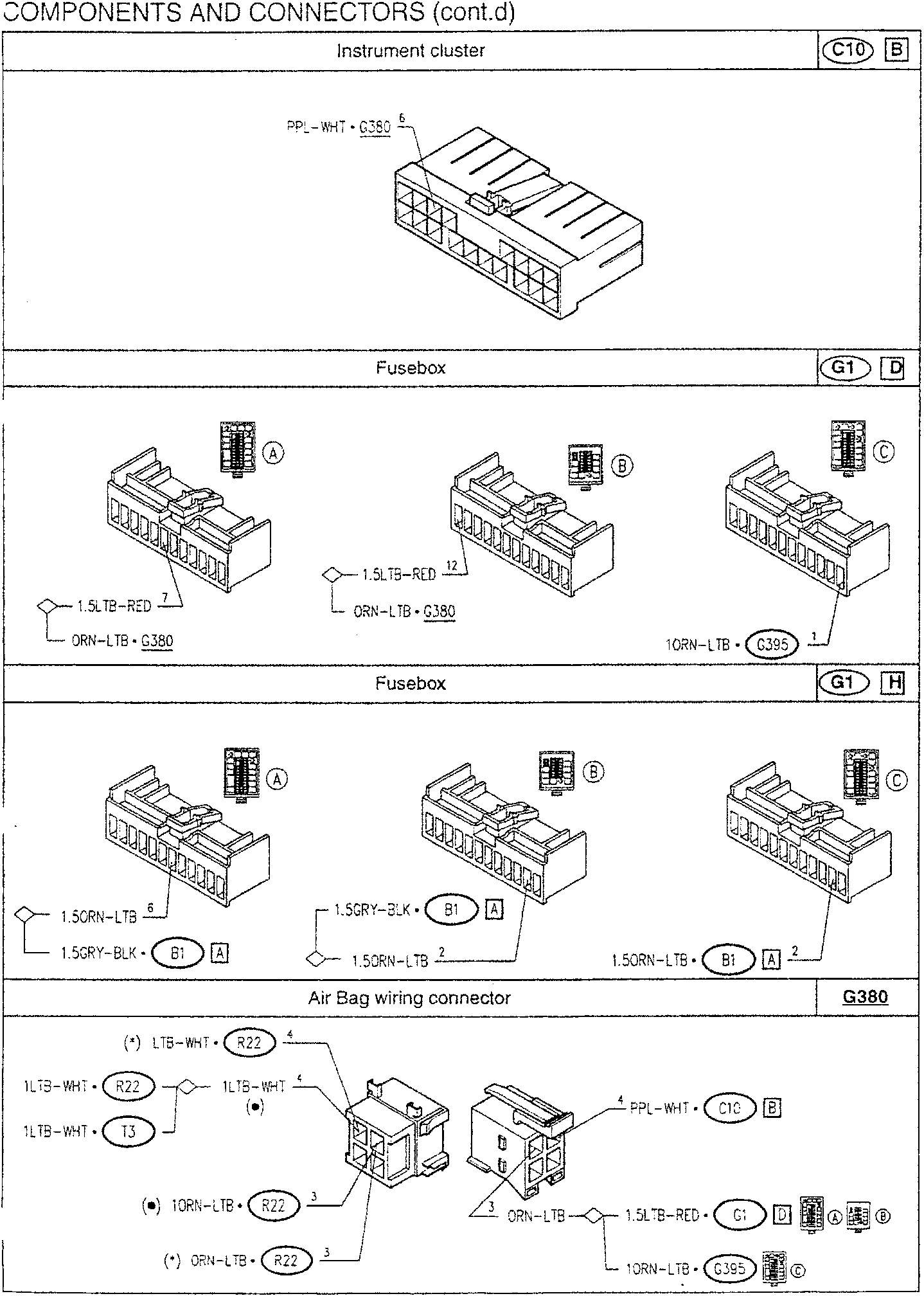

Instrument cluster	C10 B
	PPL-WHT • G380 6

Fusebox	G1 D
	1.5LTB-RED 7 ORN-LTB • G380
1.5LTB-RED 12 ORN-LTB • G380	10RN-LTB • G395 1

Fusebox	G1 H
	1.5ORN-LTB 6 1.5GRY-BLK • B1 A
1.5GRY-BLK • B1 A	1.5ORN-LTB • B1 A 2

Air Bag wiring connector	G380
	(*) LT5-WHT • R22 4 1LT3-WHT • R22 1LTB-WHT • T3
10RN-LTB • R22 3	PPL-WHT • C10 B 4
ORN-LTB 3 1.5LTB-RED • G1 D A B	10RN-LTB • G395 C

(*) BECKER PA49300000012

(*) TRW

01 Diagnostics
