COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Airbag › COMPONENTS AND CONNECTORS (cont.d)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

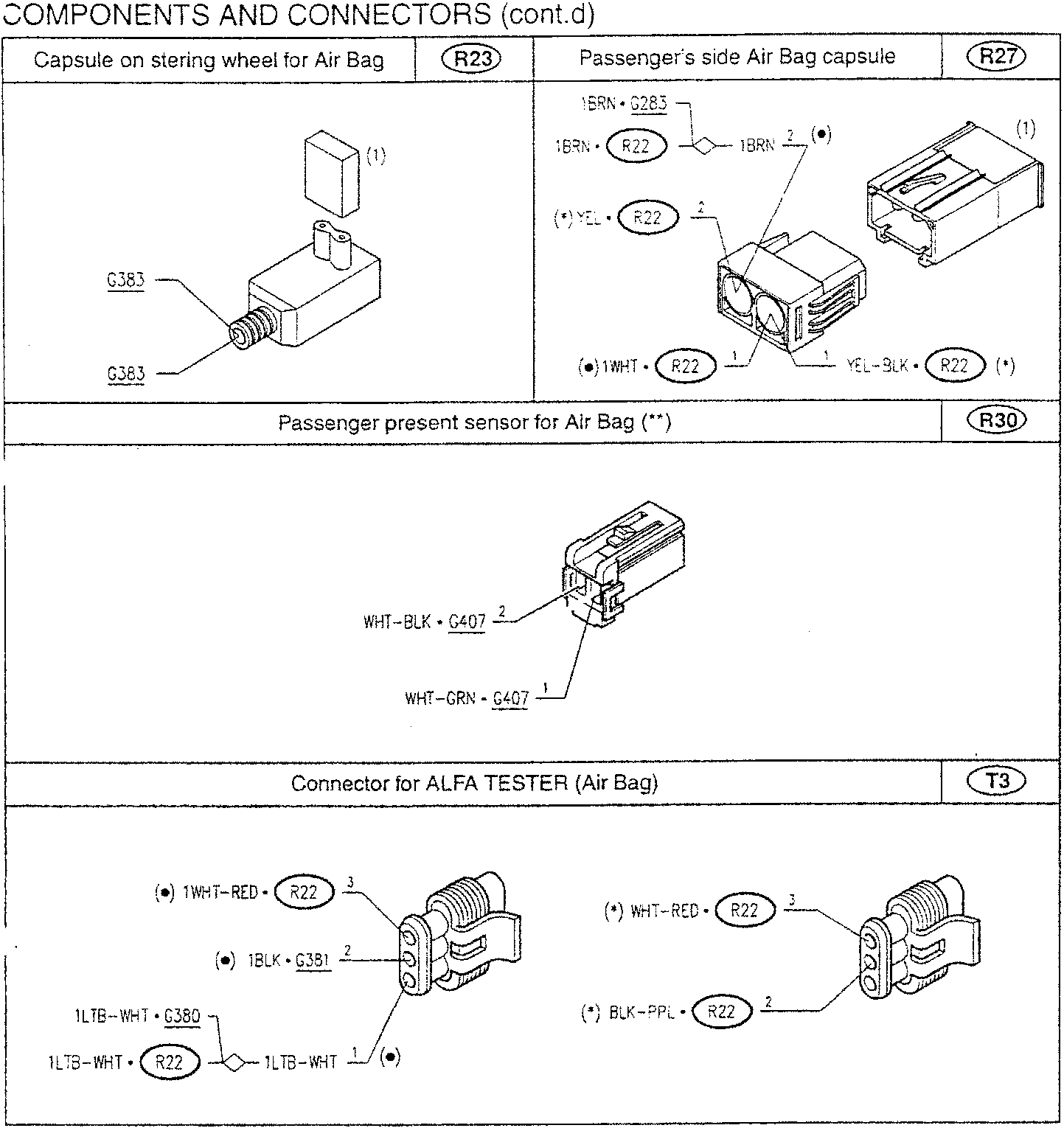

Capsule on steering wheel for Air Bag	R23	Passenger's side Air Bag capsule	R27
	R23		R27
				1BRN • G283	1BRN • R22	(*) YEL • R22	(*) 1WHT • R22	YEL-9LK • R22 (*)

Passenger present sensor for Air Bag (**)

Connector for ALFA TESTER (Air Bag)

(•) BECKER

(*) TRW

(1) dummy resistance

(**) only present up to June '99

01 Diagnostics
