145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

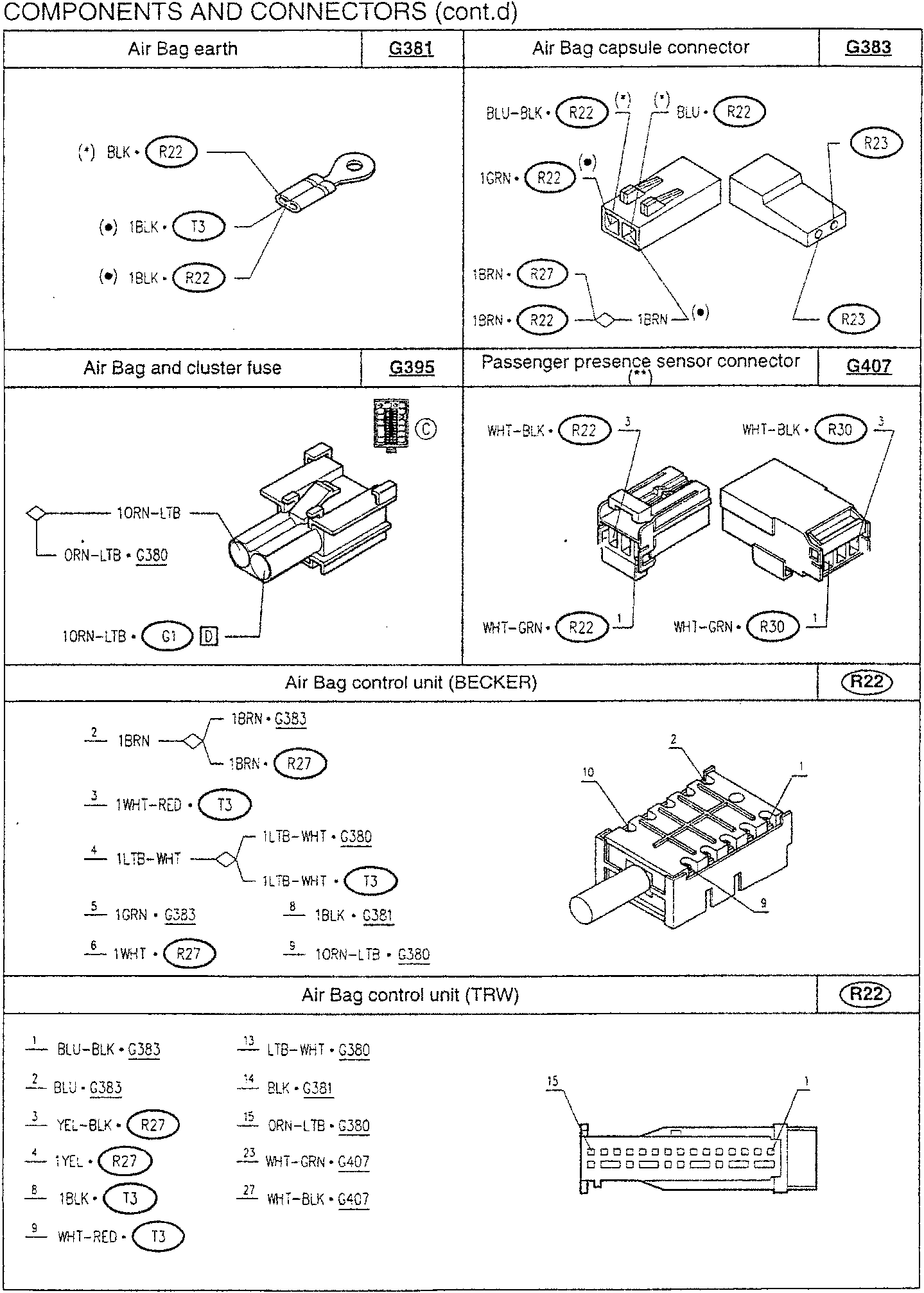

COMPONENTS AND CONNECTORS (cont.d)

Air Bag control unit (BECKER)

• Air Bag earth – G381
• Air Bag capsule connector – G383
• Air Bag and cluster fuse – G395
• Passenger presence sensor connector – G407

(•) BECKER

(*) TRW

(**) only present up to June '99
