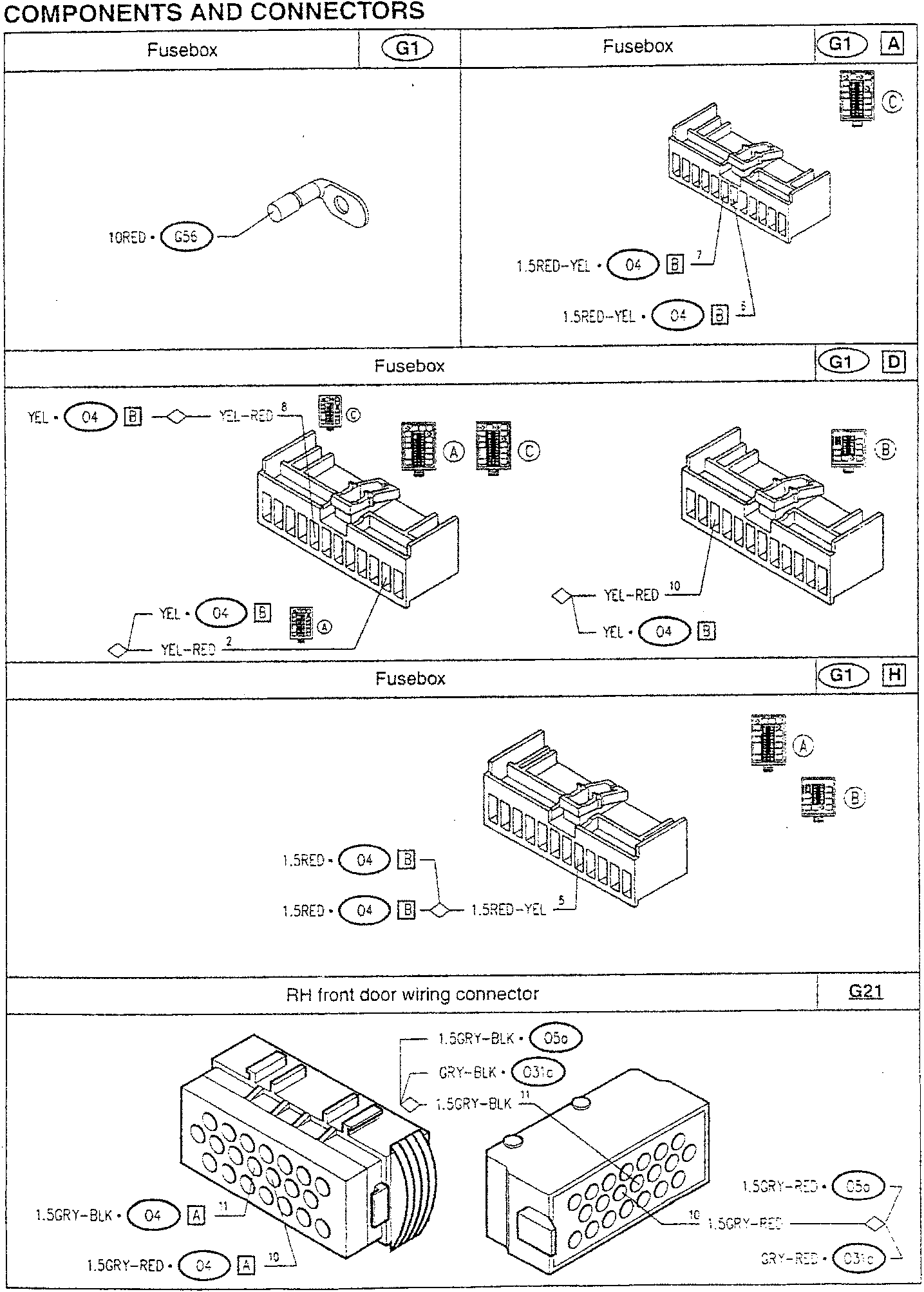

COMPONENTS AND CONNECTORS

Fusebox	G1	Fusebox	G1 A
10RED • G56		1.5RED-YEL • 04 B 7	1.5RED-YEL • 04 B 6

Fusebox	G1 D
YEL • 04 B — YEL-RED 8	YEL-RED 10
YEL • 04 5	YEL • 04 B

Fusebox	G1 H
1.5RED • 04 B — 1.5RED-YEL 5	1.5RED • 04 B

RH front door wiring connector	G21
1.5GRY-BLK • 04 A 11	1.5GRY-RED • 04 A 10
1.5GRY-BLK • 05c	1.5GRY-RED • 05c
GRY-BLK • 031c	GRY-RED • 031c
