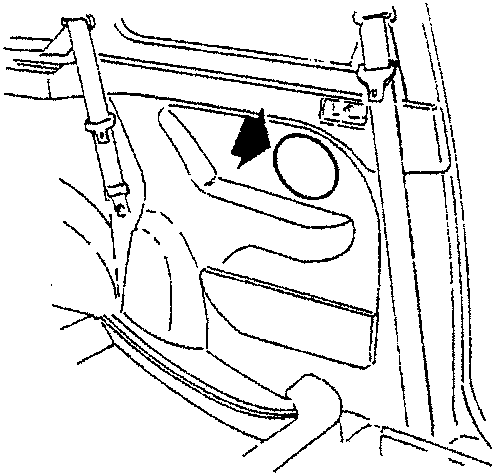

Rear speaker O5c - O5b

SPECIFICATIONS
Passband	105 ÷ 20000 Hz
Resonance frequency	105 ± 22 Hz
Nominal impedance	4 ± 20% Ω
Induction	1 ± 7% T
RMS power (DIN 45573)	20 W
Weight	375 ± 5% g.
ø of speaker	130 mm
Type of tweeter	PIEZO

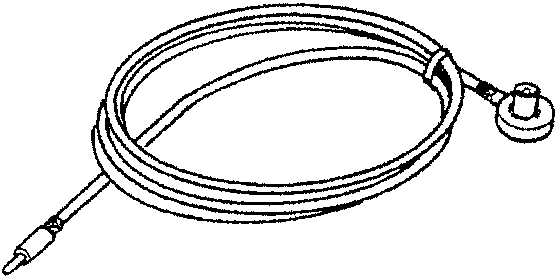

Aerial coaxial cable G65

SPECIFICATIONS
Total resistance (between plug and socket screens)	< 95 mΩ
Internal conductor resistance	≤ 2.2 Ω
Total capacity (measured on plug at 1 MHz)	103 ± 15% pF

01 Diagnostics
