145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

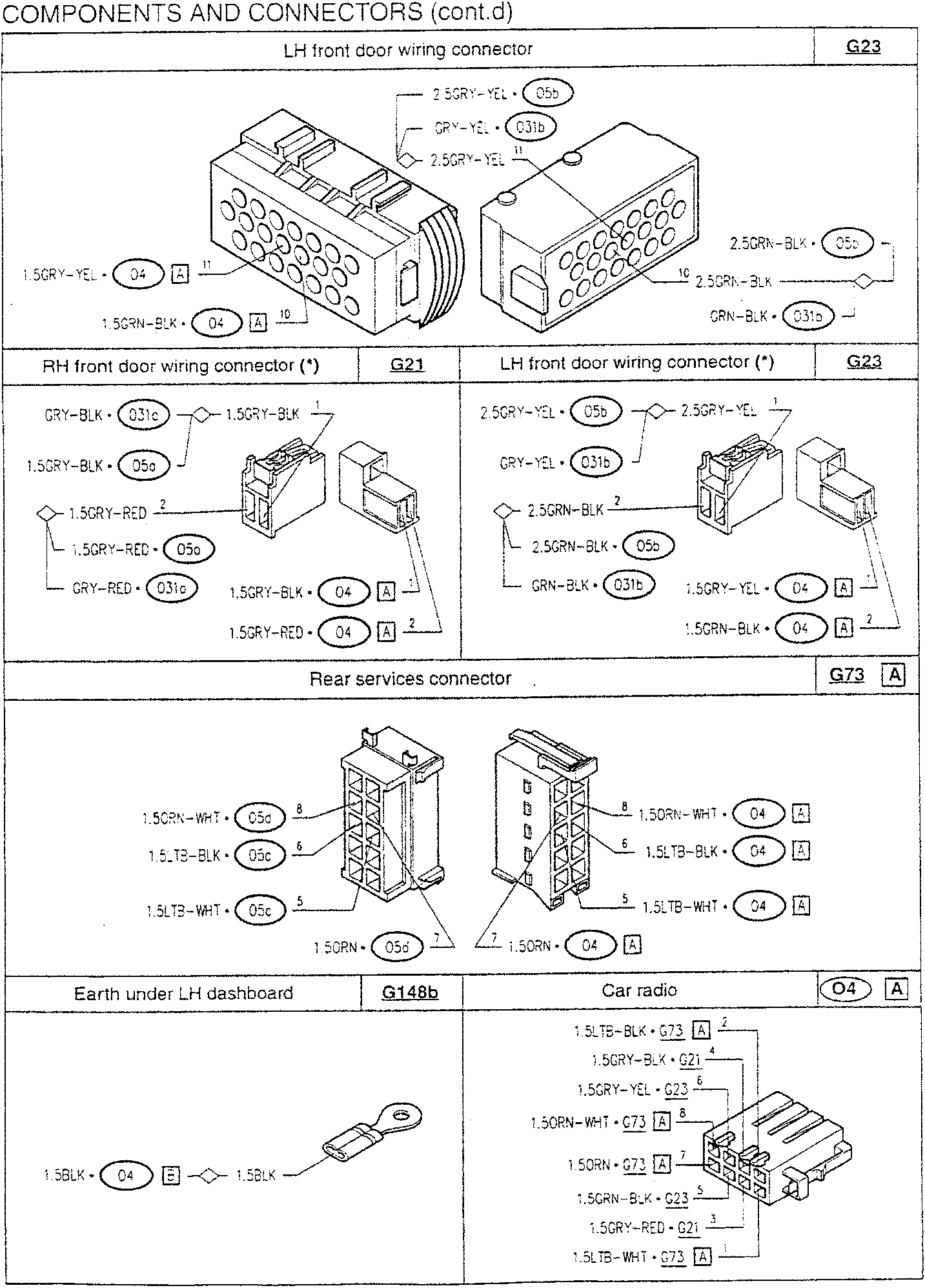

COMPONENTS AND CONNECTORS (cont.d)

LH front door wiring connector	G23
	2.5GRN-BLK • 05b 2.5GRN-BLK • 03b

RH front door wiring connector (*)	G21	LH front door wiring connector (*)	G23
GRY-BLK • 031c 1.5GRY-BLK • 05a 1.5GRY-RED • 05a GRY-RED • 031g	1.5GRY-BLK • 04 A 1 1.5GRY-RED • 04 A 2	2.5GRY-YEL • 05b GRY-YEL • 031b 2.5GRN-BLK • 05b GRN-BLK • 031b	1.5GRY-YEL • 04 A 1 1.5GRN-BLK • 04 A 2

Rear services connector	G73 A
	1.5GRN-WHT • 04 A 8 1.5LTB-BLK • 04 A 6 1.5LTB-WHT • 04 A 5

Earth under LH dashboard	G148b	Car radio	O4 A
	1.5BLK • 04 B 1.5BLK		1.5LTB-BLK • G73 A 2 1.5GRY-BLK • G21 4 1.5GRY-YEL • G23 6 1.5ORN-WHT • G73 A 8 1.5ORN • G73 A 7 1.5GRN-BLK • G23 5 1.5GRY-RED • G21 3 1.5LTB-WHT • G73 A 1

(*) variant for cars without power windows and central door lock/antitheft device
