145 electrical system diagnosisFront speaker O5a - O5b

Front speaker O5a - O5b

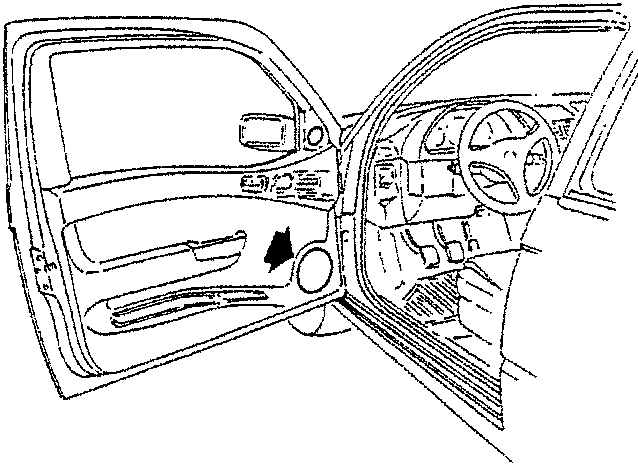

Diagram showing front door with speaker location indicated by arrow
SPECIFICATIONS
Passband70 ÷ 12000 Hz
Resonance frequency70 ± 12 Hz
Nominal impedance4 ± 20% Ω
Induction0.72 ± 7% T
RMS Power (DIN 45573)20 W
Weight430 ± 10% g.
ø of speaker165 mm

Front Tweeter O31a - O31b

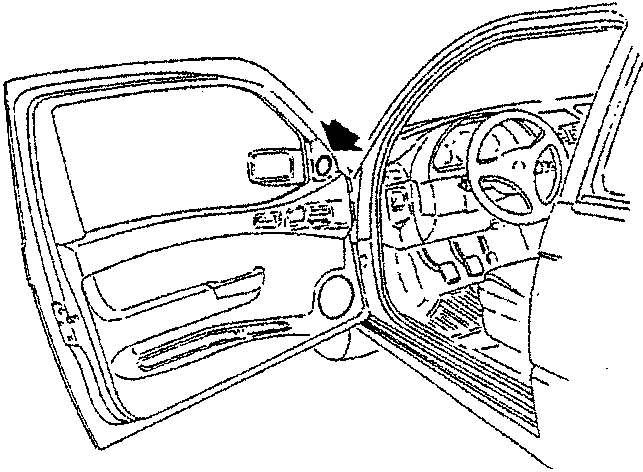

Diagram showing front door with tweeter location indicated by arrow
SPECIFICATIONS
Passband5000 ÷ 20000 Hz
Resonance frequency2500 ± 600 Hz
Nominal impedance4 ± 20% Ω
Induction1.06 ± 7% T
RMS power (DIN 45573)30 W
Weight55 ± 15% g.
Type of crossover3.3 µF
Crossover frequency5000 Hz
Type of tweeterDOME
