145 electrical system diagnosisComponents and Connectors

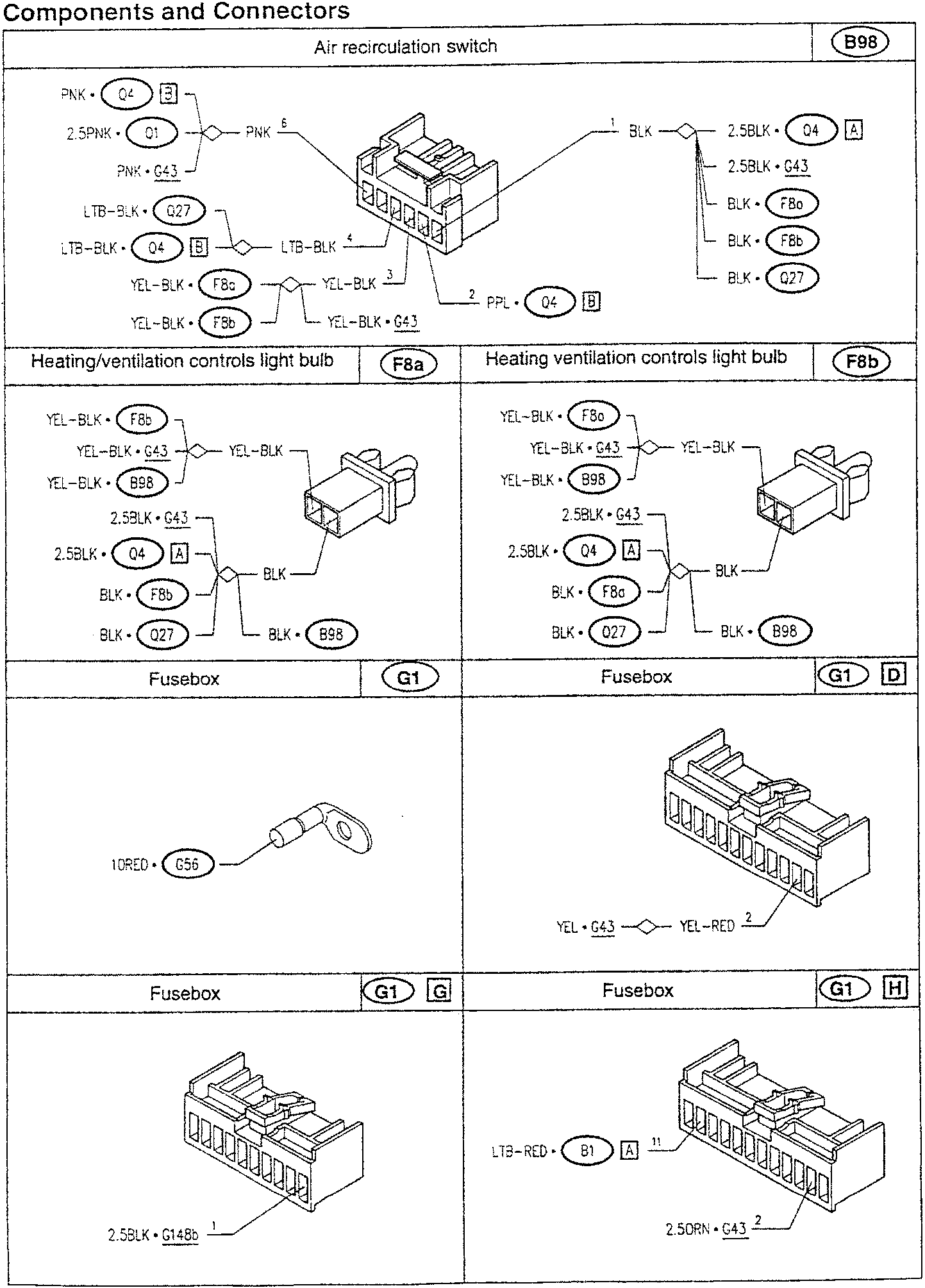

Components and Connectors

Air recirculation switch		B98
PINK • Q4 B	2.5PINK • Q1	PINK 6
PINK • G43	LTB-BLK • Q27	LTB-BLK 4
LTB-BLK • Q4 B	YEL-BLK • F8a	YEL-BLK 3
YEL-BLK • F8b	YEL-BLK • G43	2 PPL • Q4 B
2.5BLK • Q4 A	BLK • F8a	2.5BLK • Q4 A
2.5BLK • G43	BLK • F8b	2.5BLK • G43
BLK • Q27	BLK • F8a	BLK • Q27

Heating/ventilation controls light bulb		F8a	Heating ventilation controls light bulb	F8b
YEL-BLK • F8b	YEL-BLK • G43	YEL-BLK	YEL-BLK • F8a	YEL-BLK • G43
YEL-BLK • B98	2.5BLK • G43	BLK • F8b	YEL-BLK • B98	2.5BLK • G43
2.5BLK • Q4 A	BLK • F8b	BLK • B96	2.5BLK • Q4 A	BLK • F8a
BLK • Q27	BLK • B96	BLK • B98	BLK • Q27	BLK • B98

Fusebox	G1	Fusebox	G1 D
10RED • G56	YEL • G43 — YEL-RED 2

Fusebox	G1 G	Fusebox	G1 H
2.5BLK • G148b 1	LTB-RED • B1 A 11	2.5ORN • G43 2
