Location of components
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Heater › Location of components
145 electrical system diagnosisLocation of components

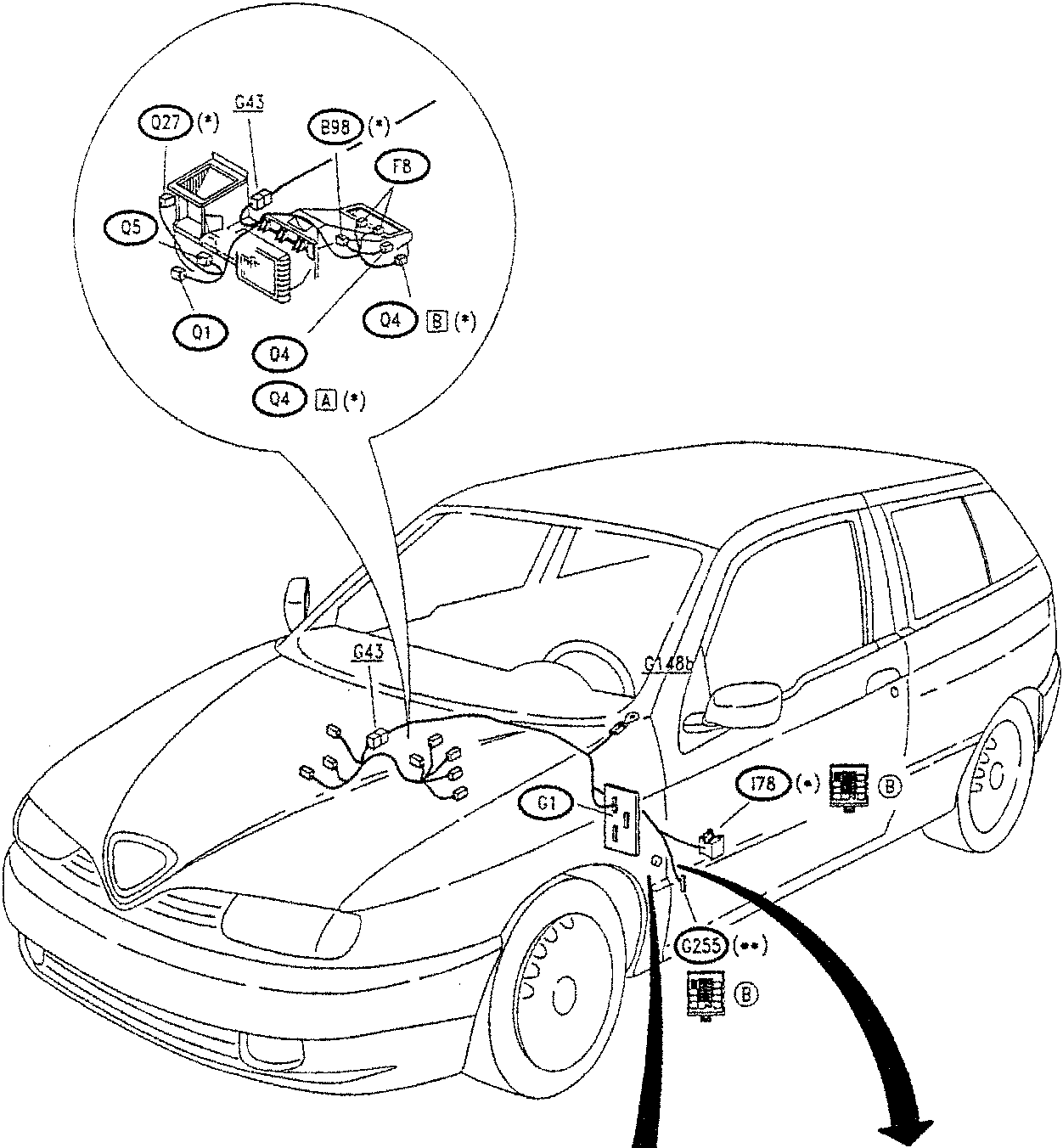

Location of components – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
LOCATION OF COMPONENTS
(•) yellow base
(••) green fuseholder
(* ) variant for versions with recirculation operated electrically
