Components and Connectors (cont.d)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Heater › Components and Connectors (cont.d)
‹ Prev Components and Connectors (cont.d)Next › ELECTRICALLY OPERATED RECIRCULATION (only for certain Markets)
145 electrical system diagnosisComponents and Connectors (cont.d)
Components and Connectors (cont.d)

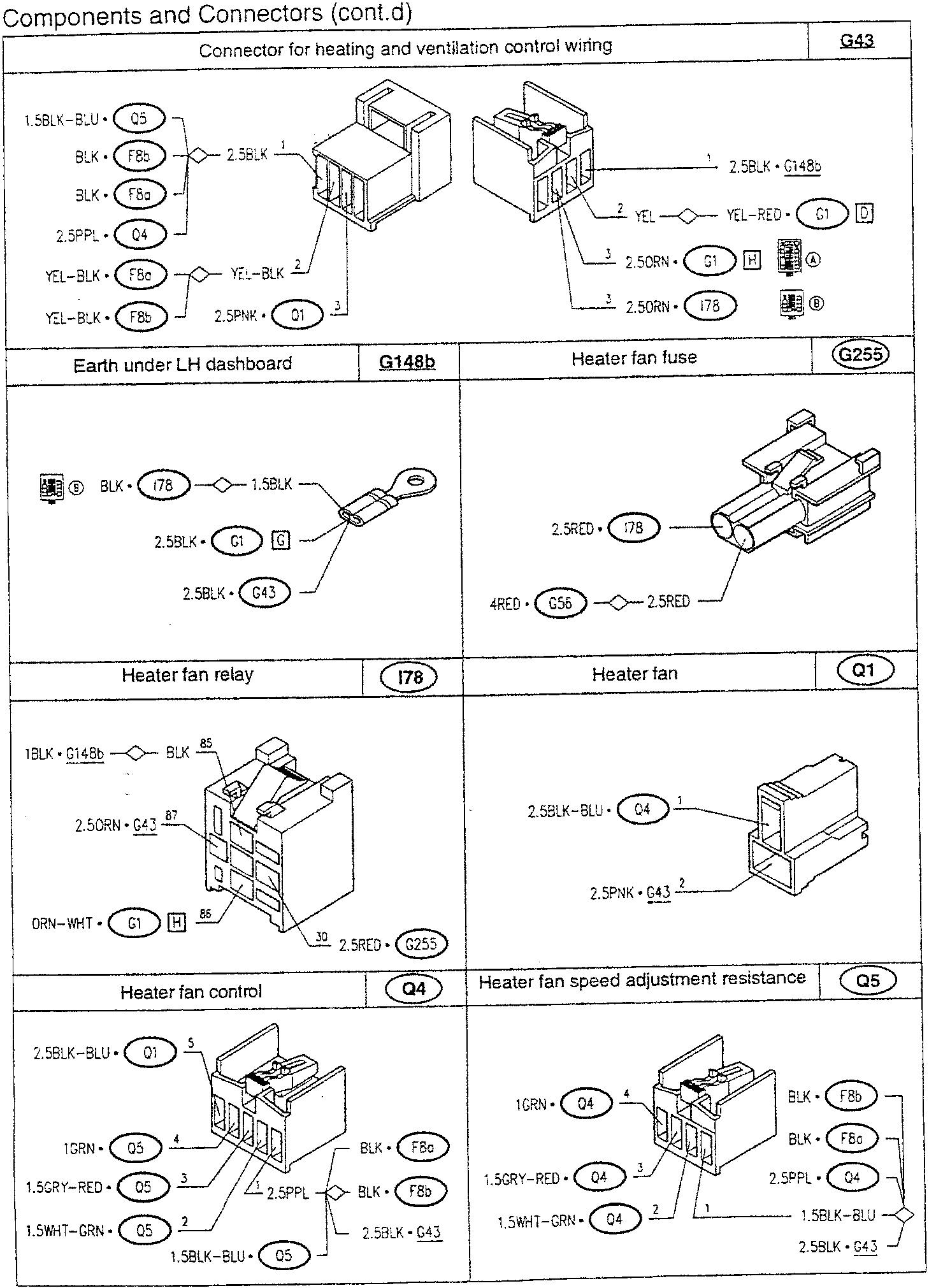

| Connector for heating and ventilation control wiring | G43 |
|---|---|
|
| Earth under LH dashboard | G148b | Heater fan fuse | G255 |
|---|---|---|---|
| Heater fan relay | I78 | Heater fan | Q1 |
|---|---|---|---|
| Heater fan control | Q4 | Heater fan speed adjustment resistance | Q5 |
|---|---|---|---|
