Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)02 · 146 electrical system diagnosis
02 · Diagnostics

Direction indicators

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Location of earths › Direction indicators
146 electrical system diagnosisDirection indicators · page 1 of 3

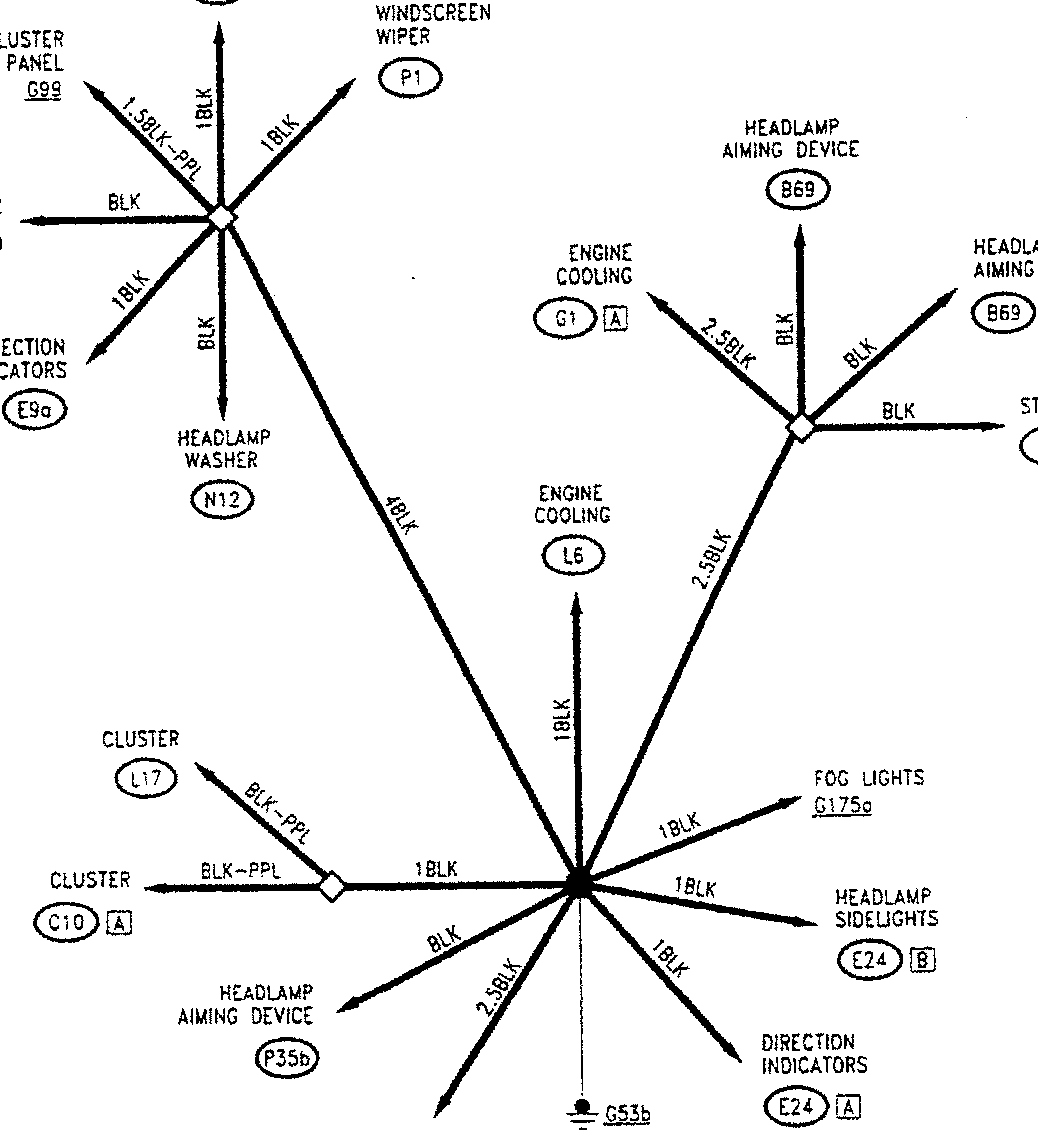

Diagram showing electrical earth connections for G53b Boxer versions, with labeled components and wire colors.

DIRECTION INDICATORS

CLUSTER CHECK PANEL G99

CLUSTER H17

DIRECTION INDICATORS E9a

WINDSCREEN WIPER P1

HEADLAMP AIMING DEVICE B69

ENGINE COOLING G1 A

ENGINE COOLING L6

FOG LIGHTS G175a

HEADLAMP SIDELIGHTS E24 B

DIRECTION INDICATORS E24 A

STARTING 110 (*)

ENGINE COOLING 11

(*) Versions without ALFA ROMEO CODE
