146 electrical system diagnosisHeated seats · page 1 of 2

Heated seats – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

HEATED SEATS

G106

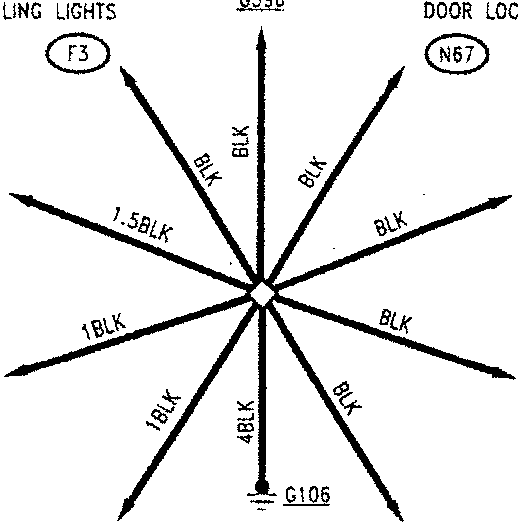

Diagram showing connections for G106 with various components like ceiling lights, telepass, antitheft device, door locking system, heated seats, and doors open. Wires are labeled with colors such as BLK, 1BLK, 1.5BLK, 4BLK, and connectors are marked with codes like F3, N67, D31, H6, H5, G355a, G355b, G106.

G109 (Boxer 1.3 version)

IAW S31 BLU BLK G109

G143 (Boxer versions)

POWER SUPPLY A1 10BLK G143

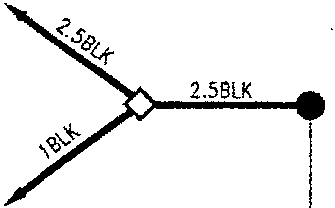

Diagram showing connections for G143 with ABS components. Wires are labeled 2.5BLK and 1BLK, and connectors are marked with codes like G272, T8, G143.
