146 electrical system diagnosisChecking Components
Checking Components

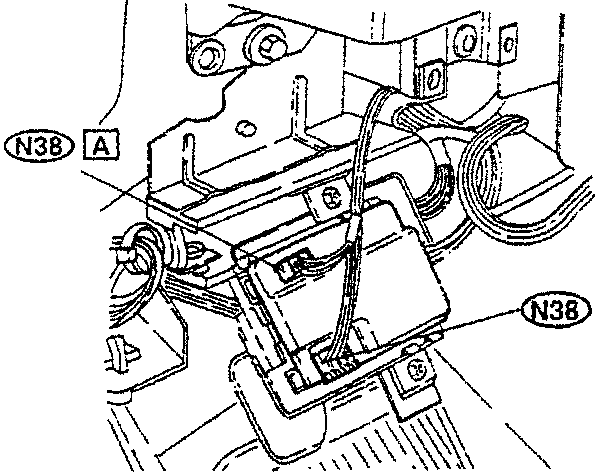

Power window control unit N38
Check device:
test A (only for fusebox "A")

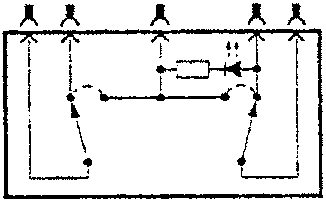

Power window switches B21a B21b B22 B23 B24
SPECIFICATIONS
Check operation:
at rest: continuity between pin 3 and 1 and between pin 2 and 5, a.c. between the other pins
operating pushbutton for closing: continuity between pin 4 and 1; a.c. between the other pins
operating pushbutton for opening: continuity between pin 4 and 2, a.c. between the other pins
