Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)02 · 146 electrical system diagnosis
02 · Diagnostics

Components and Connectors (cont.d)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Power Windows › Components and Connectors (cont.d)
146 electrical system diagnosisComponents and Connectors (cont.d)

Components and Connectors (cont.d) – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

Components and Connectors (cont.d)

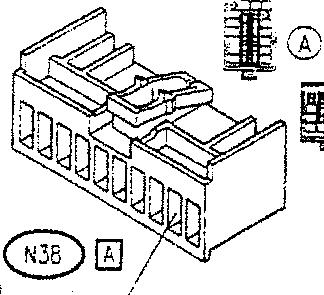

Fusebox diagram showing fuse F1, connector N38, and wire colors 10RN-WHT, 10RN-WHT, ORN-WHT connected to terminals A and B.

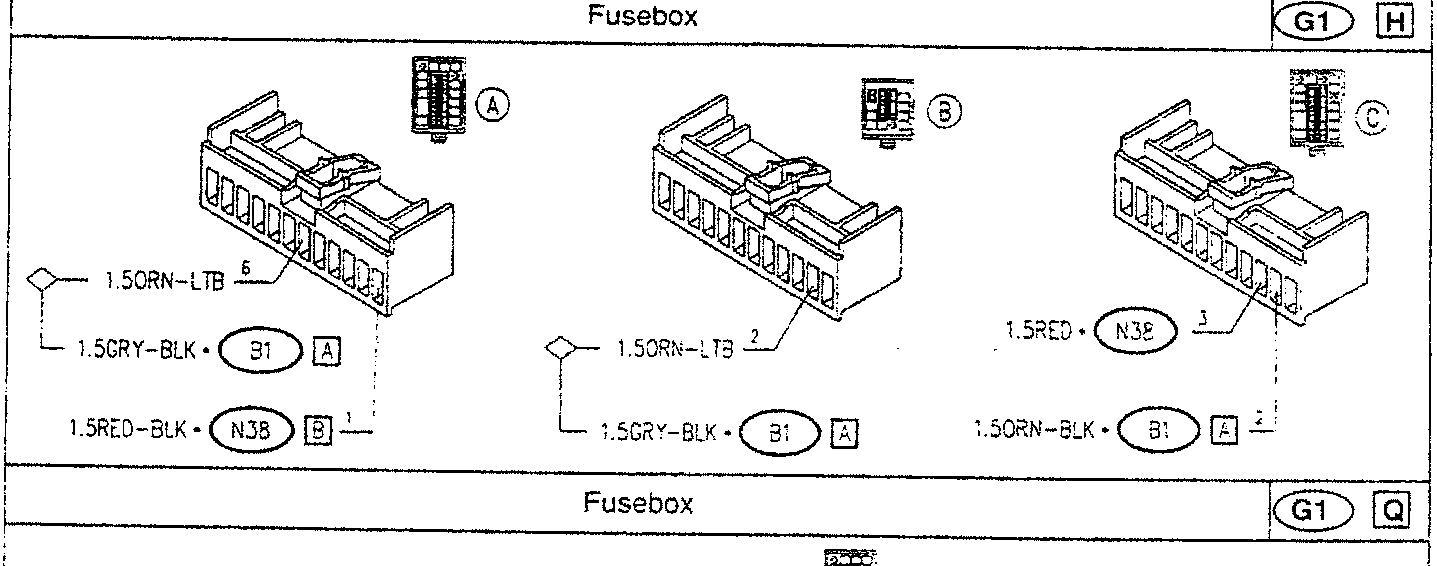

Fusebox diagram showing three fuse positions labeled A, B, C with wire color codes: 1.5ORN-LTB, 1.5CRY-BLK, 1.5RED-BLK for position A; 1.5ORN-LTB, 1.5CRY-BLK for position B; 1.5RED, 1.5ORN-BLK for position C.

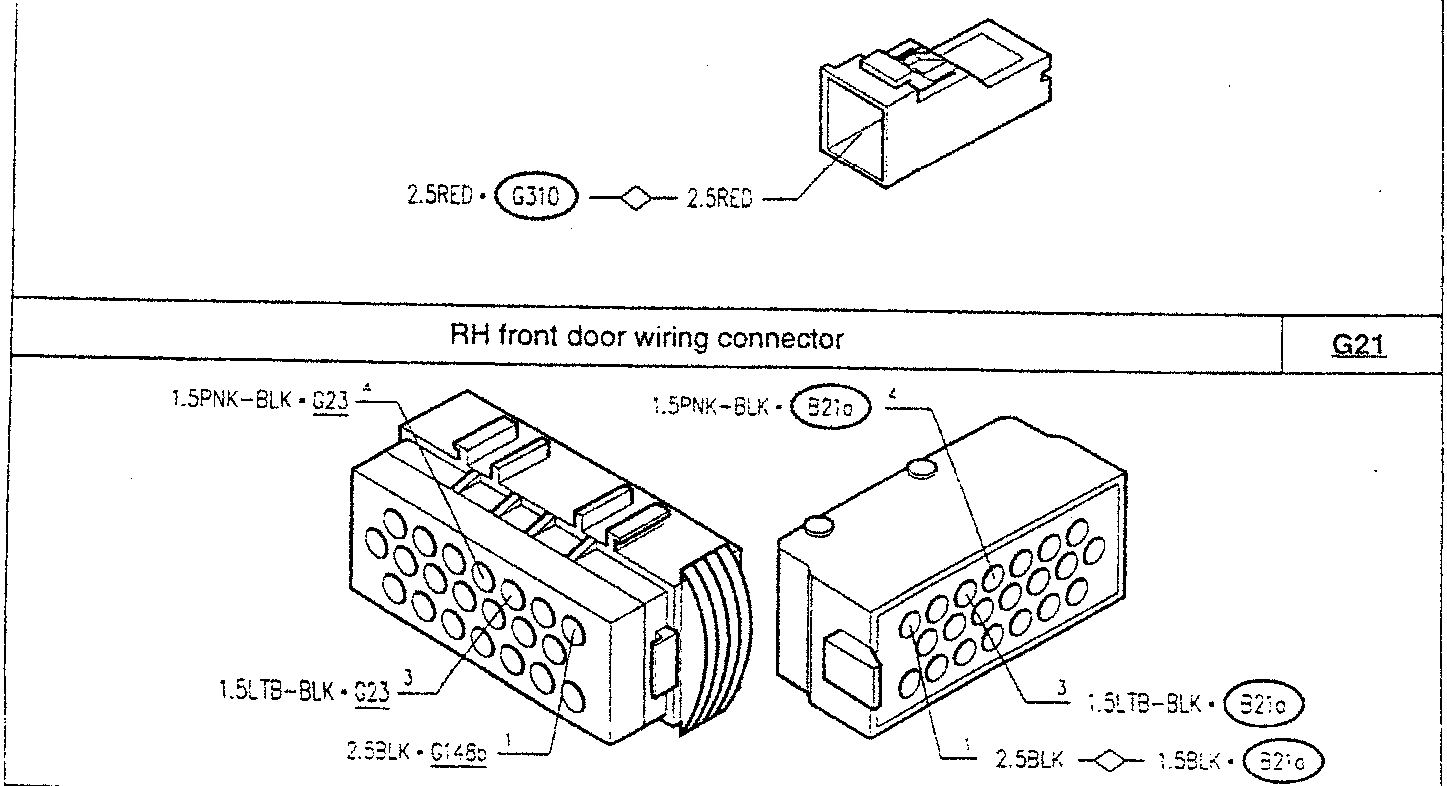

Fusebox diagram showing fuse G310 connected to 2.5RED wire and RH front door wiring connector G21 with wire color codes: 1.5PNK-BLK, 1.5LTB-BLK, 2.5BLK for one side; 1.5PNK-BLK, 1.5LTB-9LK, 2.5BLK, 1.5BLK for the other side.
