Components and Connectors
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Power Windows › Components and Connectors
146 electrical system diagnosisComponents and Connectors

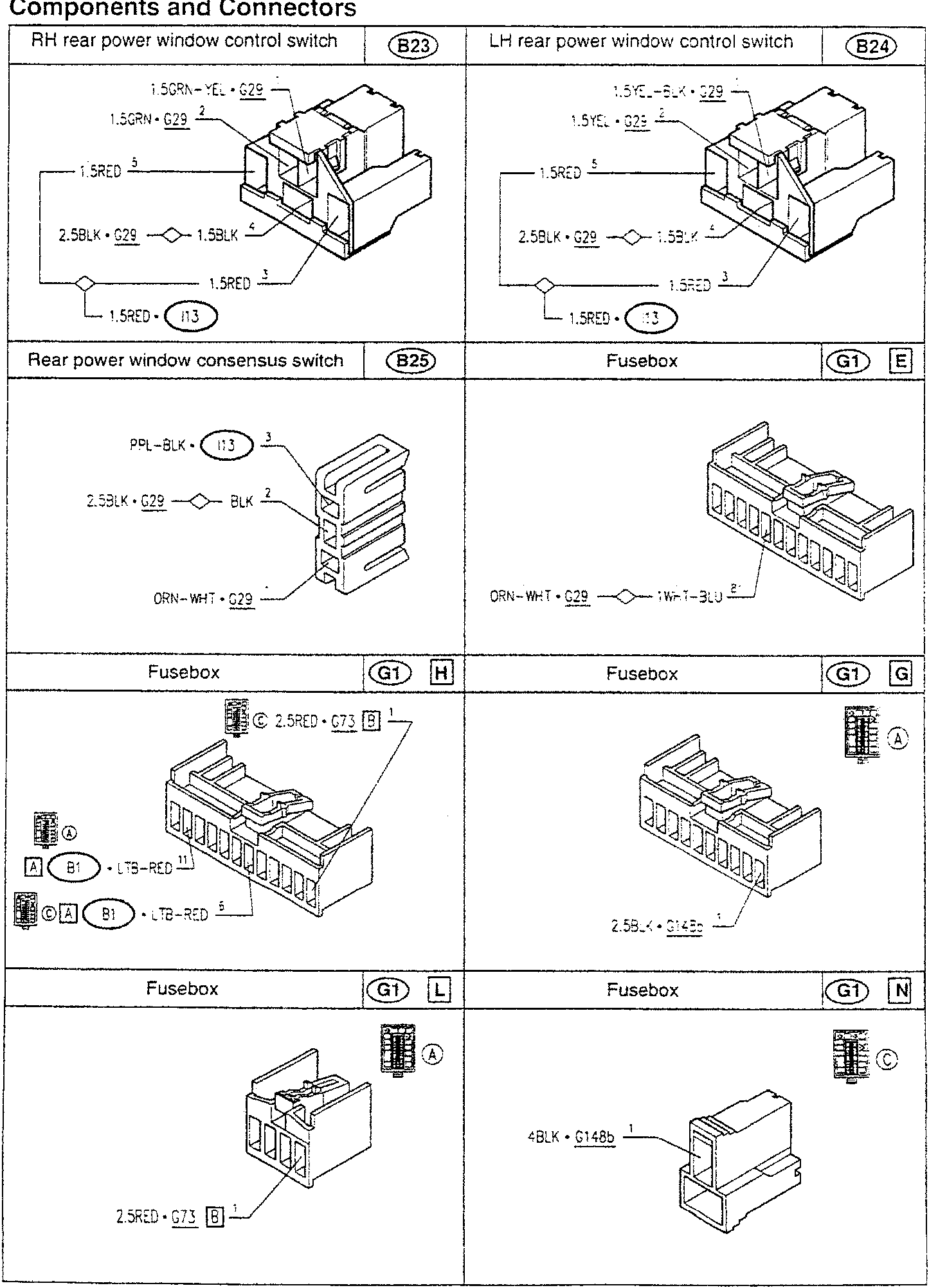

Components and Connectors
| RH rear power window control switch | B23 | LH rear power window control switch | B24 |
|---|---|---|---|
|
| Rear power window consensus switch | B25 | Fusebox | G1 E |
|---|---|---|---|
| Fusebox | G1 H | Fusebox | G1 G |
|---|---|---|---|
| Fusebox | G1 L | Fusebox | G1 N |
|---|---|---|---|
