Front power windows
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Power Windows › Front power windows
146 electrical system diagnosisFront power windows

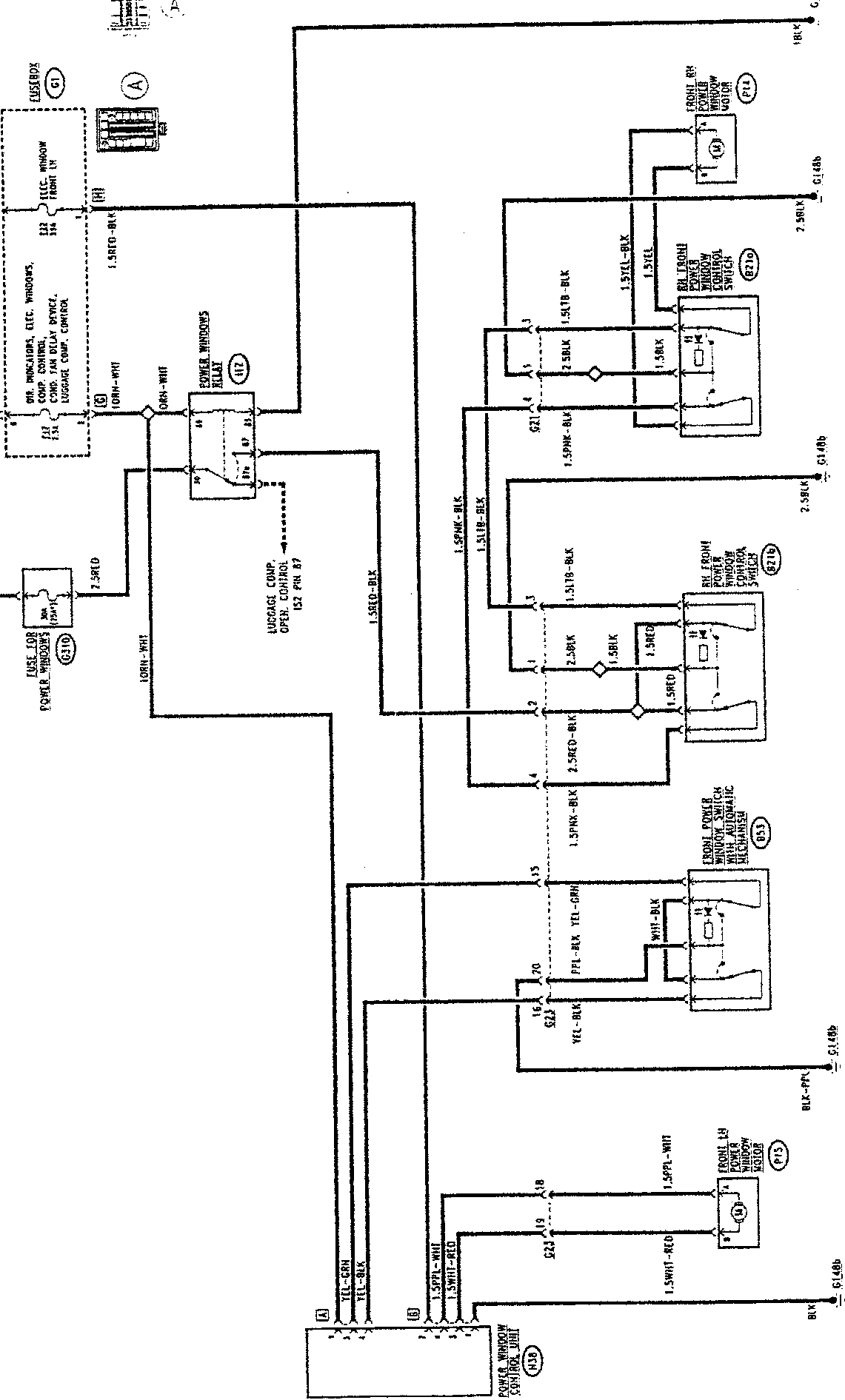

Front power windows – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
FRONT POWER WINDOWS
Wiring diagram
