146 bodyworkParcel shelf

PARCEL SHELF

REMOVAL/REFITTING

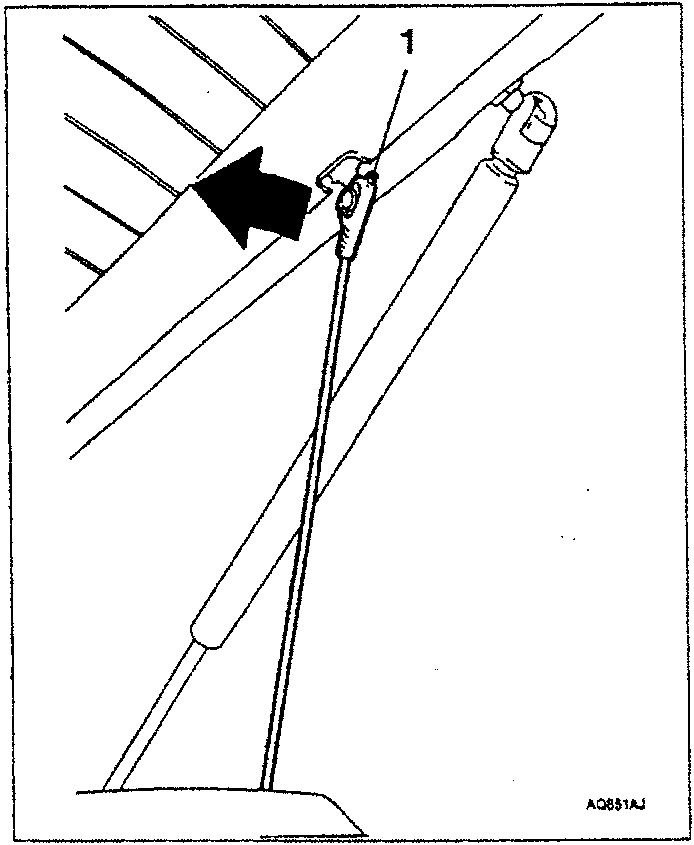

  1. Release the parcel shelf lifting cords.
Parcel shelf lifting cords being released

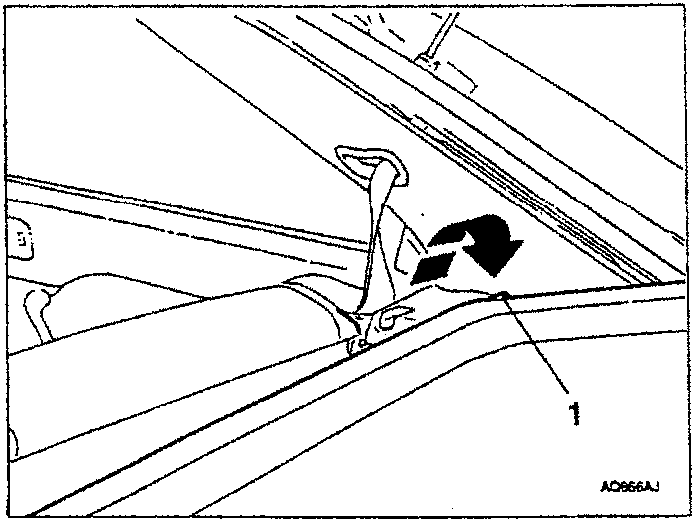

  1. Release the parcel shelf side fasteners, then remove it.
Parcel shelf side fasteners being released

SIDE PILLAR COVER BRACKETS

REMOVAL/REFITTING

  • Remove the parcel shelf (see specific paragraph).
  • Move the rear seat cushion forwards.

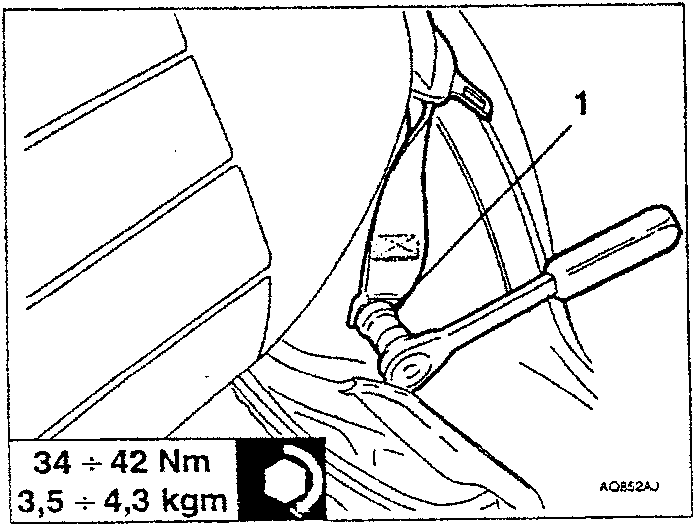

  1. Slacken and remove the lower screw fastening the rear seat belt and release the belt itself.
Lower screw fastening the rear seat belt being removed

34 ÷ 42 Nm
3,5 ÷ 4,3 kgm

INNER LUGGAGE COMPARTMENT TRIM

REMOVAL/REFITTING

  • Remove the lower luggage compartment trim (see specific paragraph).
  • Remove the lower fastenings of the pillar cover side brackets (see specific paragraph).
  • Remove the protective trim (see specific paragraph).

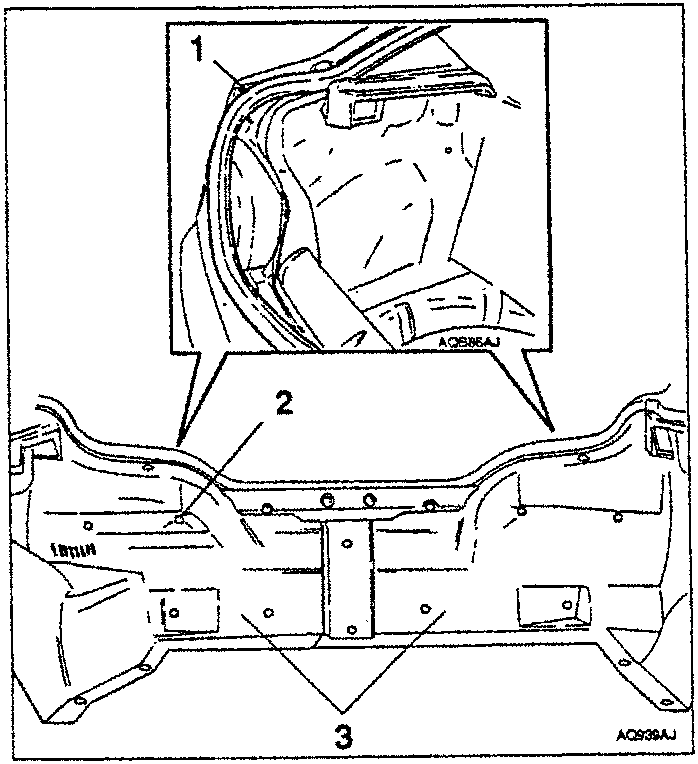

  1. Partially remove the luggage compartment seal.
  2. Using tool 1.823.014.000, release the plastic caps fastening the inner luggage compartment trim.
  3. Remove the luggage compartment inner trim, in the parts.
Inner luggage compartment trim being removed
