146 bodyworkRefitting · page 1 of 2

REFITTING

  • When refitting, reverse the sequence described for removal.
  1. Adjust the position of the bumper acting on the eccentric side guides, always remembering to turn them clockwise to avoid loosening them.

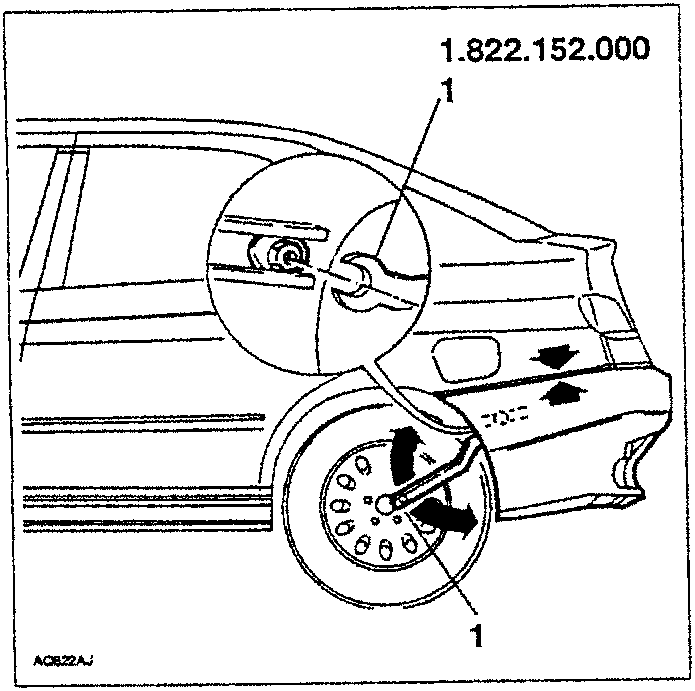

Diagram showing adjustment of bumper on eccentric side guides with tool 1.822.152.000

PASSENGER COMPARTMENT AIR VENT GRILLE

REMOVAL/REFITTING

  • Open the tailgate.
  • Using tool 1.823.014.000, prise the grille and remove it.

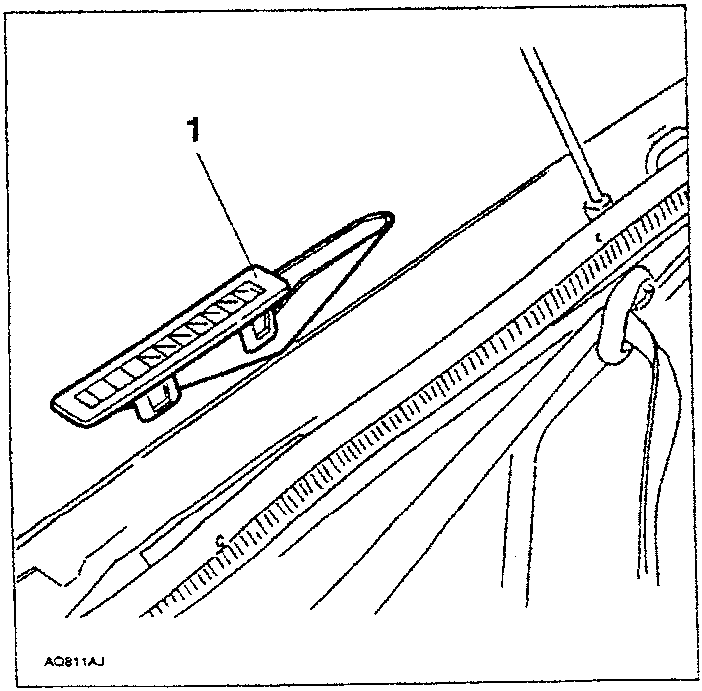

Diagram showing removal of air vent grille with tool 1.823.014.000

REAR SCREEN

REMOVAL

  • Disconnect the battery negative pole (-).
  1. Open the tailgate and release the supports of rear shelf.

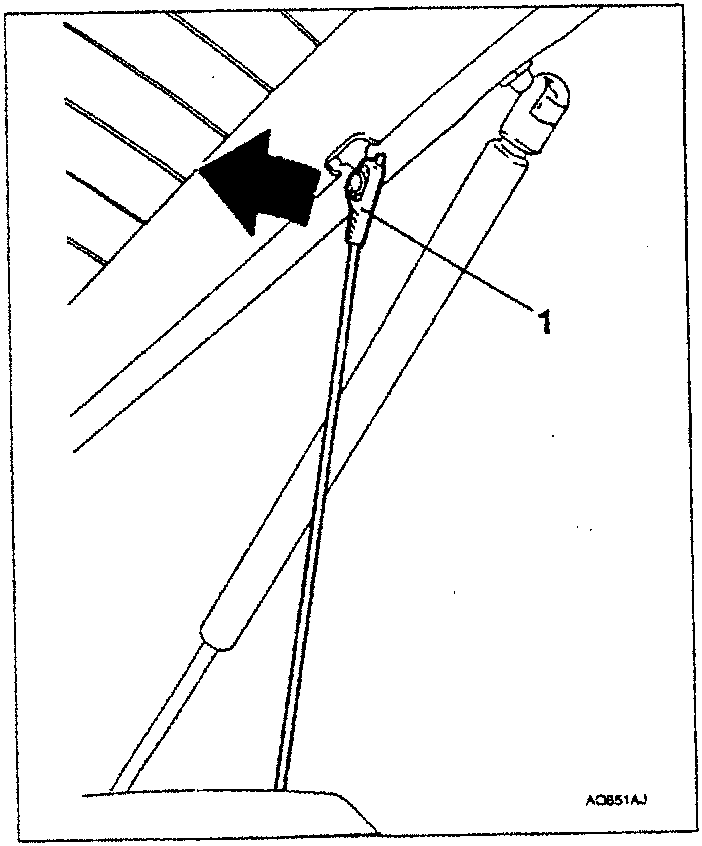

Diagram showing release of rear screen support with tool 1.823.014.000
  1. Using tool 1.823.014.000, release the upper tailgate trim and remove it.

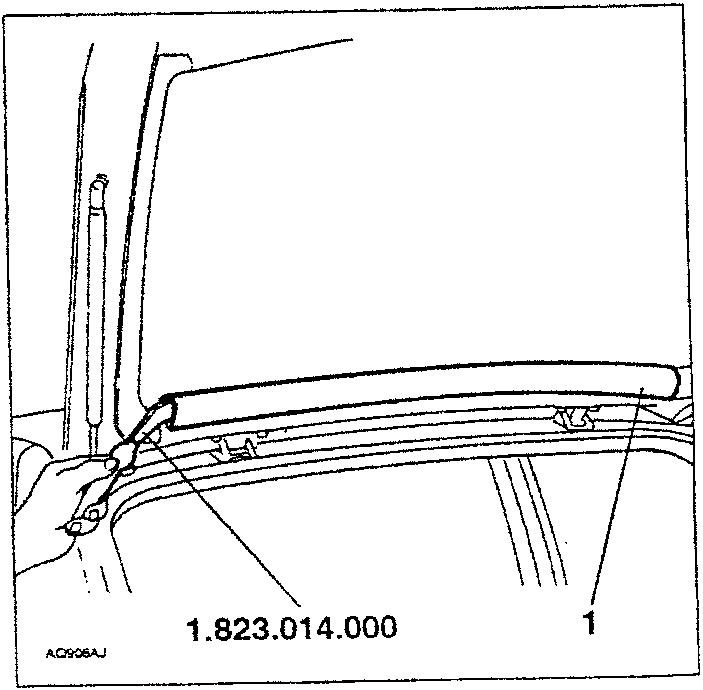

Diagram showing removal of upper tailgate trim with tool 1.823.014.000
