146 bodyworkRefitting · page 2 of 2

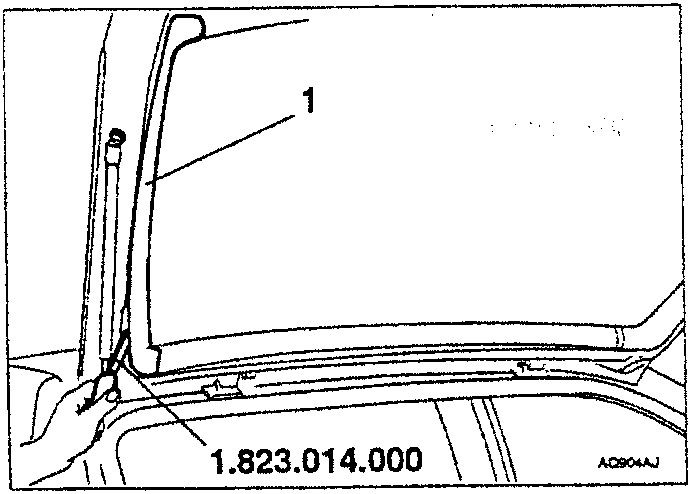

  1. Using tool 1.823.014.000 release the right and left side trims.
Diagram showing tool 1.823.014.000 releasing side trims

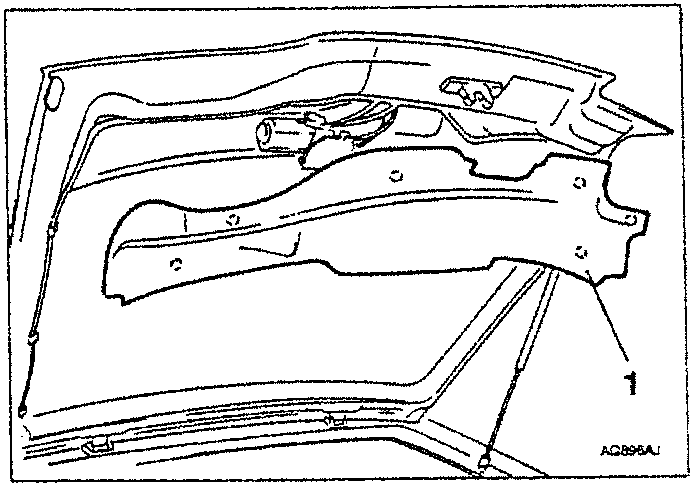

  1. Using tool 1.823.015.000 release the lower tailgate trim from the plastic nails (eight) and remove it.
Diagram showing tool 1.823.015.000 releasing lower tailgate trim

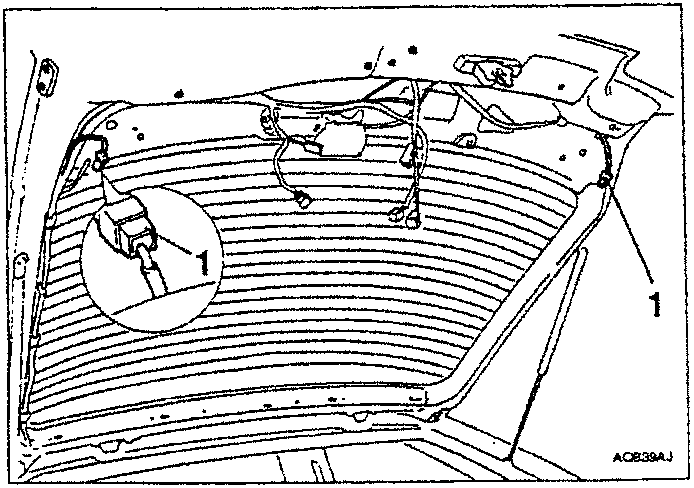

  1. Disconnect the right and left rearscreen heating connectors.
Diagram showing disconnecting rearscreen heating connectors
  1. Lower the tailgate, lift the protection cap and slacken the nut fastening the rearscreen wiper arm.
Diagram showing lowering tailgate and slackening wiper arm nut

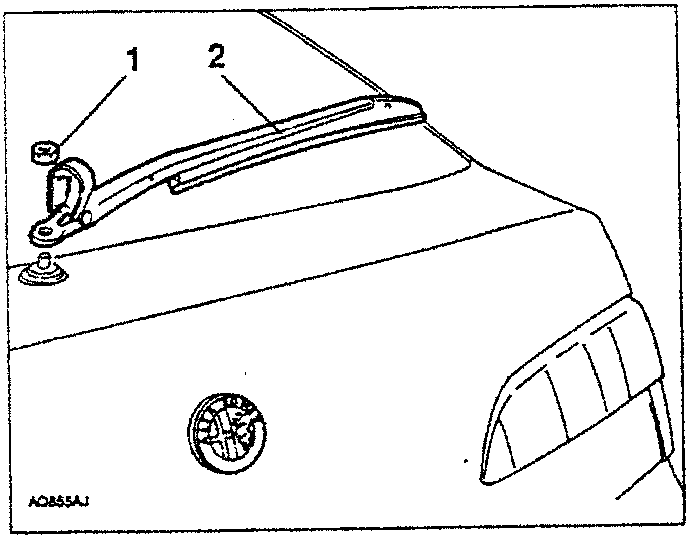

  1. Remove the rearscreen wiper arm.
Diagram showing removal of rearscreen wiper arm

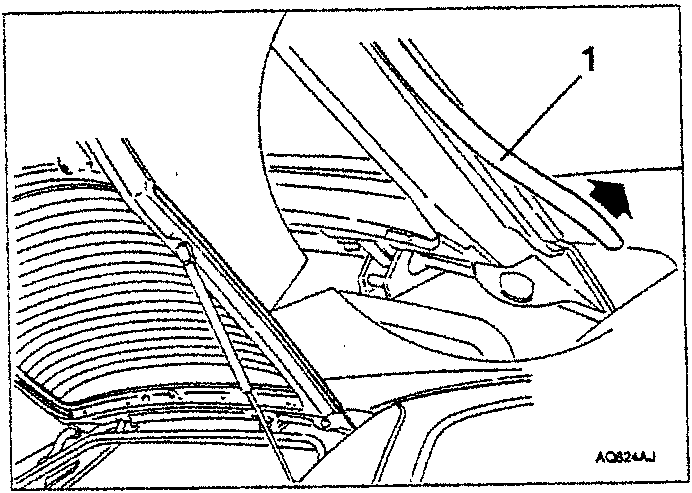

  1. Remove the 2 side seals.

Always replace the side seals with new ones when refitting.

Diagram showing removal of side seals
  1. Protect the side edge of the tailgate on which the pin of the electric cutter blade will rest with adhesive tape.
