Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)04 · 146 bodywork
04 · Body & interior

Outer pillar cover

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
External trim › Outer pillar cover
146 bodyworkOuter pillar cover

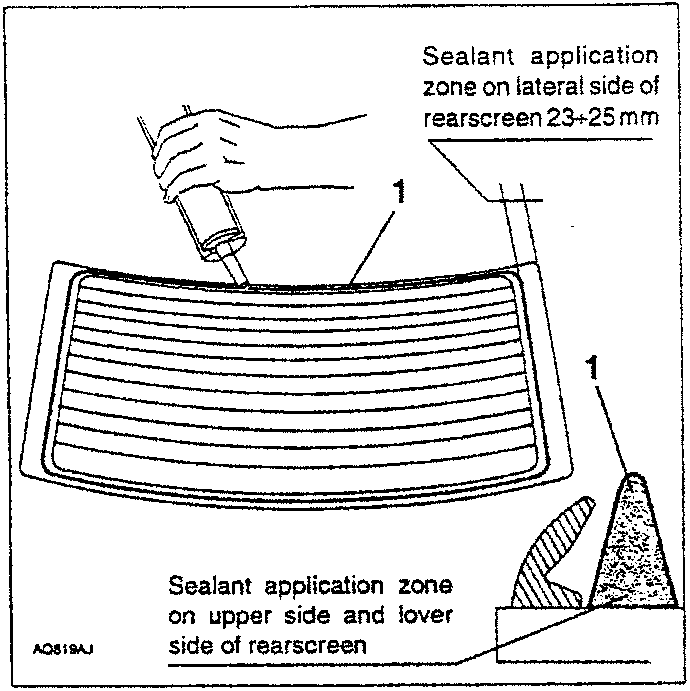

Sealant application zone on lateral side of rearscreen 23÷25 mm

Sealant application zone on lateral side of rearscreen 23÷25 mm and on upper side and lower side of rearscreen

NOTE: use the short or long sealant cartridge (or both) according to necessity.

  • Using the special suction cups, install the rearscreen, centering it in its housing.

F3 Keep the tailgate horizontal to enable correct positioning of the glass even without the guide pegs.

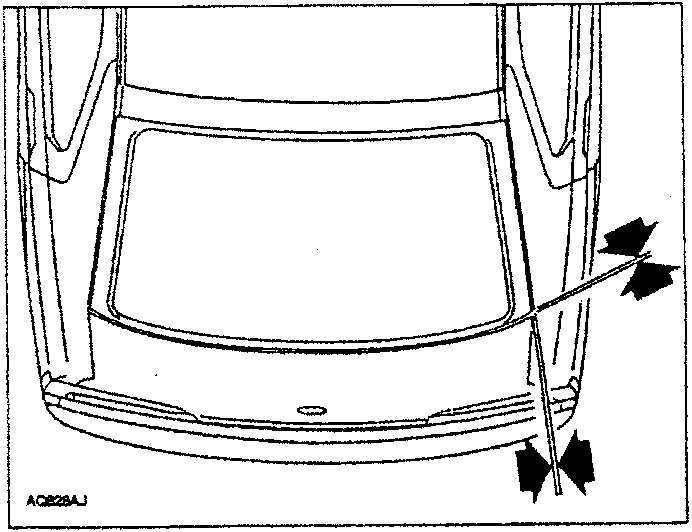

  1. Check that the rearscreen gap and alignments are correct.
  • Exert a light, even pressure along the edge of the rearscreen.
  • Complete refitting operations reversing the sequence followed for removal.

Do not use the car until the sealant has dried completely.

OUTER PILLAR COVER

REMOVAL/REFITTING

  1. Carefully partially move aside the door seals.
  2. Draw the outer pillar cover downwards.
Shows rear windshield wiper motor mounting bracket location
Illustrates rear door hinge removal process for vehicle

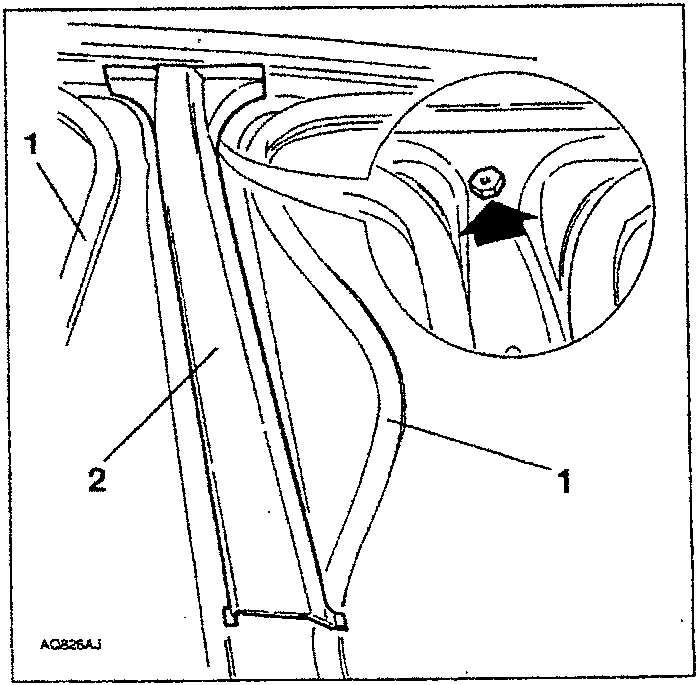

Outer pillar cover guide pin insertion

When refitting make sure that the pillar cover guide pin is correctly inserted.
