Refitting (page 2 of 2)

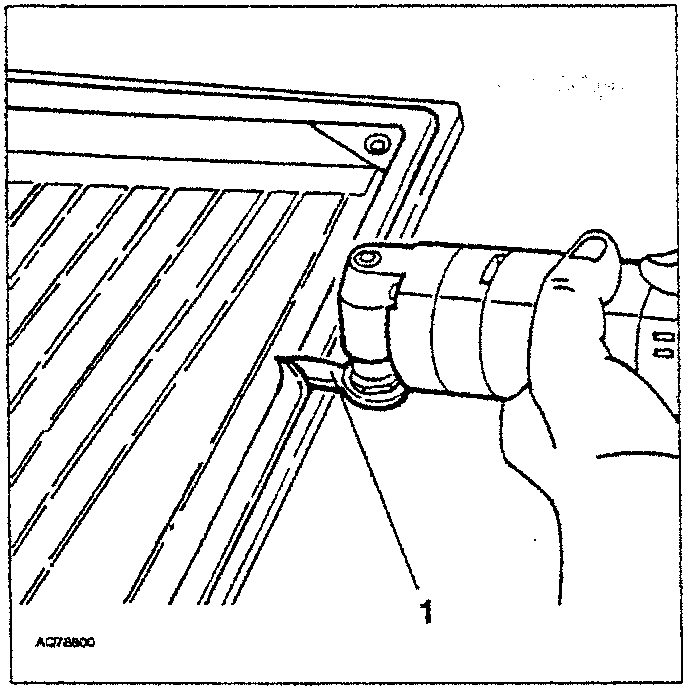

1. If the original rearscreen is to be re-used, remove the residual sealant from the edges of it.

Proceed with the glueing cycle using the special KIT supplied by Spares checking the date of expiry.

• If a new rearscreen is to be fitted install the four plastic centering nails.

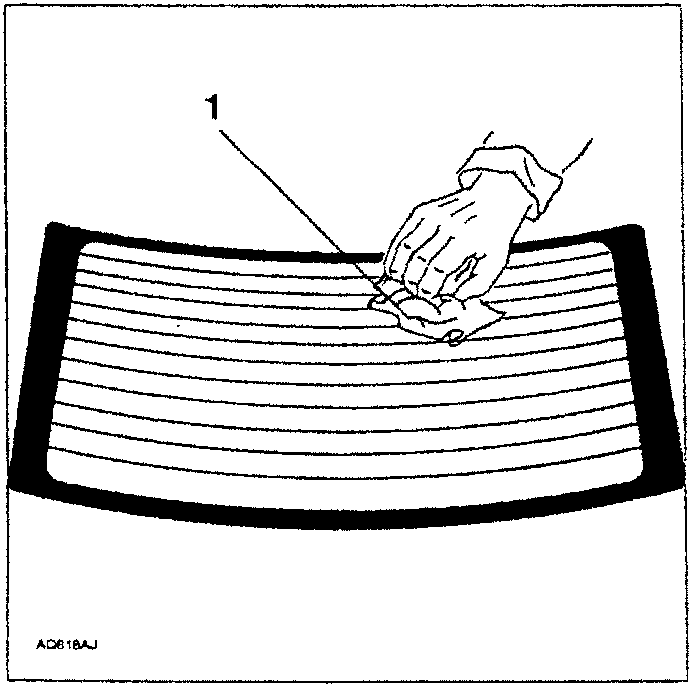

1. Carefully remove any dust and grease from the edge of the glass using the special cloth moistened with degreasing agent.

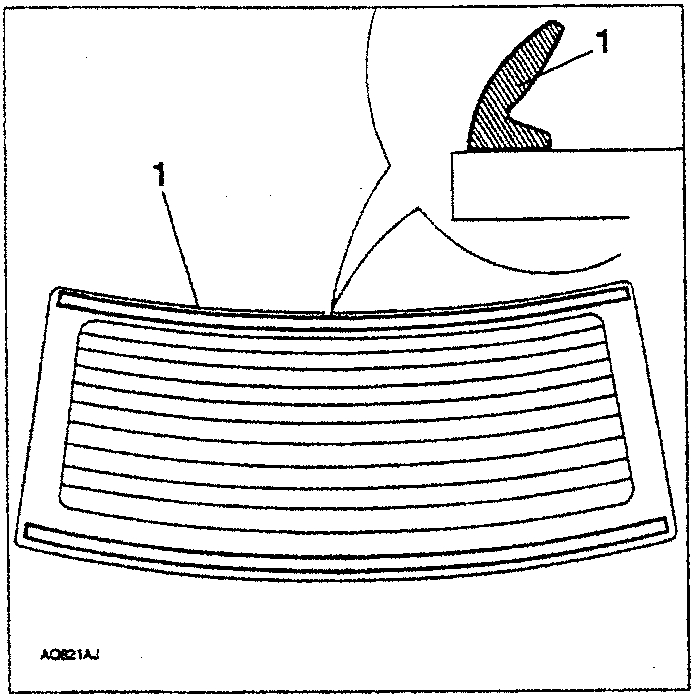

1. Fit the upper and lower seals on the rearscreen glass using tool 1.823.008.001 for positioning.

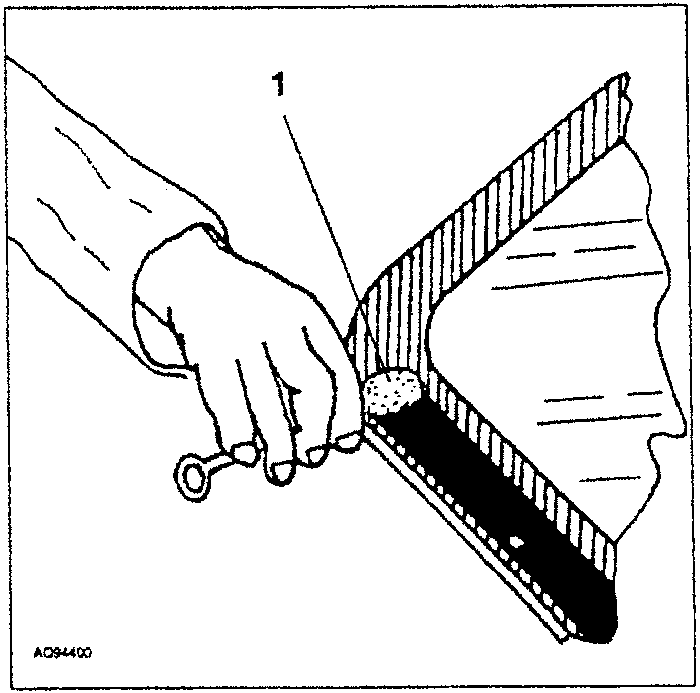

1. Apply the primer continuously and seamlessly on the black serigraph using the pad provided in the kit as illustrated.

NOTE: allow the primer to dry for at least 10 minutes keeping the surface clean.

1. Apply the sealant along the line shown in the figure using the nozzle provided after removing the guide.
