Refitting

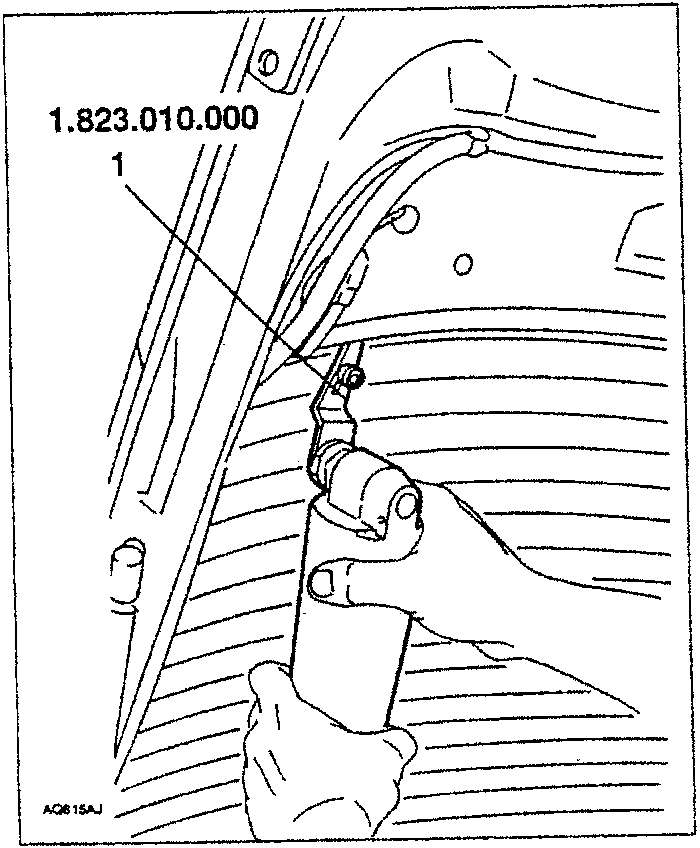

1. Using an electric cutter with blade 1.823.010.000 and working from inside the tailgate, cut the sealant on the upper and lower ends.

Adjust the blade thickness to avoid damaging the bodywork.

1. 1.823.010.000

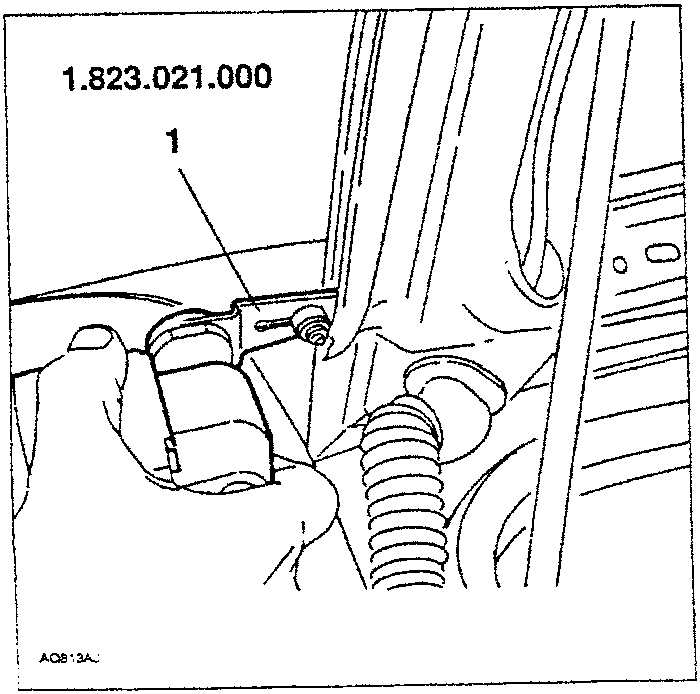

1. Using an electric cutter, fitted with blade 1.823.021.000 and working from the outside of the tailgate, cut the sealant on the sides.

1. 1.823.021.000

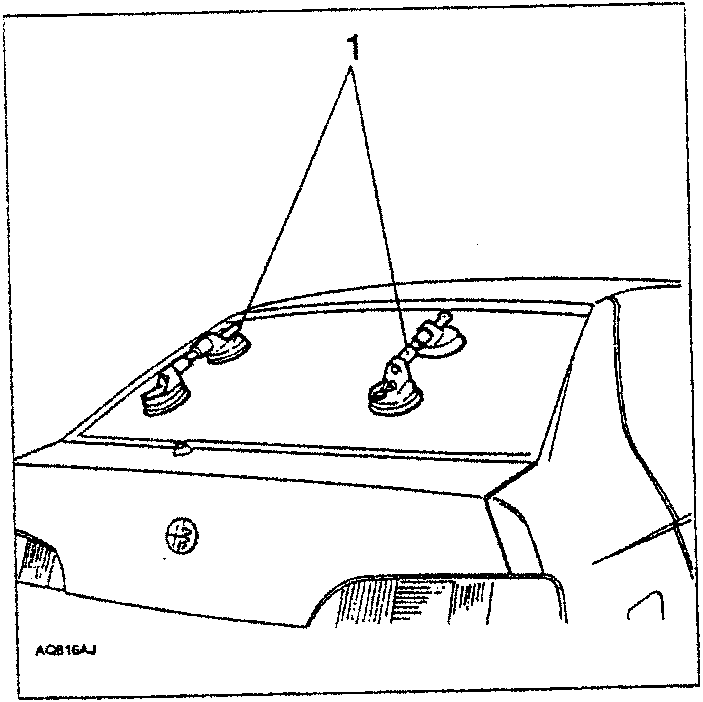

1. Remove the rearscreen using the special suction grips.

1. 1

NOTE: the rearscreen may be re-used also in the event of breakage/shearing of one or more of the centering peg supports.

REFITTING

• Clean the perimeter of the rearscreen rest area of the remaining sealant and eliminate using a dry cloth or compressed air.
• Restore any damaged paintwork caused when cutting the sealant.

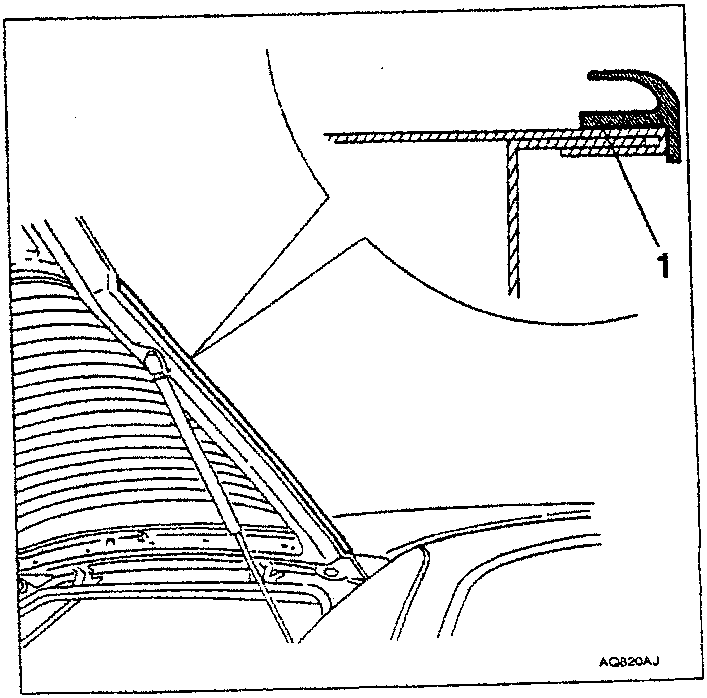

1. Install two new side seals on the tailgate.

1. 1
