Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)02 · 1.9 JTD engine (1910)
02 · Engine

Description of exhaust system

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Exhaust system › Description of exhaust system
1.9 JTD engine (1910)Description of exhaust system

DESCRIPTION OF EXHAUST SYSTEM

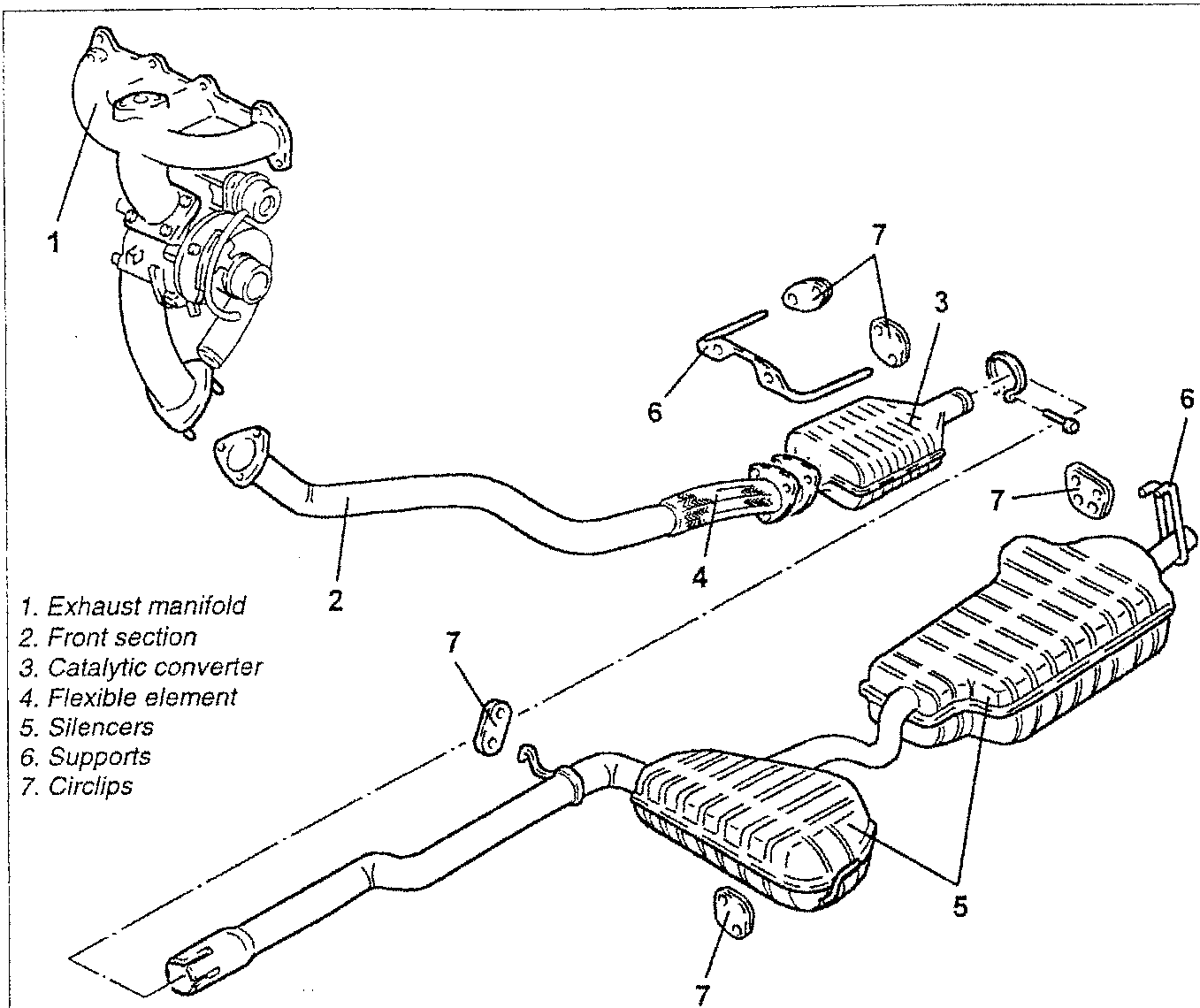

Exhaust system diagram showing manifold, front section, catalytic converter, flexible element, silencers, supports, and circlips.
  1. Exhaust manifold
  2. Front section
  3. Catalytic converter
  4. Flexible element
  5. Silencers
  6. Supports
  7. Circlips

The engine exhaust gases flow through the manifold (1) to the turbocharger and then through a pipe (2) to the oxidising catalytic converter (3). In the front section of the exhaust pipe there is a flexible element (4) to limit the transmission of vibrations. The rear section of the exhaust pipe comprises a single silencer (5). Special shields limit the radiation of heat towards the body. The different components are supported by supports (6) and circlips (7) fastened under the body.

EXHAUST, FRONT SECTION

REMOVAL/REFITTING

  • Set the car on a lift.
  1. Slacken the fastenings and remove the under engine guard.

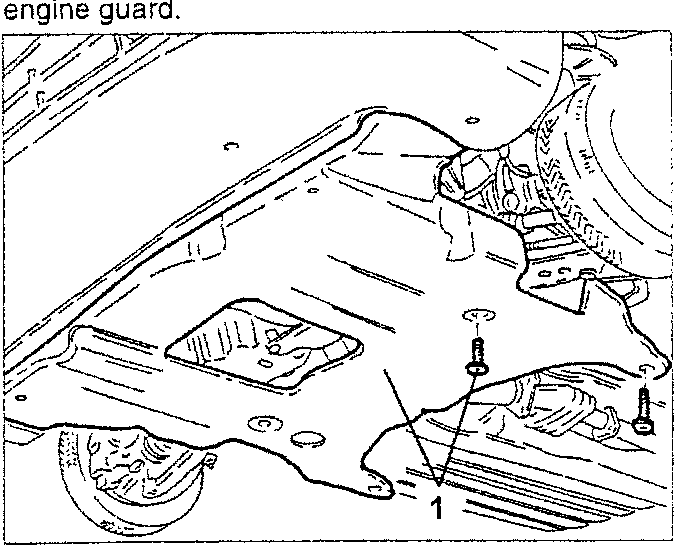

Under-engine view showing bolts securing the under engine guard.
