1.9 TD and TD Cat engine (1929)Description

DESCRIPTION

The engine exhaust gases flow through a manifold into the turbine for engine boosting. From the turbine, through an elbow, the exhaust gases reach the front section of the exhaust pipe. In the front section of the exhaust pipe, there is a flexible bellow type section which compensates for the thermic expansion and vibrations from the engine. From the front section the exhaust gases flow into the central silencer and from here to the two rear silencers. The connection of the various sections of the exhaust pipes is achieved with clamps and they are supported by rings and elastic supports.

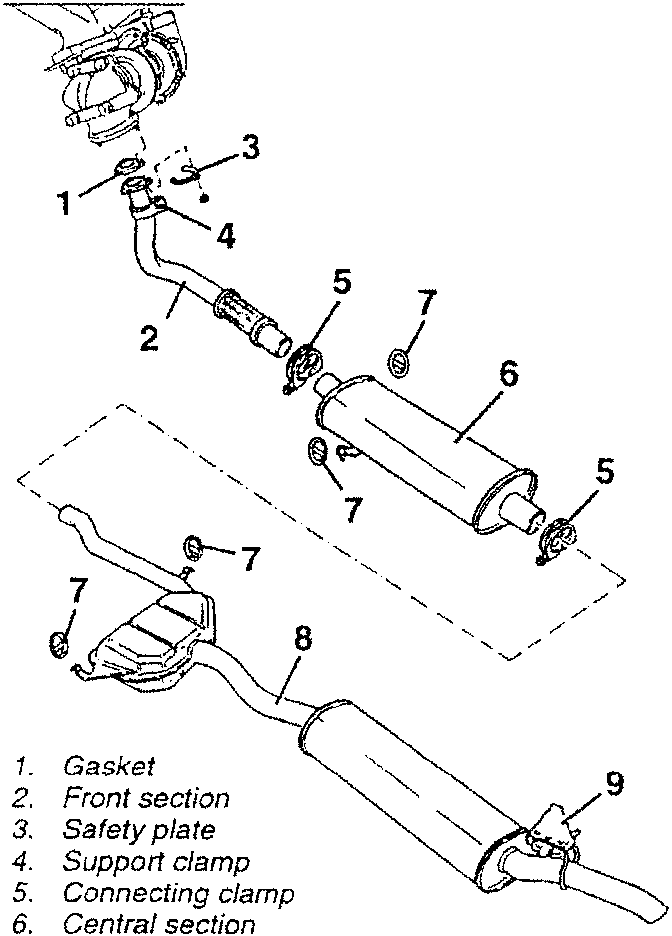

Exhaust system components diagram showing front section, central section, rear section, gasket, safety plate, support clamp, connecting clamp, elastic rings, rear support.
  1. Gasket
  2. Front section
  3. Safety plate
  4. Support clamp
  5. Connecting clamp
  6. Central section
  7. Elastic rings
  8. Rear section
  9. Rear support

FRONT SECTION

REMOVAL/REFITTING

  • Raise the vehicle.
  1. Unscrew the bolt securing the clamp on the exhaust pipe front section.

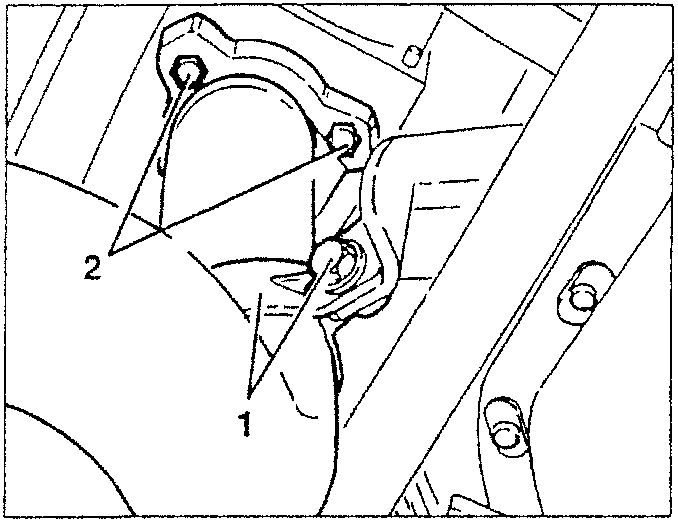

Close-up of turbocharger connection showing screws securing front section of exhaust pipe.
  1. Loosen the clamp securing the front section of the exhaust pipe central section.
  2. Unscrew the screws securing the front section of the exhaust pipe to the turbocharger.

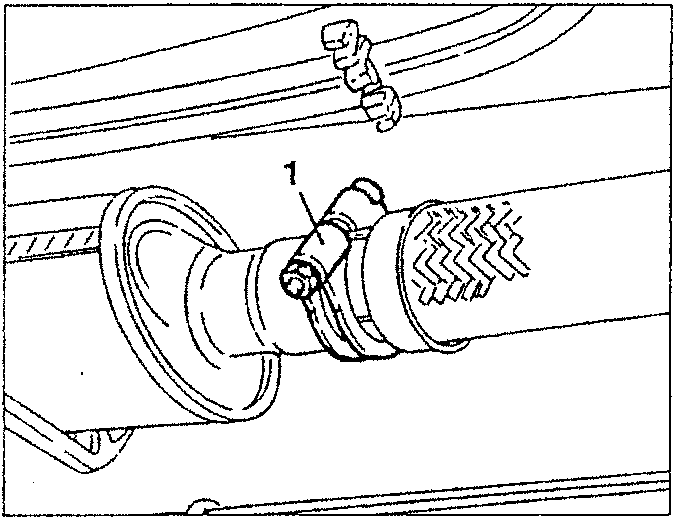

Exhaust pipe front section with gasket shown.
  1. Remove the front section of the exhaust pipe.
  2. Remove the gasket.

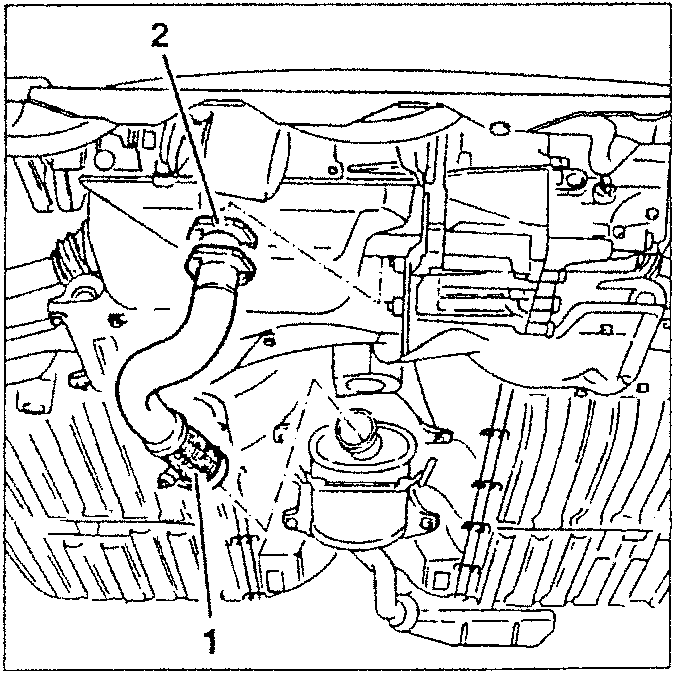

Under-hood view showing exhaust pipe connection to turbocharger and engine components.
