DESCRIPTION

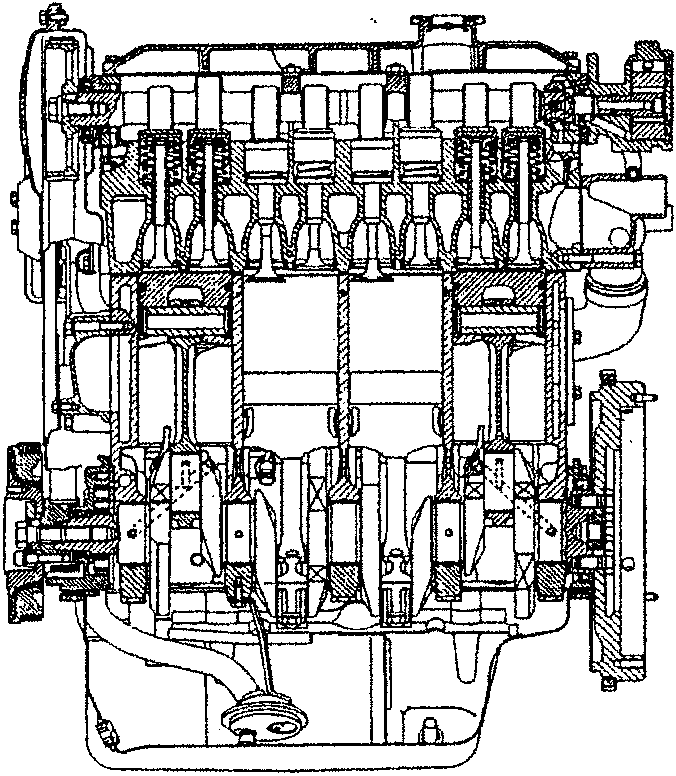

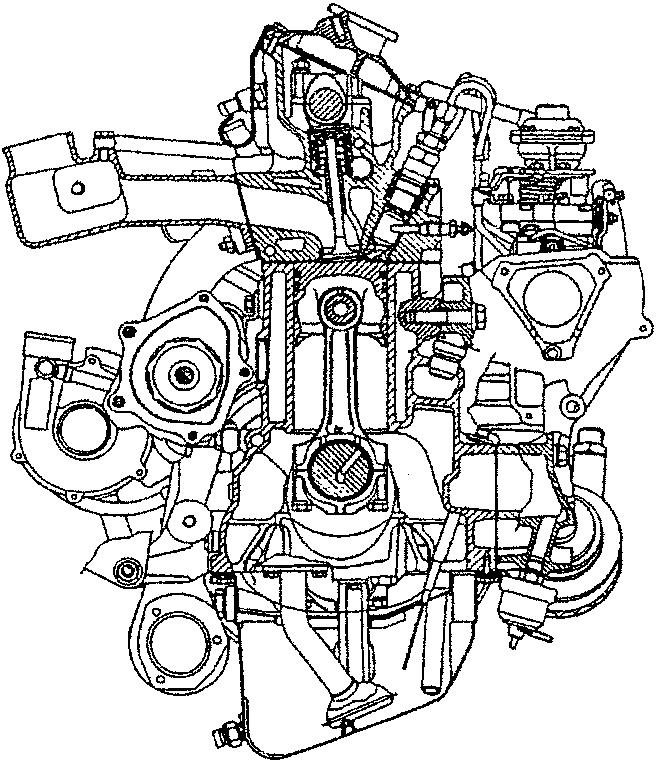

The engine is of the four cylinder in line type with onhead camshaft timing controlled by a drive belt, two valves per cylinder, turbine type air boosting system IH1, and indirect injection with low turbulence combustion prechamber.
The clutch - gearbox unit is connected behind the engine and forms an integral part of the engine unit. It is front mounted and set transversally at an inclination of 18°30' forwards.

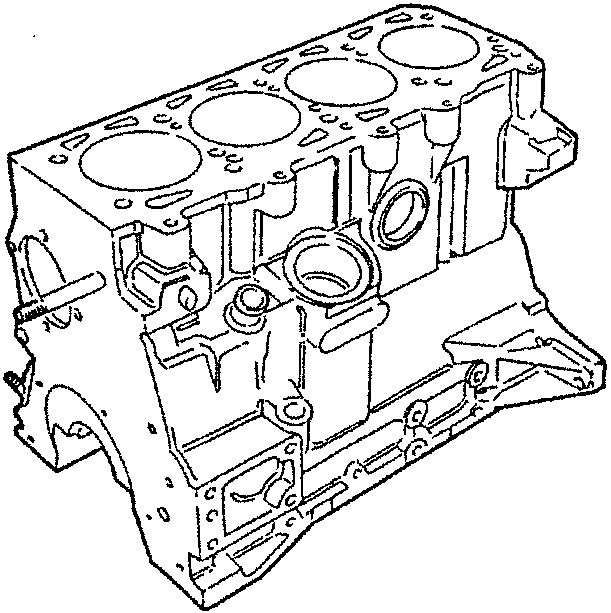

ENGINE BLOCK
This is a single block in iron with a high mechanical resistance.
The crankshaft is supported by five main supports which also house the same number of bearing halves with thin shells.
The cylinder liners are the integral type. Grooving in the walls of the block allow circulation of engine coolant and lubricating oil.

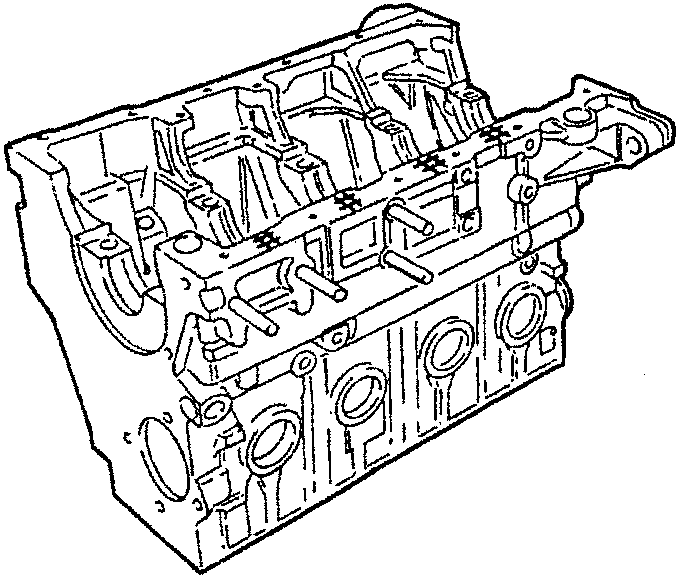

The letters showing which class the cylinder liners belong to are printed on the block in the position shown in the figure below.
It is installed on the frame by suspension type mounts and fixed by two elastic damping supports at the front and by an elastic damping fork type support at the rear.
