Engine overhaul: 3.0 V6 24V (AR16102)Description · page 1 of 2

DESCRIPTION

Six cylinder, 60° V, compact, two camshaft timing for each bank and four valves per cylinder.

Static ignition, with one coil per spark plug.

Static injection and ignition are controlled by a single ECU.

The main variation of this engine with respect to the previous version are:

  • "Compact" engine, thanks to the adoption of new accessory units (compressor, power steering, alternator) which reduce engine size.

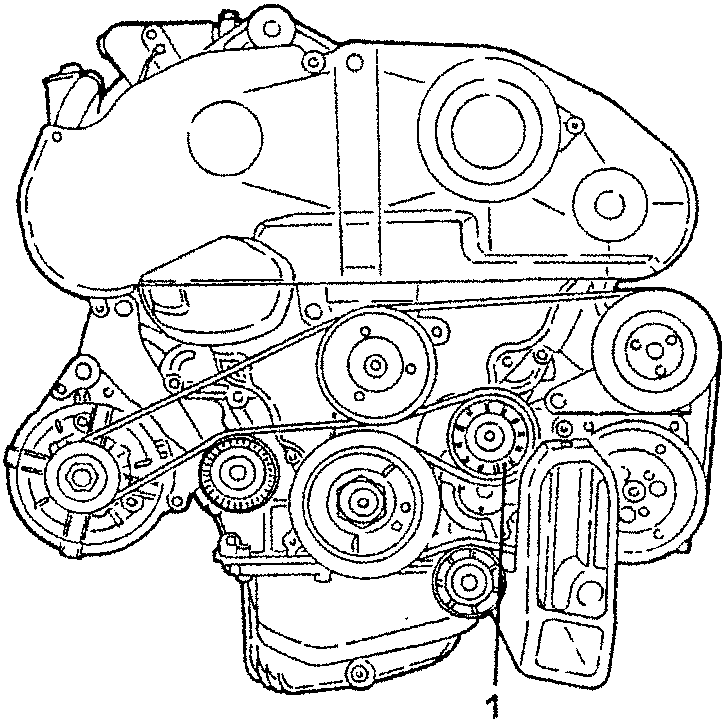

  • Adoption of a new automatic "Dayco" (1) auxiliary unit drive belt take-up device; this was a seven-rib Poly-V and is now a six-rib.
Engine diagram showing accessory belts and pulleys

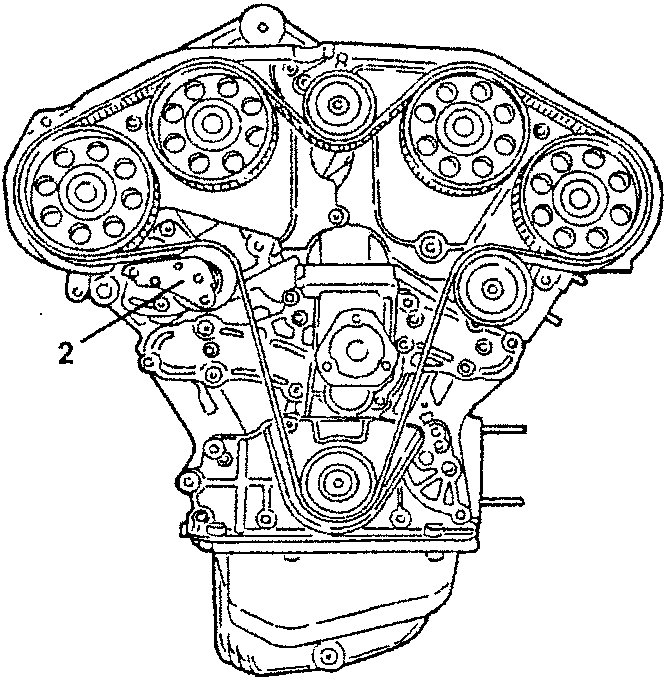

  • Adoption of a new "litens" (2) timing belt drive take-up device.
Engine diagram showing timing belt and pulleys
