Engine overhaul: 3.0 V6 24V (AR16102)Description · page 2 of 2

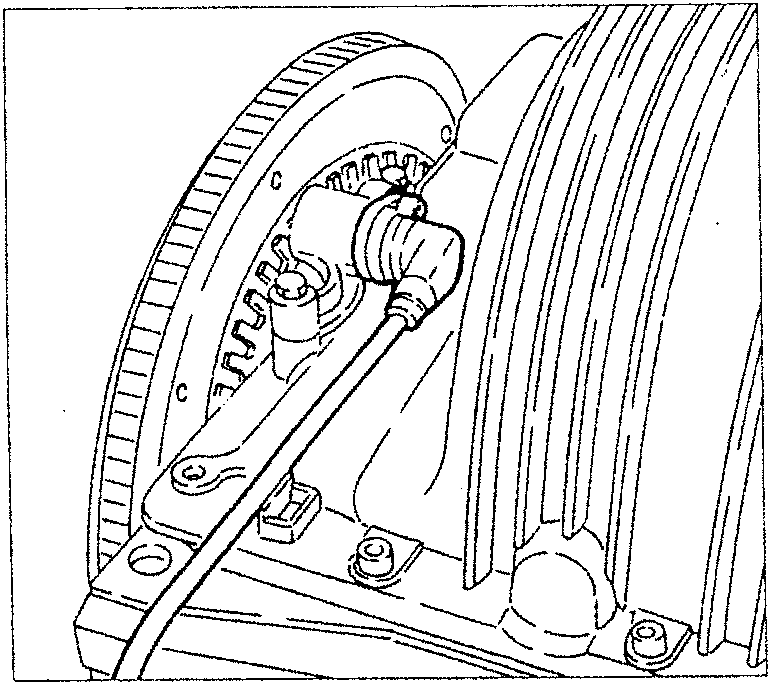

• Positioning of an rpm and timing sensor phonic wheel on flywheel rather than on the auxiliary unit drive belt to eliminate the torsion oscillation effects and increases angle speed sensitivity. Consequently, it can more effectively identify misfiring.

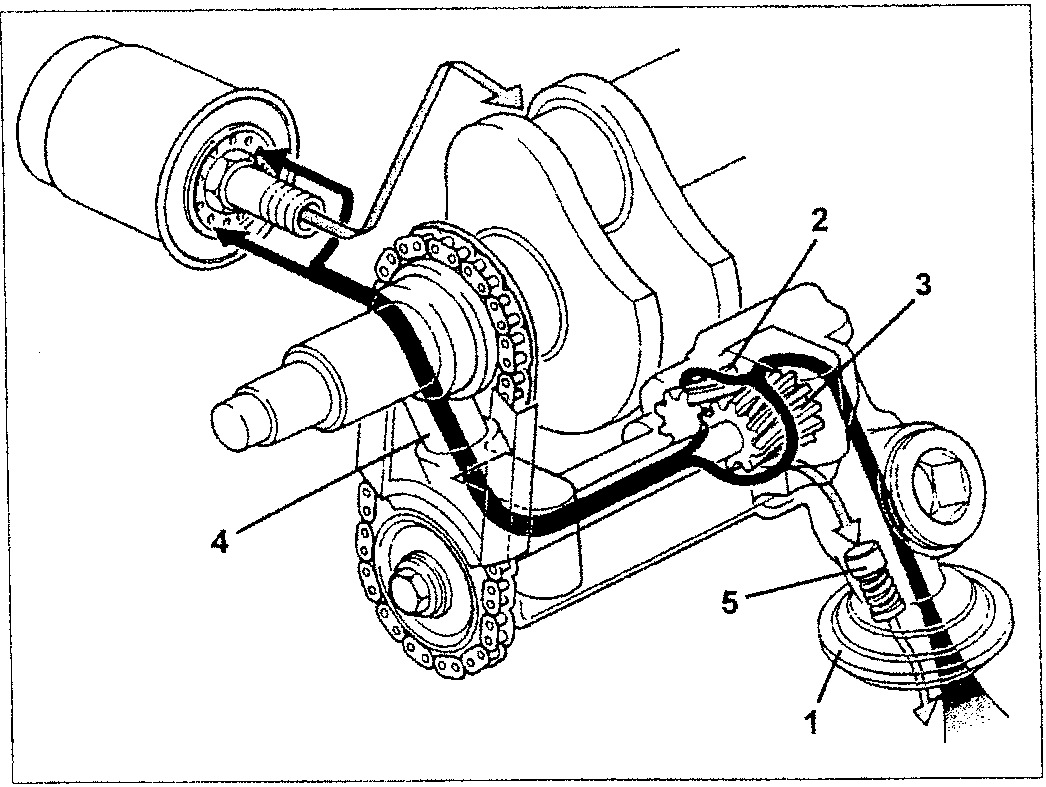

• Adoption of a “silent” oil pump chain (ex lobular, now geared) with increased performance, especially at low engine ratios.

1. Suction device
2. Drive gear
3. Drive gear
4. Oil supply manifold to filter
5. Oil pressure limiting valve
