BodyworkBonnet closure safety device
  1. Loosen the nut securing the buffer.
  2. Manually tighten or loosen the buffer as required; tighten the nut securing.

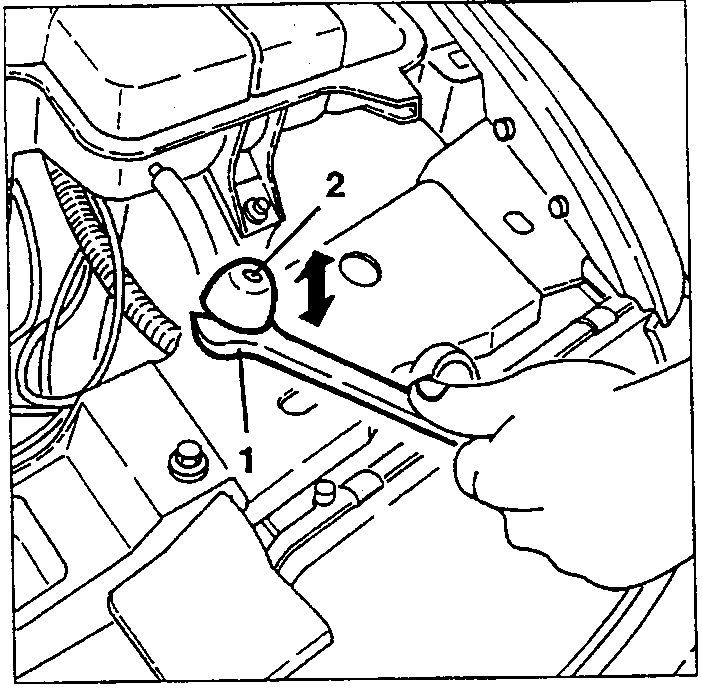

Adjusting the bonnet buffer 2 with a spanner on nut 1

BONNET CLOSURE SAFETY DEVICE

REMOVAL/REFITTING

  1. Loosen the two screws securing the safety device.
  • Remove the bonnet closure safety device.
  1. For adjustment loosen the screws securing the safety device and adjust longitudinally and transversally.

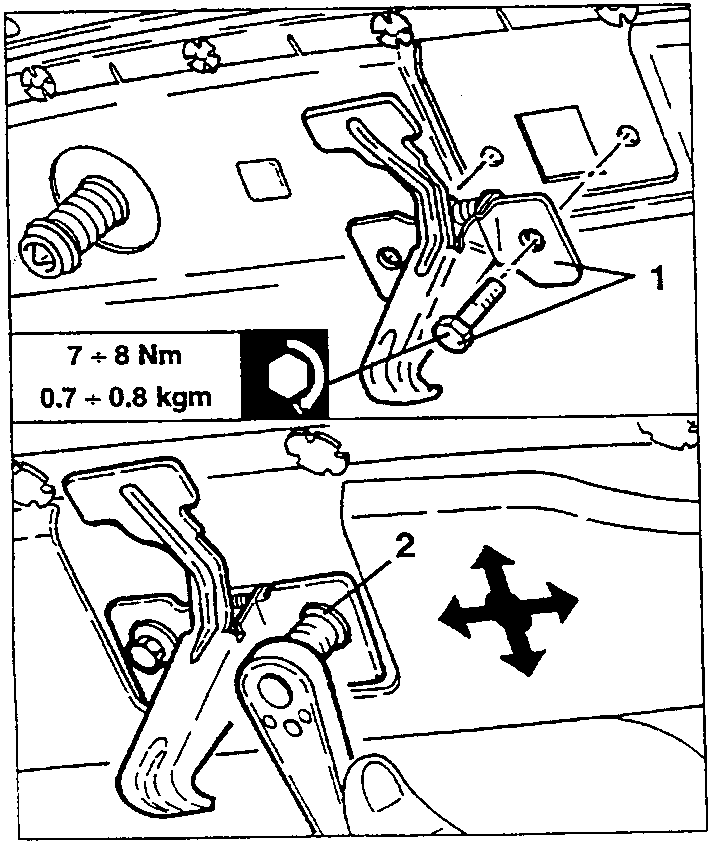

Bonnet closure safety device with screws 1 and adjustment 2, with arrows showing adjustment directions

7 ÷ 8 Nm
0.7 ÷ 0.8 kgm

BONNET CATCH

REMOVAL/REFITTING

  1. Disconnect the bonnet release cable from the catch.
  2. Loosen the three screws securing the catch.

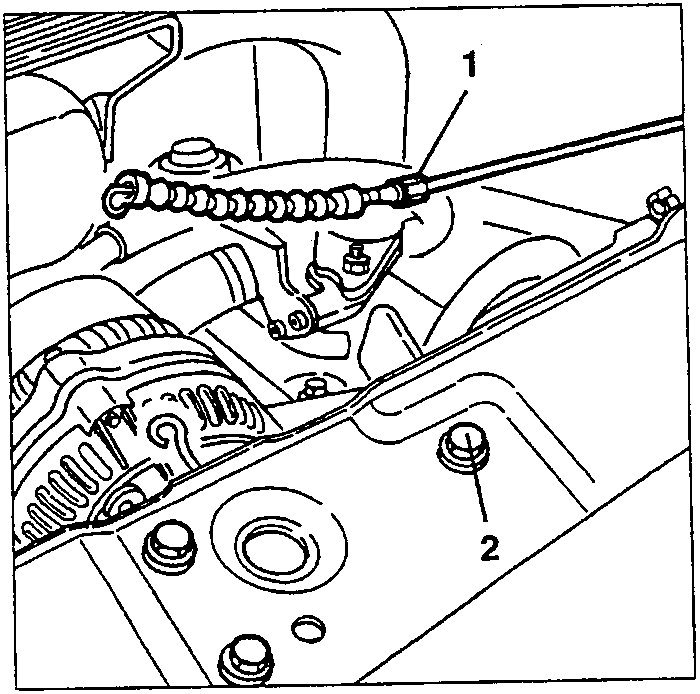

Bonnet release cable 1 at the catch and one of the catch screws 2
  1. Remove the bonnet catch.

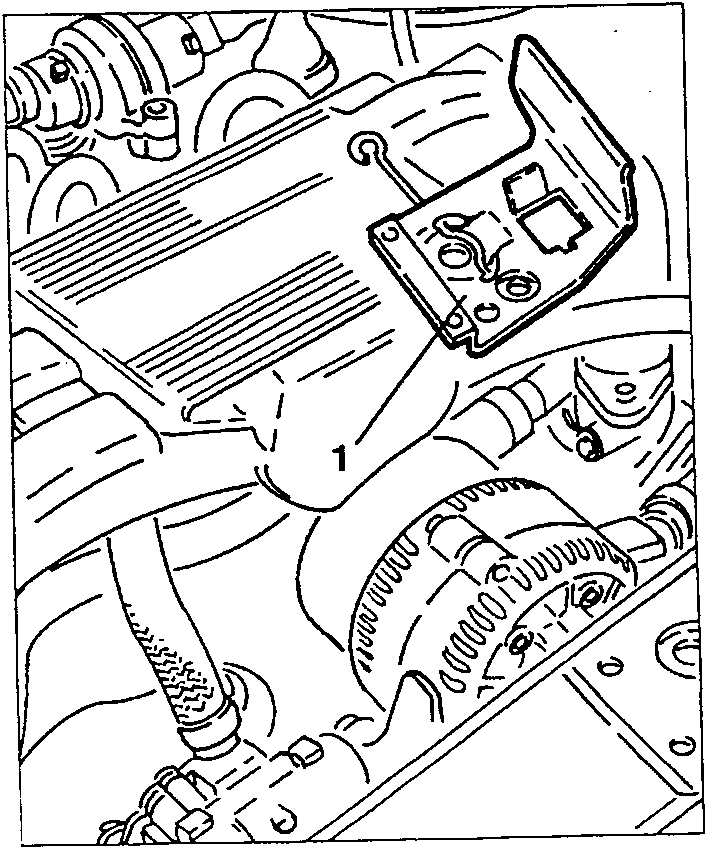

Removing the bonnet catch 1 in the engine bay
