Replacing the boot opening control cable

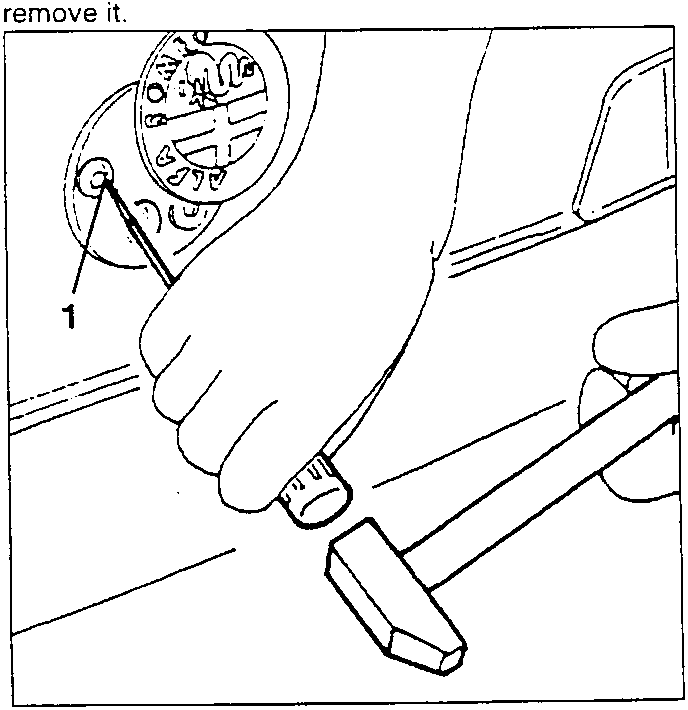

1. Using a punch, slacken the two self-shearing screws fastening the lock block to the boot and remove it.

Refit reversing the sequence used for removal taking care to use new self-shearing screws for fastening the lock block.

• Remove the rear seat cushion (see specific paragraph).

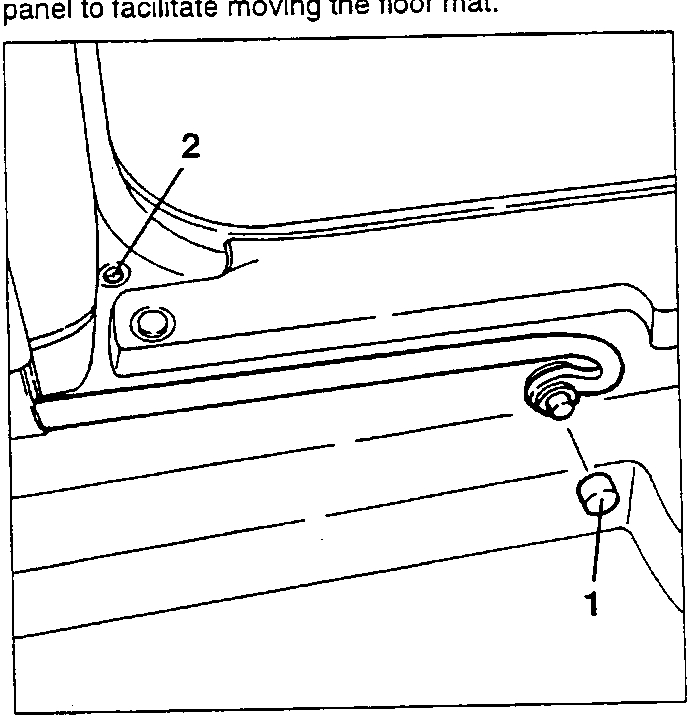

1. Remove the cap and slacken the screw fastening the left front seat belt sliding connection, without withdrawing the belt itself.
2. Slacken the screw illustrated fastening the side panel to facilitate moving the floor mat.

• Remove the left hand sill board (see specific paragraph).
• Pull away the floor mat and release the cable from the fastening clamps.

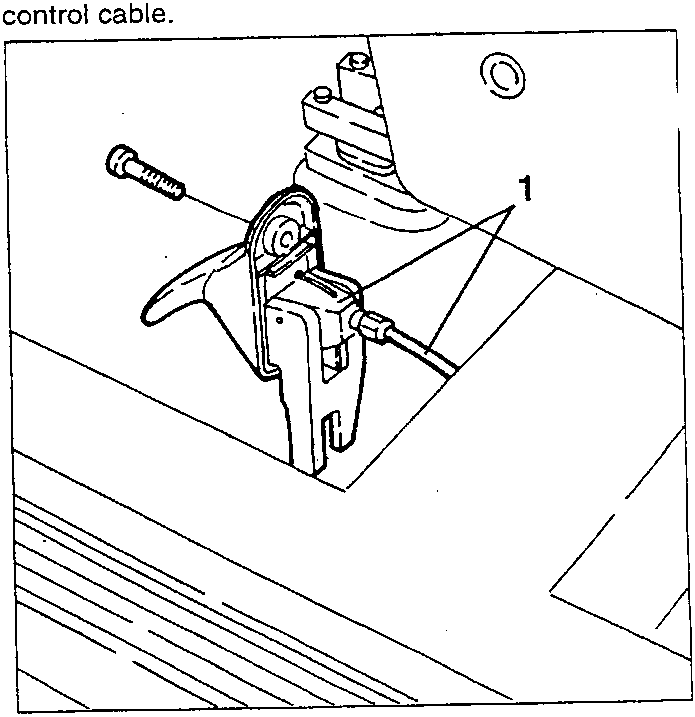

1. Slacken the two fastening screws and pull out the boot opening control lever just enough to remove the control cable.

REPLACING THE BOOT OPENING CONTROL CABLE

• Remove the suitcase guard (see specific paragraph).

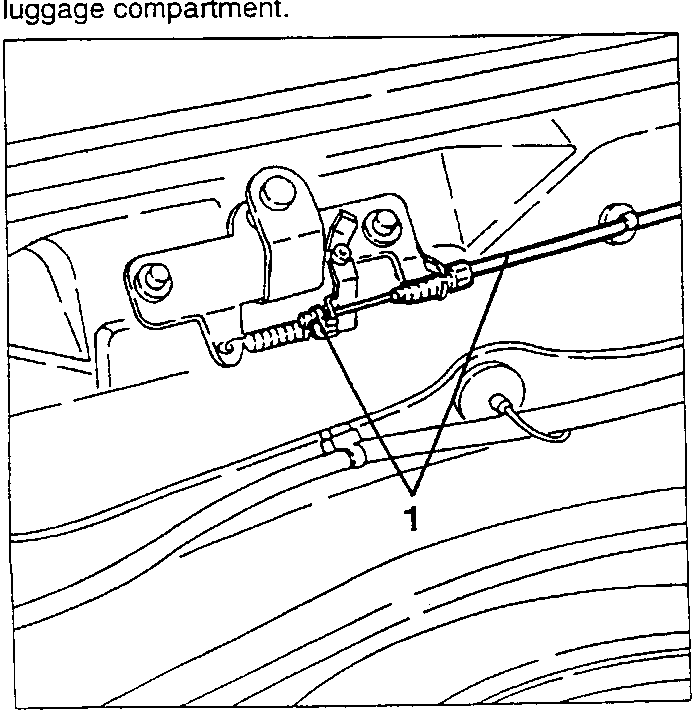

1. Disconnect the boot opening cable from the lock striker and release it from the fastening clamps in the luggage compartment.

• Remove the boot opening control cable and install a new one reversing the sequence followed for removal.
