BodyworkBoot · page 1 of 2

BOOT

REMOVAL/REFITTING

  • Disconnect the negative cable (-) from the battery.
  1. Open the boot. Pull off and remove the two side trim panels from the plastic buttons.

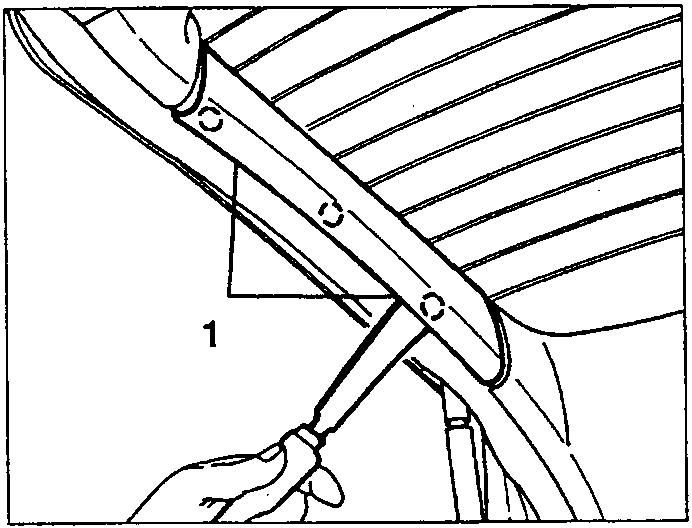

Pulling off the boot side trim panel 1 with a screwdriver
  1. Remove the two bulb access panels.
  2. Loosen the two screws securing the boot's interior trim.

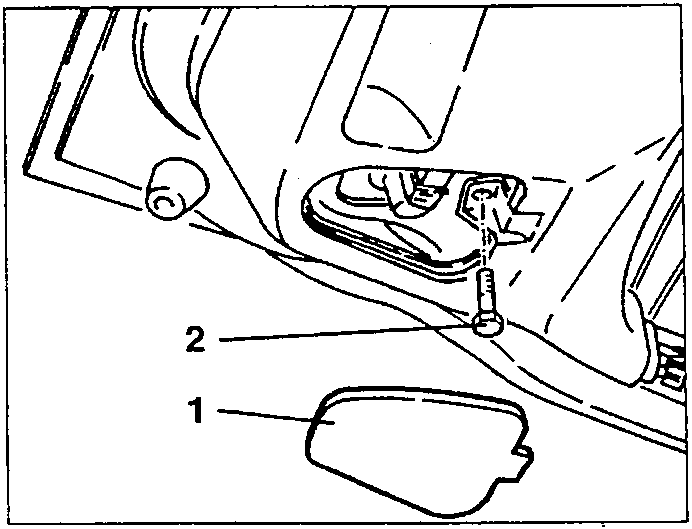

Bulb access panel 1 and trim securing screw 2
  1. Pull the trim away from the plastic buttons in the lower part of the boot and remove.

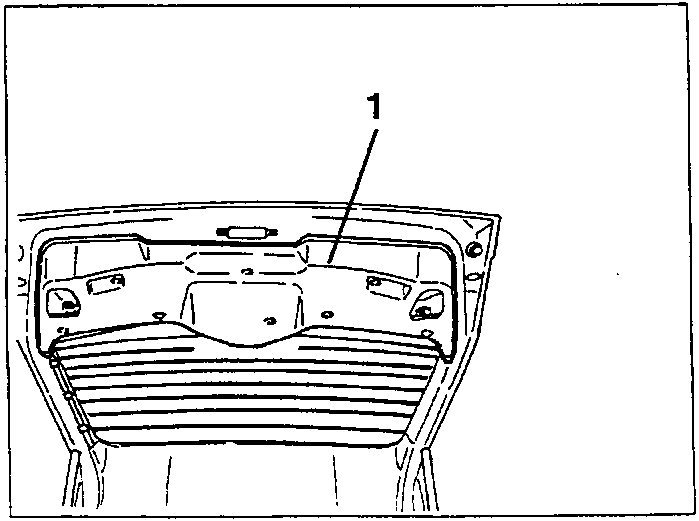

Boot lid with the lower trim 1
  1. Pull the trim away from the plastic buttons (positioned as shown in the diagram) in the upper part of the boot and remove.

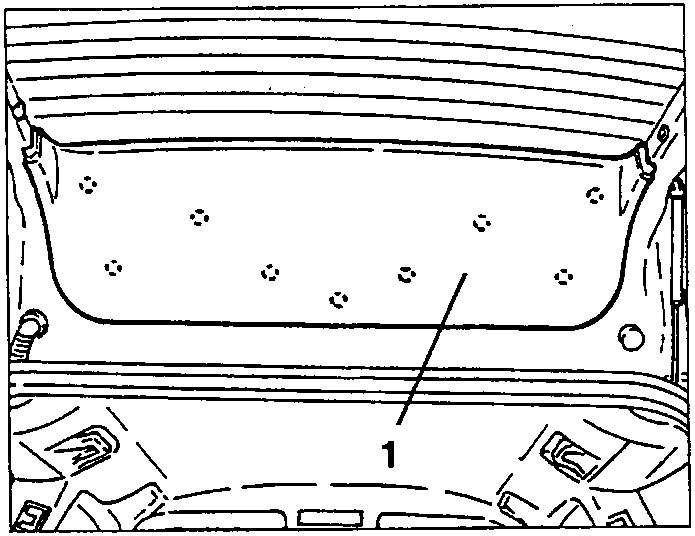

Upper boot trim 1 with the plastic button positions
  1. Disconnect the electrical connections from the reversing lights and the rear fog lights.

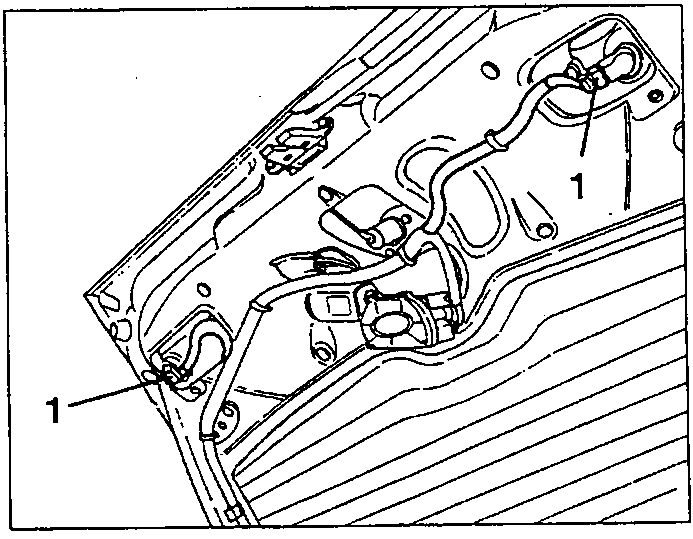

Electrical connections 1 of the reversing and rear fog lights
  1. Disconnect the electrical connection from the centralized locking.
  2. Disconnect the electrical connection from the rear windscreen wiper.

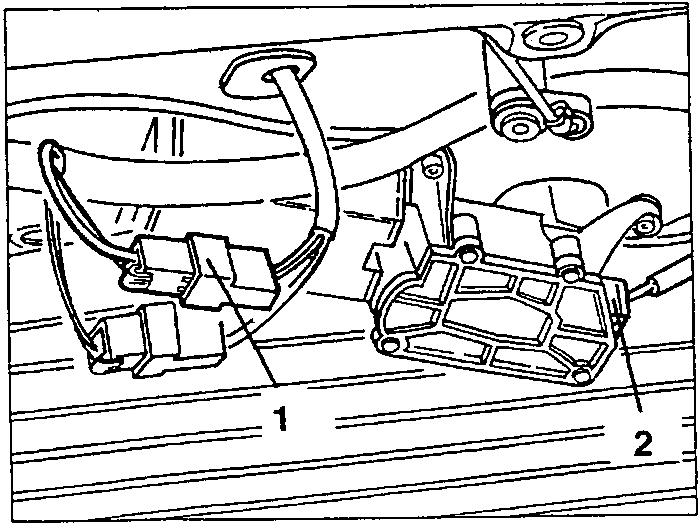

Centralized locking connection 1 and rear windscreen wiper connection 2
