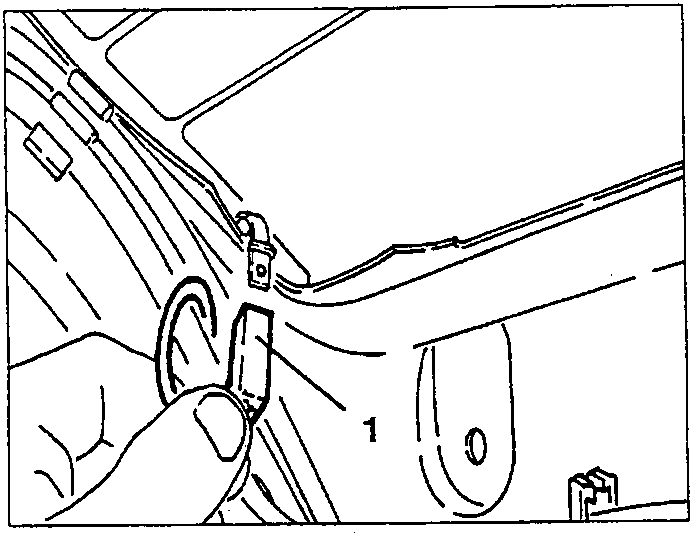

1. Disconnect the two electrical connections from the heated rear windscreen.

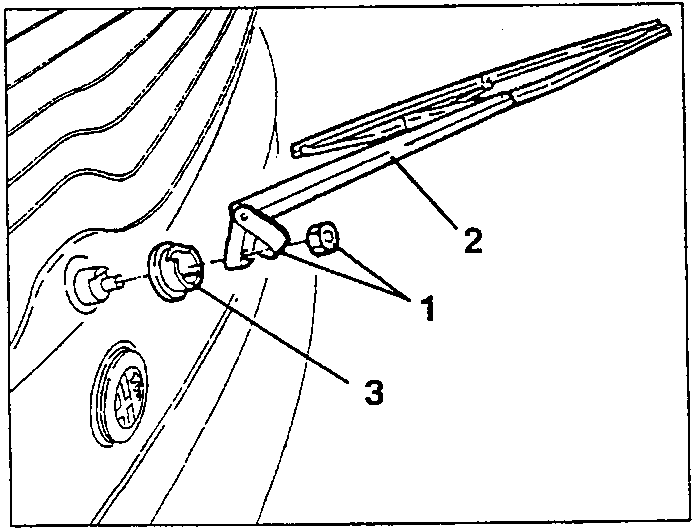

1. Lower the boot, raise the protective cap and unscrew the nut securing the rear windscreen wiper arm.
2. Remove the rear windscreen wiper arm.
3. Pull off and remove the rubber protection from the windscreen wiper.

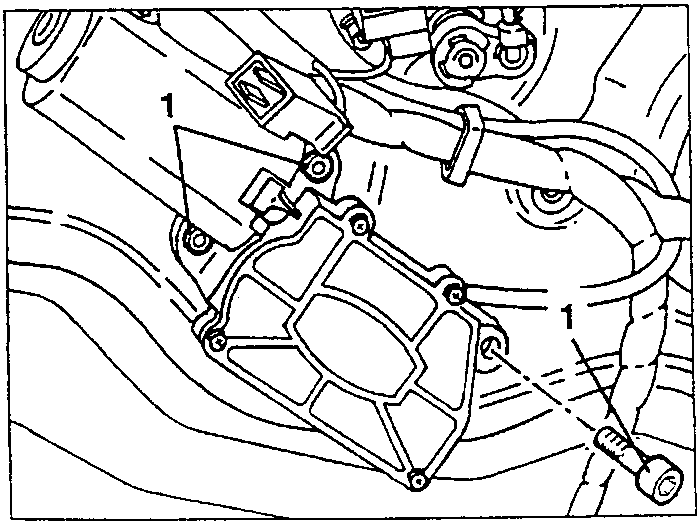

1. Raise the flap and loosen the three screws securing the rear windscreen wiper motor.

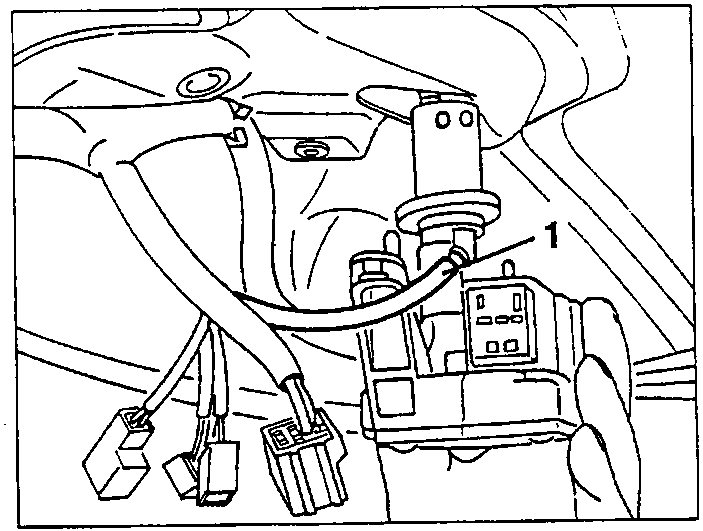

1. Withdraw the rear windscreen wiper motor from the boot just enough to enable the detergent abduction hose to be disconnected.

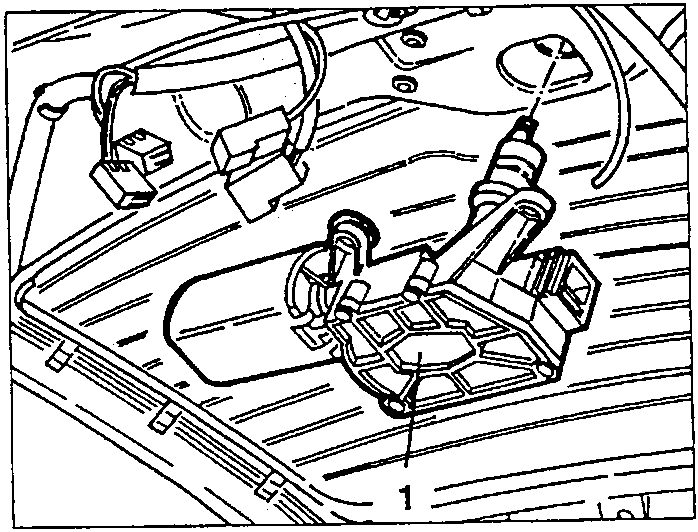

1. Remove the rear windscreen wiper motor.

• Free the electrical wiring from the clamps securing it to the boot.

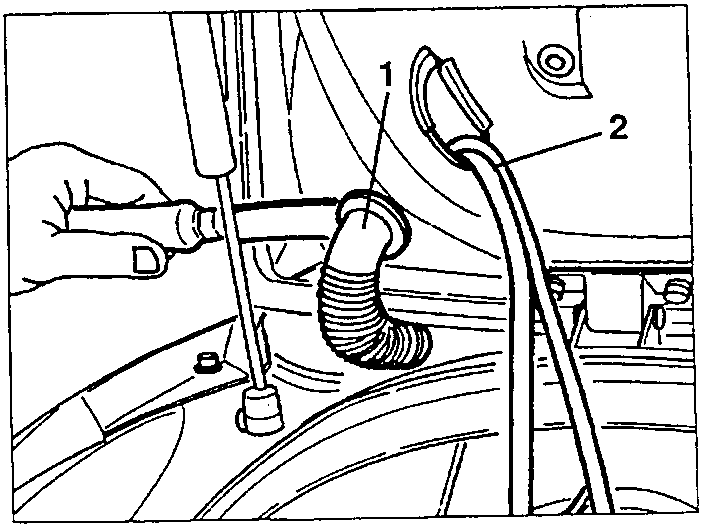

1. Disconnect the cable runner sleeve from the boot.
2. Withdraw the electrical wiring from its hole.
