Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Lock striker

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Bonnet / boot › Lock striker
BodyworkLock striker

LOCK STRIKER

REMOVING/REFITTING

  • Remove the suitcase guard (see specific paragraph).
  1. Disconnect the boot opening cable from the lock striker.
  2. Slacken the two fastening screws and remove the pqk striker.

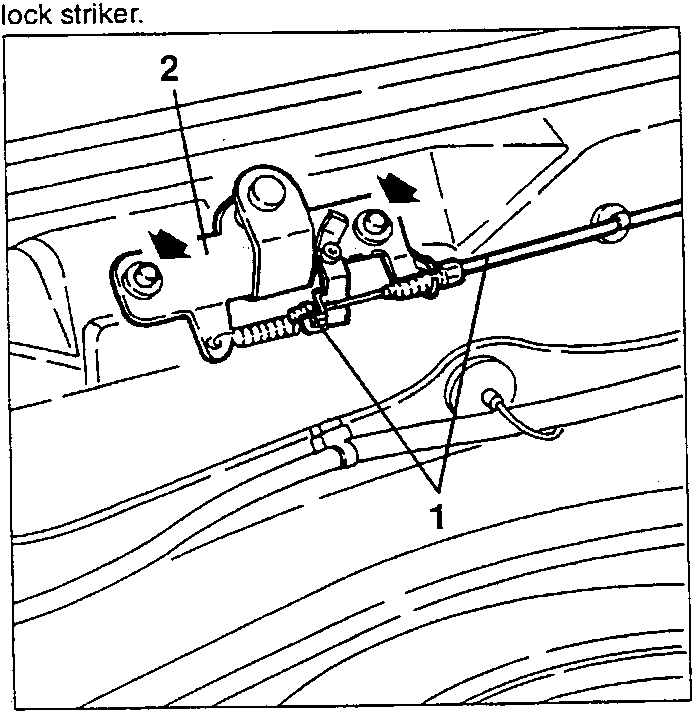

Diagram showing lock striker with numbered parts 1 and 2

ADJUSTMENT

  1. Remove the two caps from the suitcase guard, then slacken the screws fastening the boot lock striker until the bonnet closes correctly, then tighten the screws.

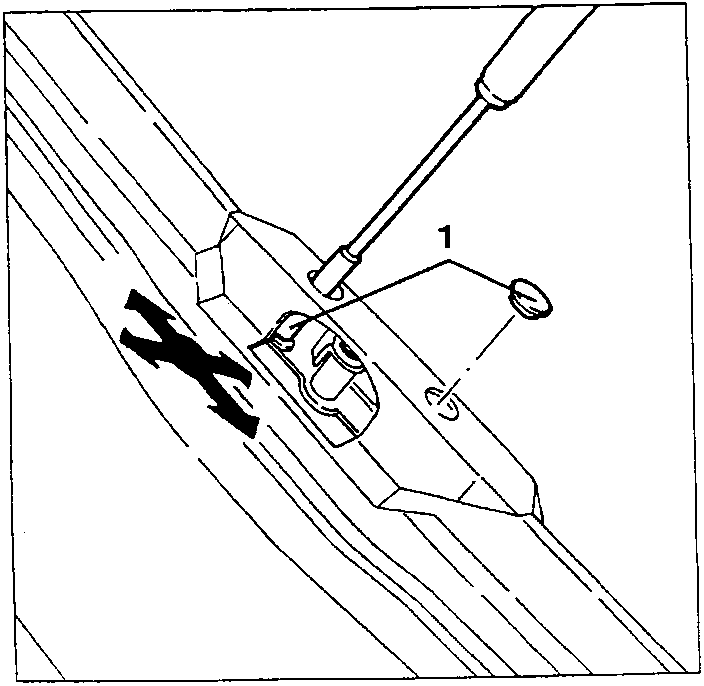

Diagram showing screw adjustment with tool and part 1

BOOT LOCK

REMOVING/REFITTING

  1. Prise and remove the plastic cover from the boot lock.
  2. Slacken the two fastening screws and remove the boot lock.

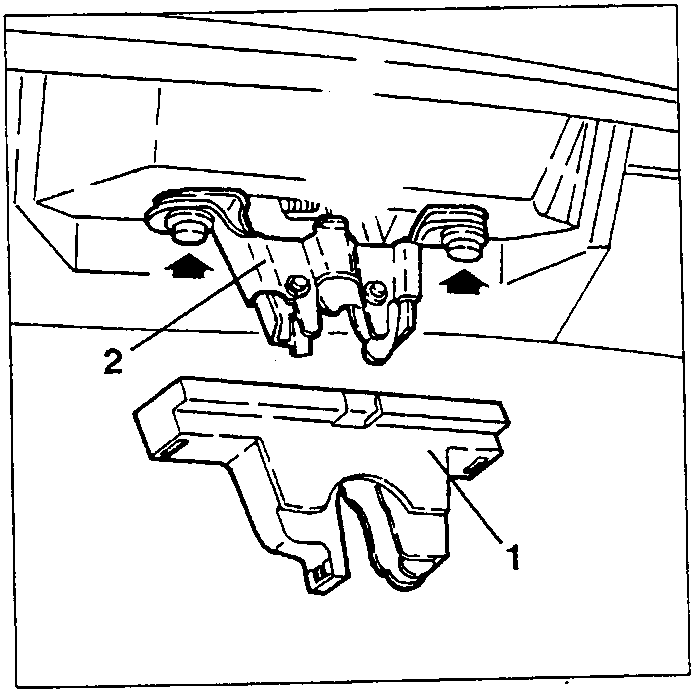

Diagram showing boot lock with numbered parts 1 and 2

LOCK BLOCK

REMOVING/REFITTING

  1. Turn the badge and remove the two caps protecting the fastening screws.

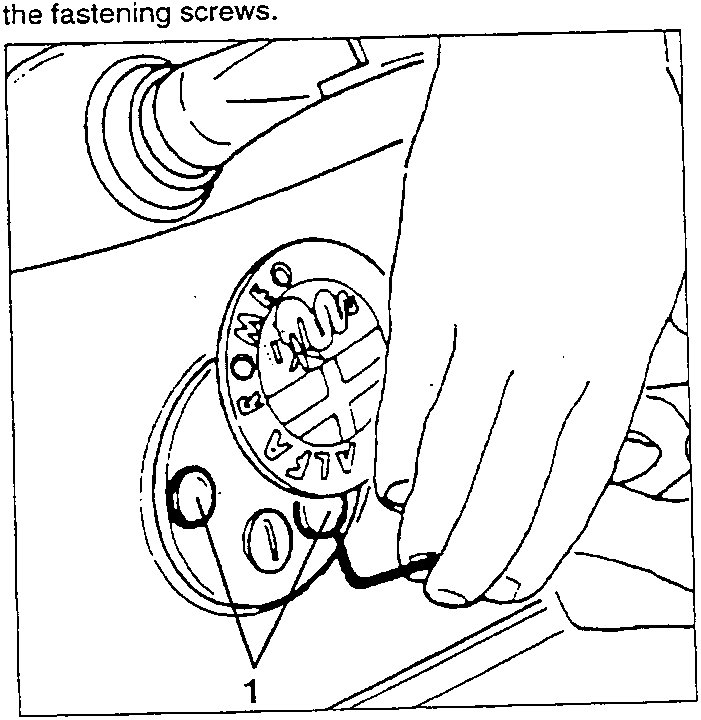

Diagram showing hand turning badge to access screws
