THROTTLE

REMOVAL/REFITTING

  • Disconnect the (-) battery terminal.

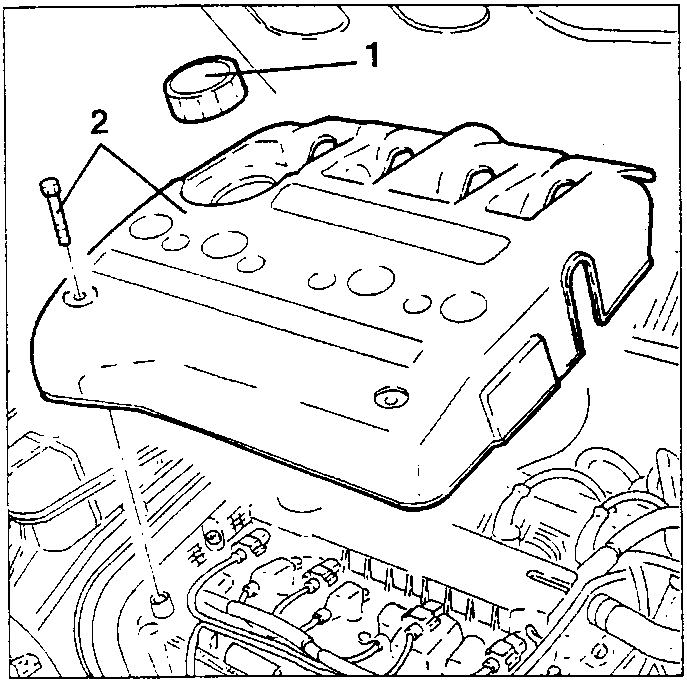

  1. Remove the engine oil filler cap.
  2. Remove the fastening screws and remove the ignition coil cover.
Engine with oil filler cap and ignition coil cover
  1. Refit the engine oil filler cap.

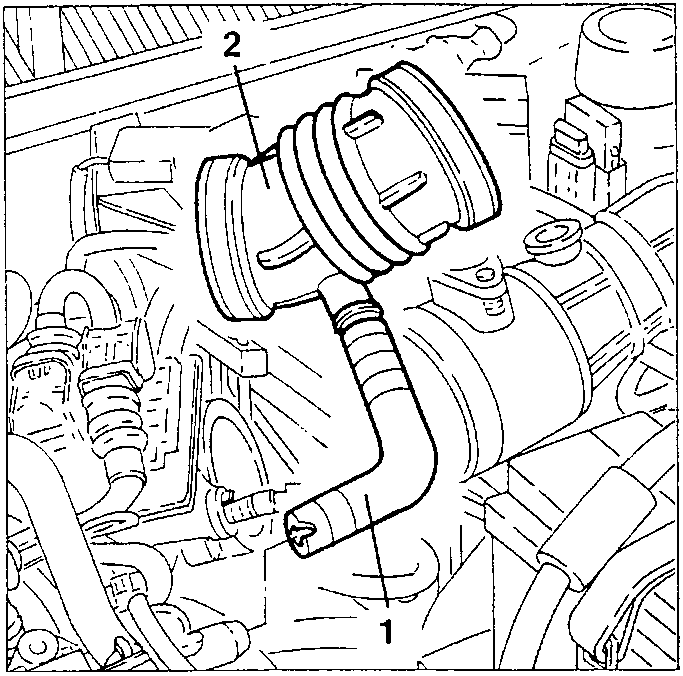

  2. Disconnect the oil fume re-circulation pipe from the tappet cover.
  3. Disconnect the air flow meter sleeve from the throttle and remove it.
Air flow meter sleeve being disconnected from throttle

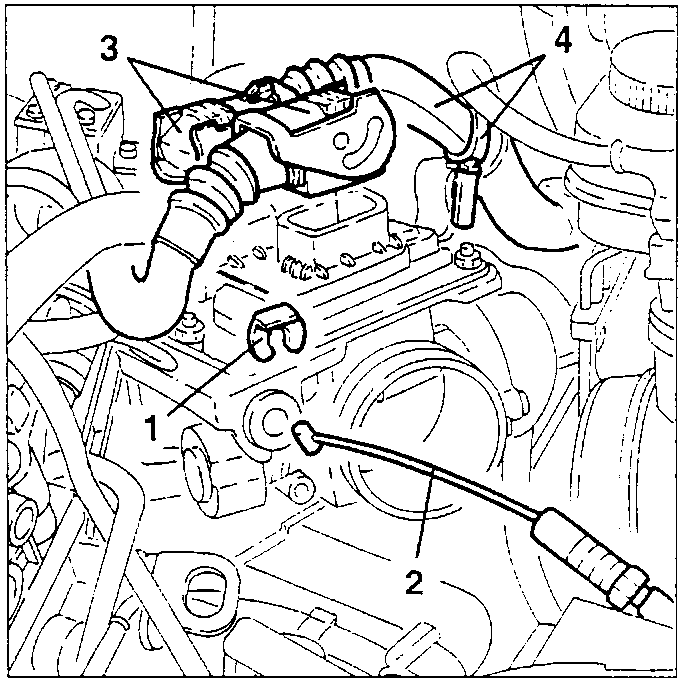

  1. Remove the fastener from the accelerator wire from the rod.
  2. Release the accelerator wire from the cam on the throttle and shift it.
  3. Disconnect the engine ECU electric connections.
  4. Release the wiring from the clip on the ECU.
ECU with wiring and accelerator wire

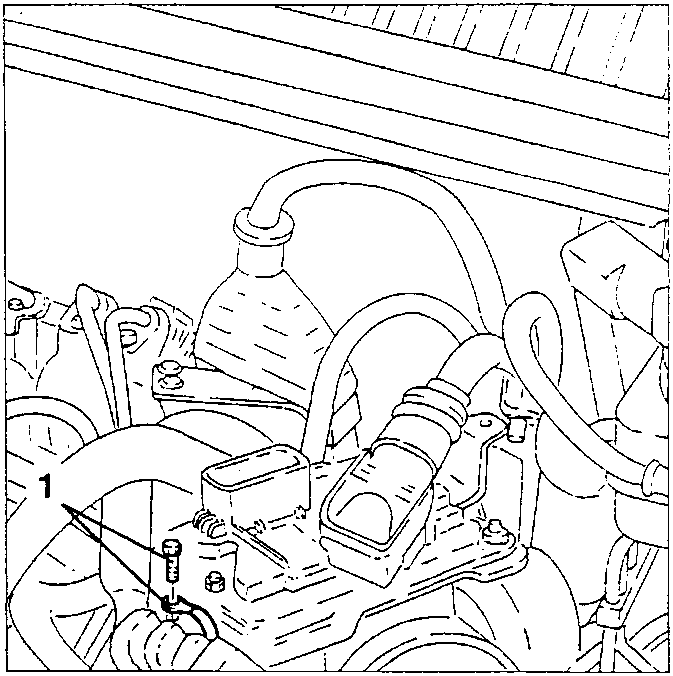

  1. Disconnect the earth from the engine ECU support.
Engine ECU support with earth disconnected
