Intake manifold solenoid valve

INTAKE MANIFOLD SOLENOID VALVE

This is a three-way solenoid valve integrates in the pneumatic actuator controlling the variable geometry unit.

It is controlled by the injection ECU.

It enables the vacuum in the vacuum reservoir (inside the intake unit) to act on the rocking manifold control pneumatic actuator.

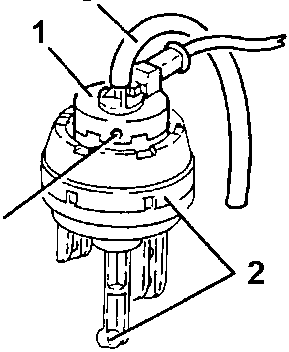

1. Modular intake manifold solenoid valve
2. Modular intake device control actuator
3. Vacuum pipe
4. Atmospheric pressure air inlet

• Refit the engine oil filler cap.

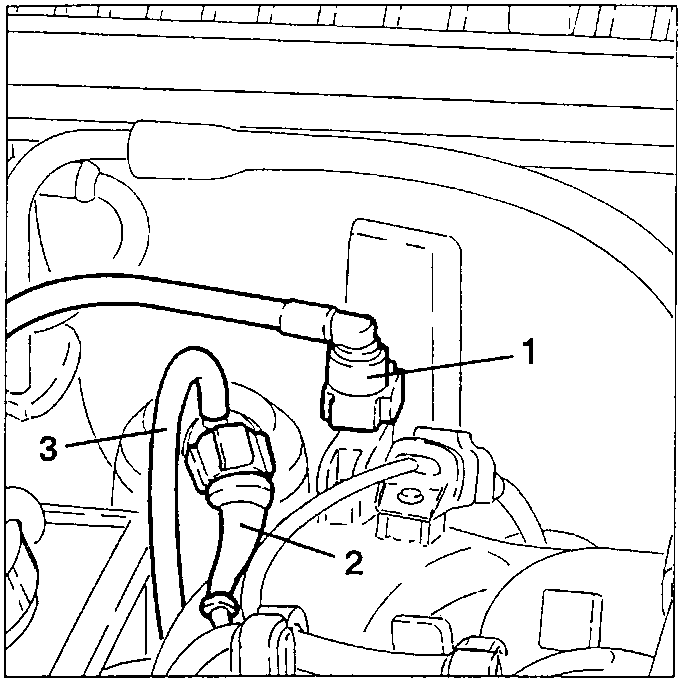

1. Disconnect the fuel fume quick coupling pipe and release it from the clip on the power steering reservoir.
2. Disconnect the modular intake manifold actuator electric connection.
3. Disconnect modular intake manifold actuator vacuum pipe.

REMOVAL/REFITTING

• Disconnect the (-) battery terminal.

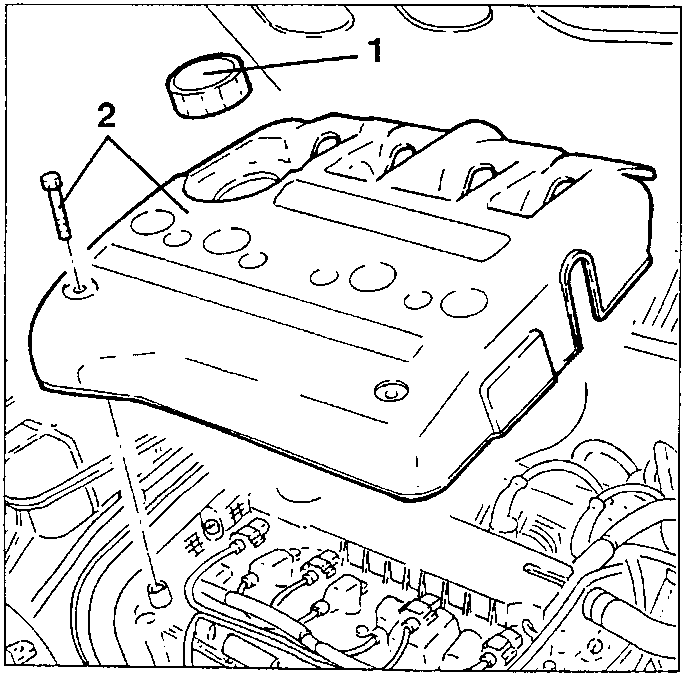

1. Remove the engine oil filler cap.
2. Remove the fastening screws and remove the ignition coil cover.

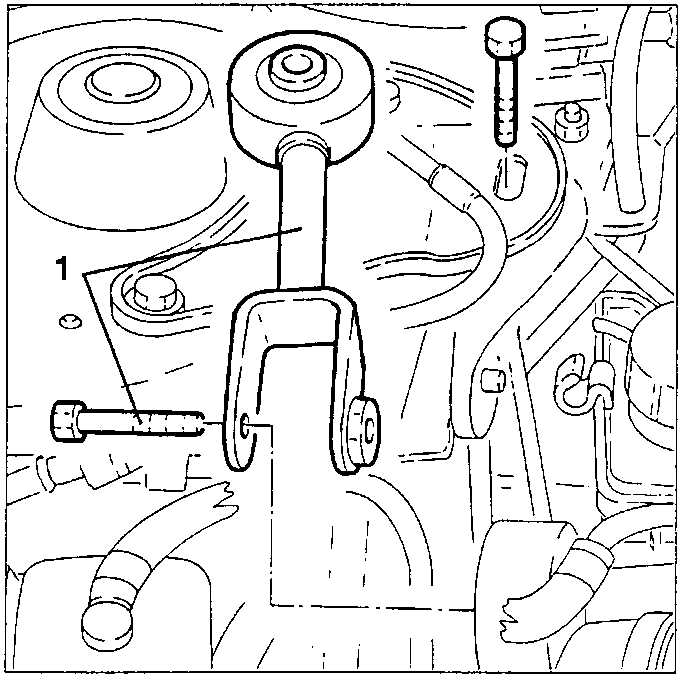

1. Remove the fastening screw and remove the engine reaction tie-rod.

1. Disconnect the right-hand ABS sensor electric connection from the support rod.
2. Remove the fastening nut and remove the ABS sensor electric connection support rod.
