Removal/refitting (page 3 of 3)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Air supply system (1970 T. SPARK 16V)

EngineRemoval/refitting · page 3 of 3

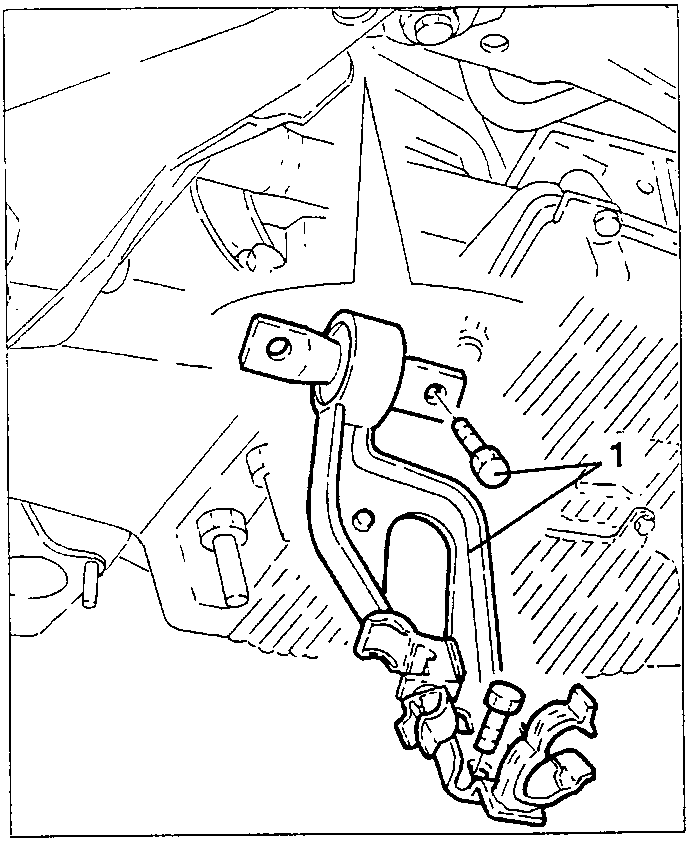

1. Remove the fastening screws and the modular intake manifold support rod.

• Remove the screw fastening the right-hand side of the modular intake manifold.

• Lower the vehicle.

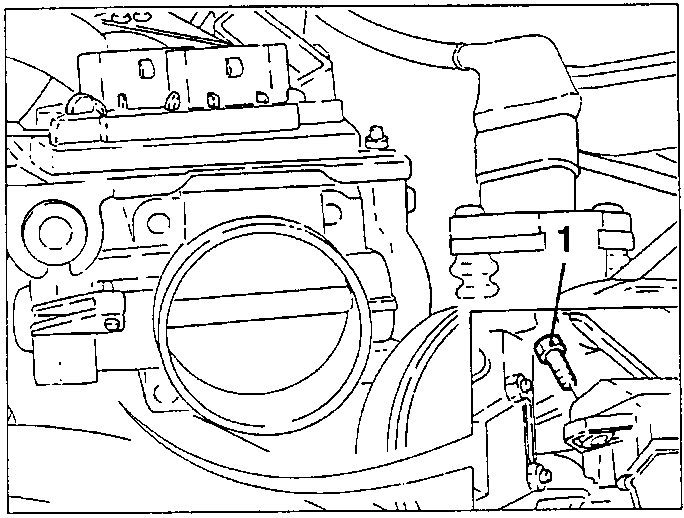

1. Remove the screw fastening the left-hand side of the modular intake manifold.

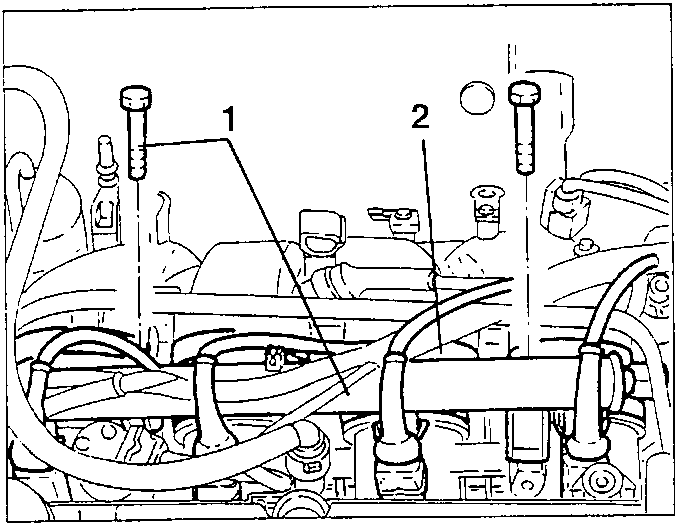

1. Remove the fuel distribution manifold fastening screw and shift it to access the rubber sleeves.
2. Disconnect the rubber sleeve fastening clips. Shift the modular intake manifold and remove the sleeves.

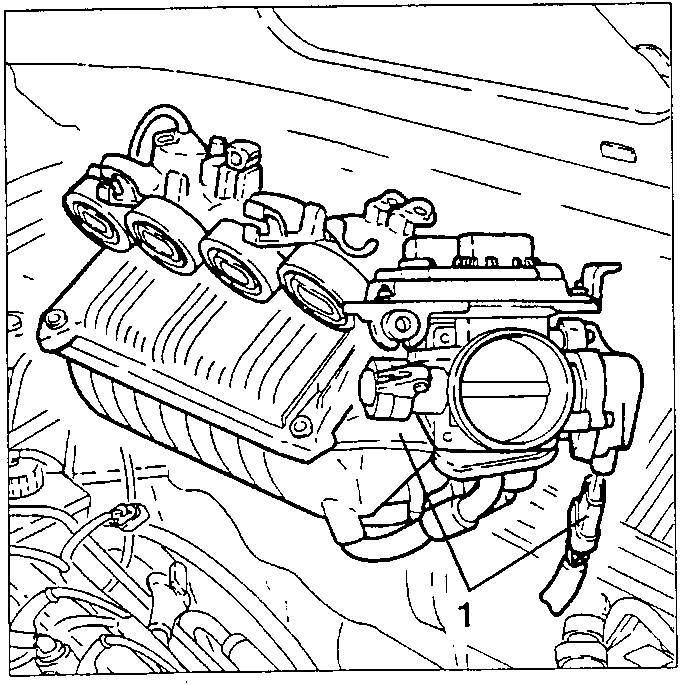

1. Remove the modular intake manifold, after disconnecting the constant idling actuator.
