Air supply system (1970 T. SPARK 16V) › Removal/refitting
EngineRemoval/refitting · page 1 of 3

REMOVAL/REFITTING

  • Position the vehicle on a shop jack.
  • Disconnect the (-) battery terminal.

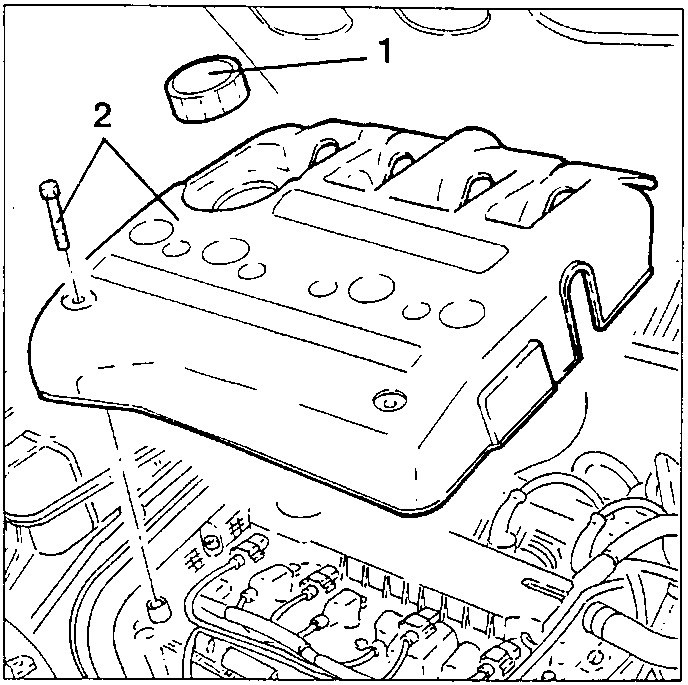

  1. Remove the engine oil filler cap.
  2. Remove the fastening screws and remove the ignition coil cover.
Engine oil filler cap and ignition coil cover removal

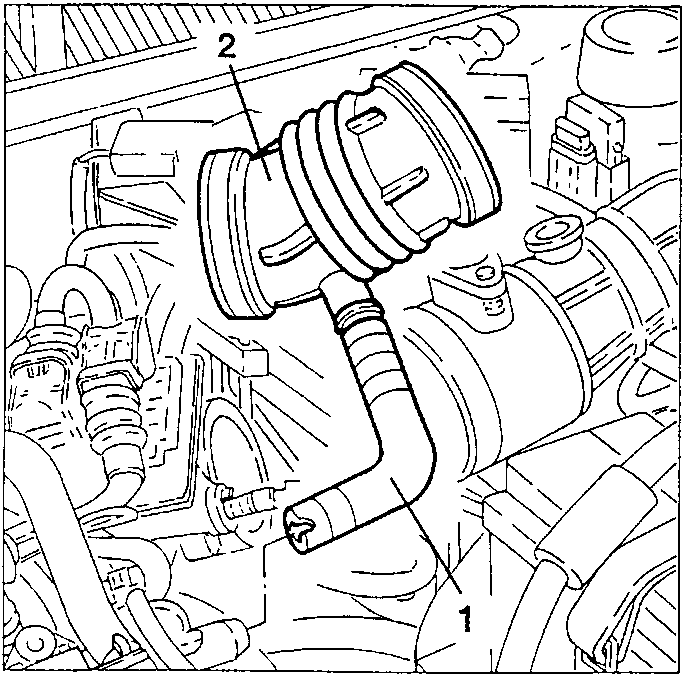

  1. Refit the engine oil filler cap.
  2. Disconnect the oil fume re-circulation pipe from the tappet cover.
  3. Disconnect the air flow meter sleeve from the throttle and remove it.
Air flow meter sleeve disconnection

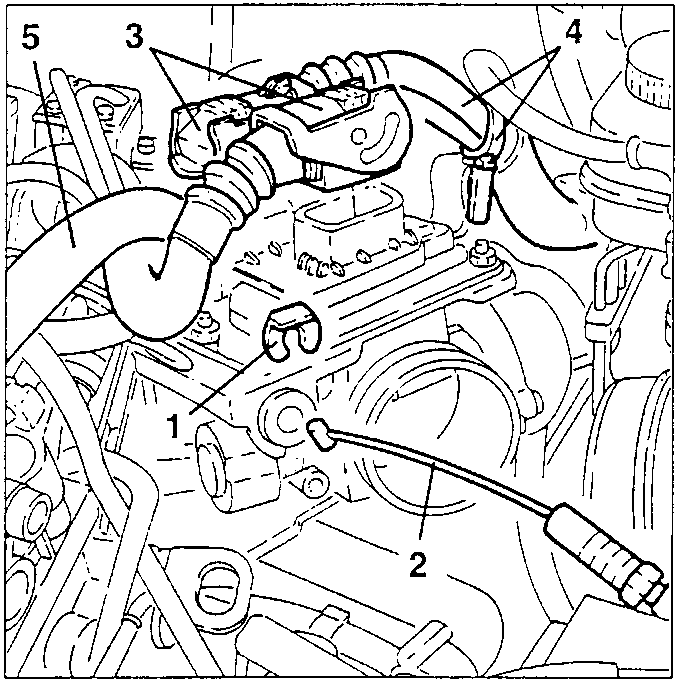

  1. Disconnect the engine ECU electric connections.
  2. Release the wiring from the clip on the ECU.
  3. Disconnect the oil fume intake pipe from the throttle.
ECU and oil fume intake pipe disconnection

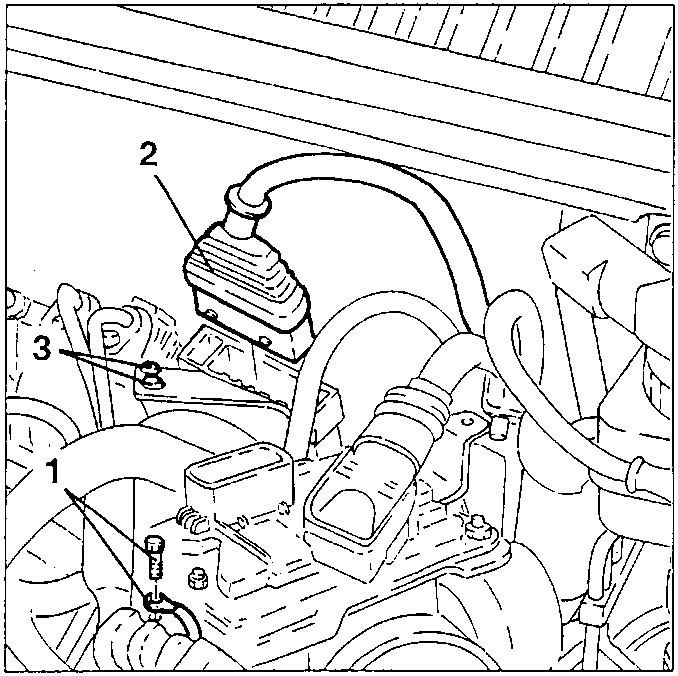

  1. Disconnect the earth from the engine ECU support.
  2. Disconnect the electric connection from the front/engine connection wiring.
  3. Remove the screws fastening the front/engine connection wiring to the modular intake manifold.
ECU support and front/engine connection wiring disconnection
  1. Remove the accelerator wire fastener from the rod.
  2. Release the accelerator wire from the cam on the throttle and shift it.
