ELECTRIC FAN

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the glove box (SEE GROUP 70).
  1. Slacken the lower screw fastening the dashboard to be able to remove the fan.
  2. Disconnect the electrical connection of the fan.
  3. Slacken the fan fastening screw, turn it as shown in the figure, then remove it raising the mat.

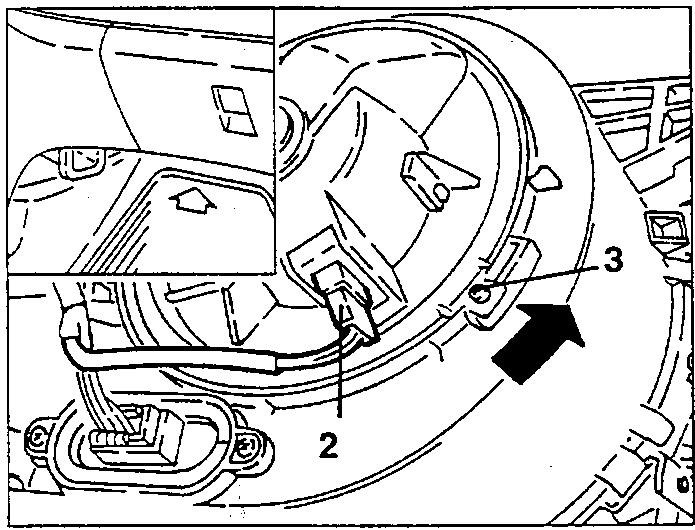

Electrical connection of the fan (2) and fan fastening screw (3), with arrow showing the direction to turn the fan

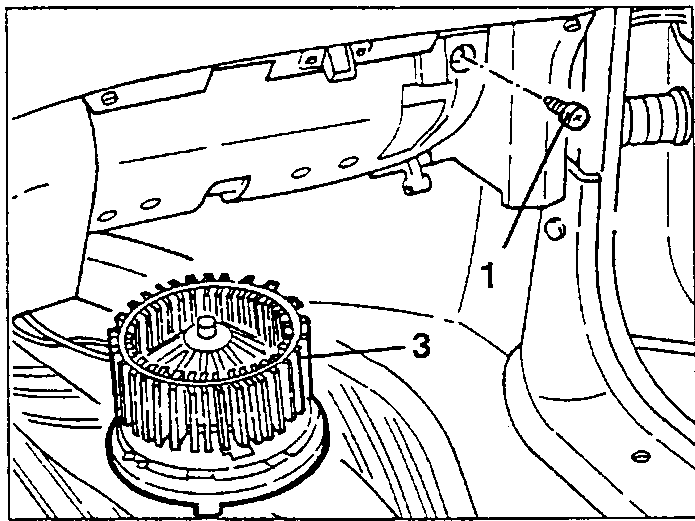

Lower dashboard fastening screw (1) and the fan (3)

FAN RESISTANCE

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.
  1. Disconnect the electrical resistance from the fan.
  2. Slacken the two fastening screws and remove the fan resistance.

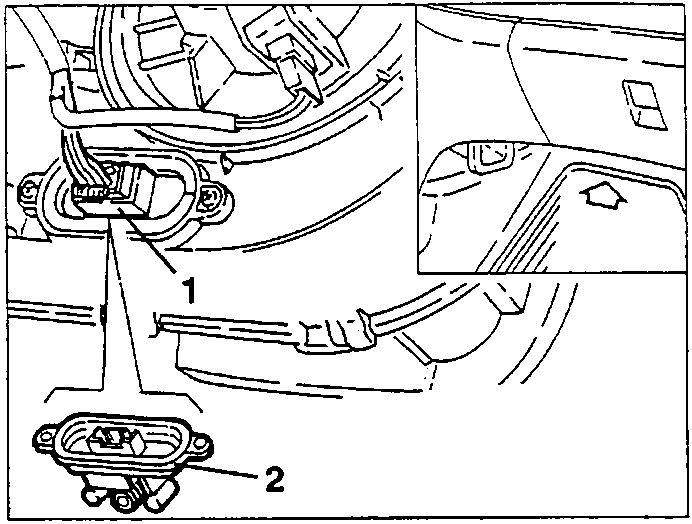

Fan resistance connection (1) and the fan resistance (2)

OUTSIDE AIR/RECIRCULATION VENT CONTROL MOTOR

REMOVAL/REFITTING

  • Remove the lower part of the dashboard (SEE GROUP 70).
  1. Slacken the four screws fastening the heating and ventilation unit to gain access to the motor.

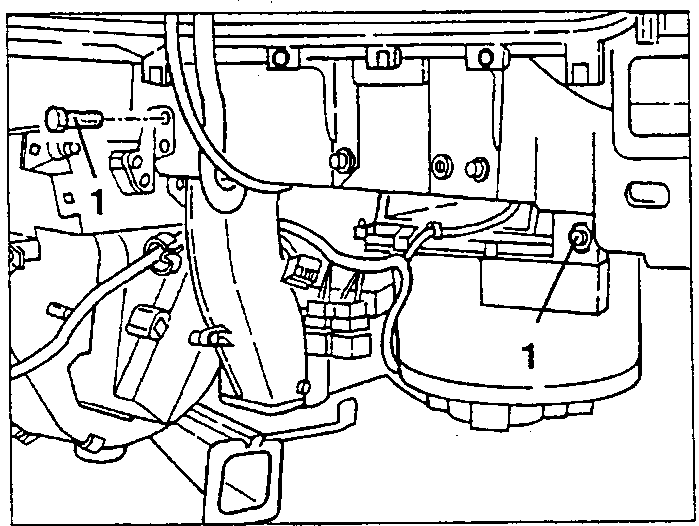

Fastening screws (1) of the heating and ventilation unit

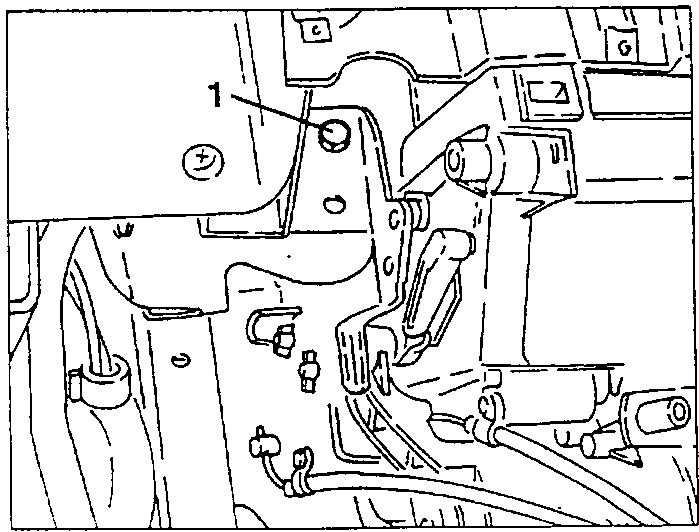

Fastening screw (1) of the heating and ventilation unit on the left-hand side
