Heating and ventilation - Turbodiesel engine › Dis-assembly
Heating and ventilationDis-assembly · page 1 of 6
  1. Use a centering pin positioned as shown, and centre the group before fixing it.

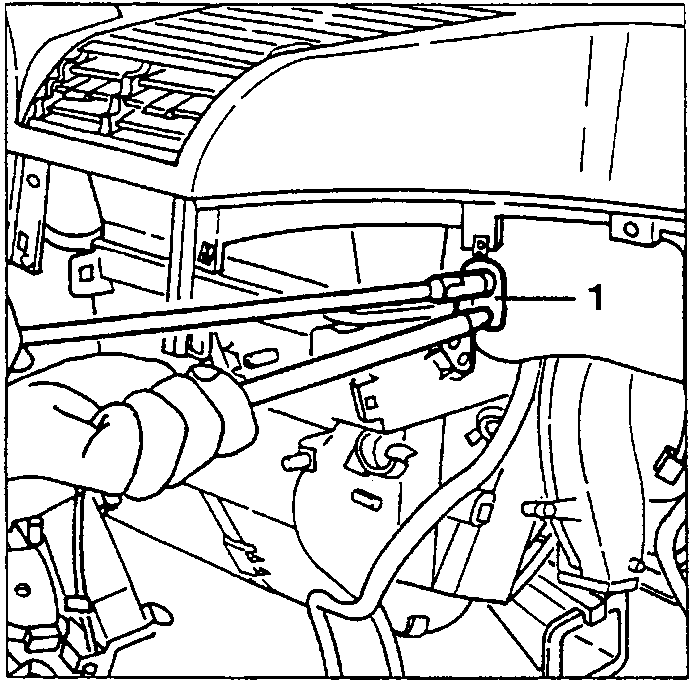

Centering pin (1) positioned to centre the heating and ventilation unit

DIS-ASSEMBLY

  1. Slacken the three fastening screws and remove the air delivery duct to the rear passenger area.

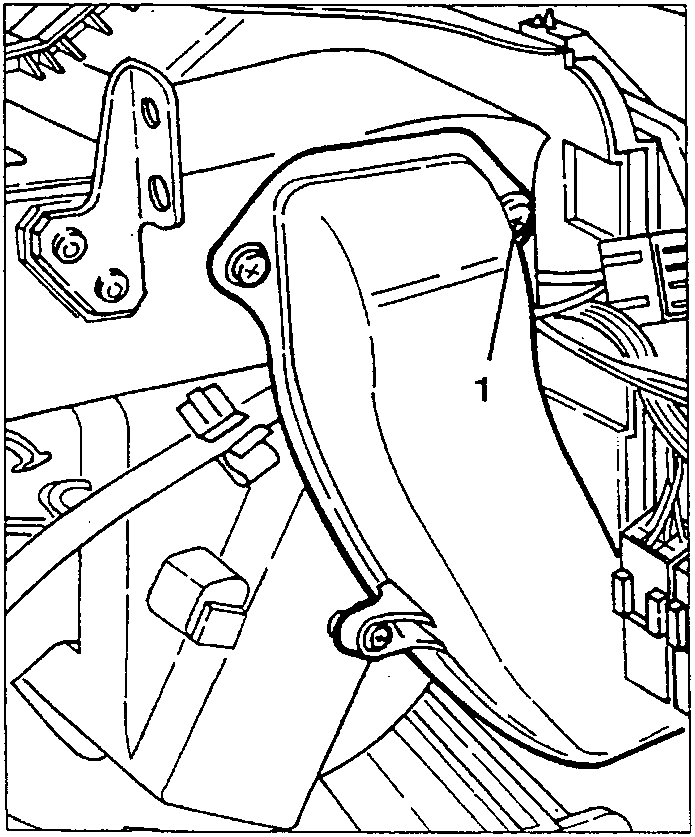

Air delivery duct to the rear passenger area with a fastening screw (1)
  1. Disconnect the four electrical connections from the heating and ventilation controls.

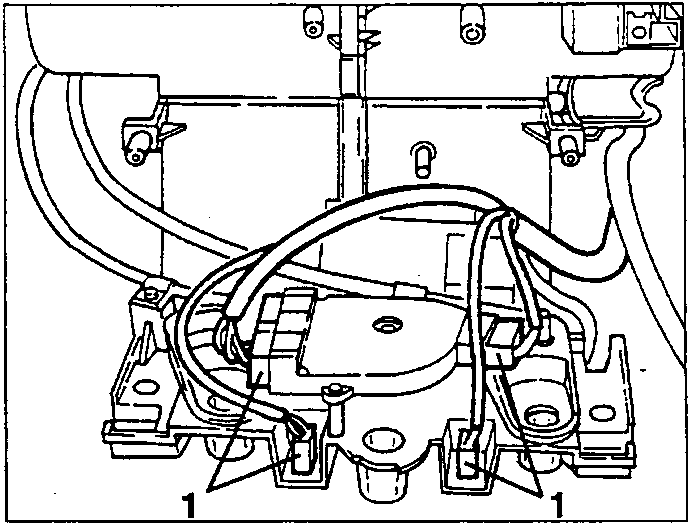

Electrical connections (1) on the heating and ventilation controls
  1. Slacken the screw fastening the relay switch support bracket.

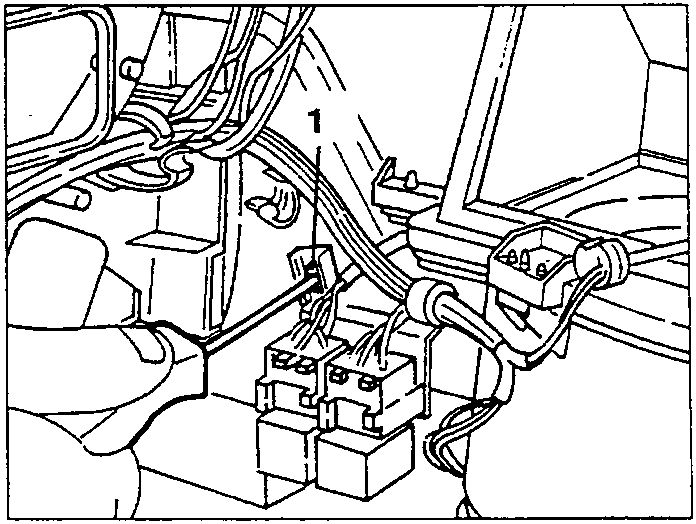

Screw (1) fastening the relay switch support bracket
  1. Disconnect the electrical connection of the outside air/recirculation mixing vent control motor.

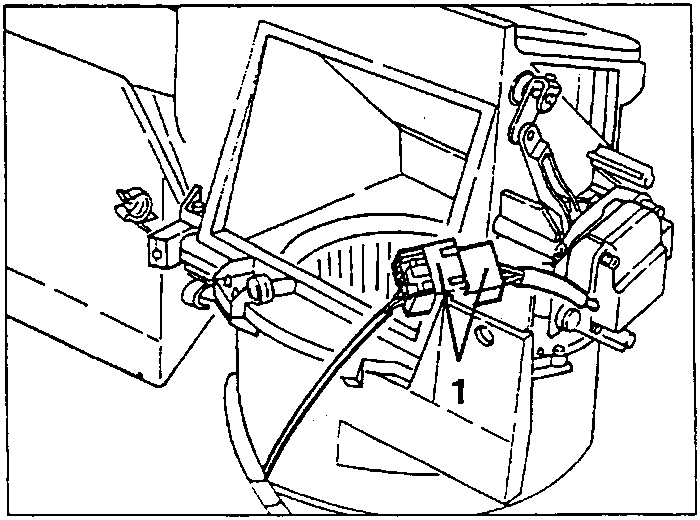

Electrical connection (1) of the outside air/recirculation mixing vent control motor
