Heating and ventilation - Turbodiesel engine
Heating and ventilationDis-assembly · page 5 of 6

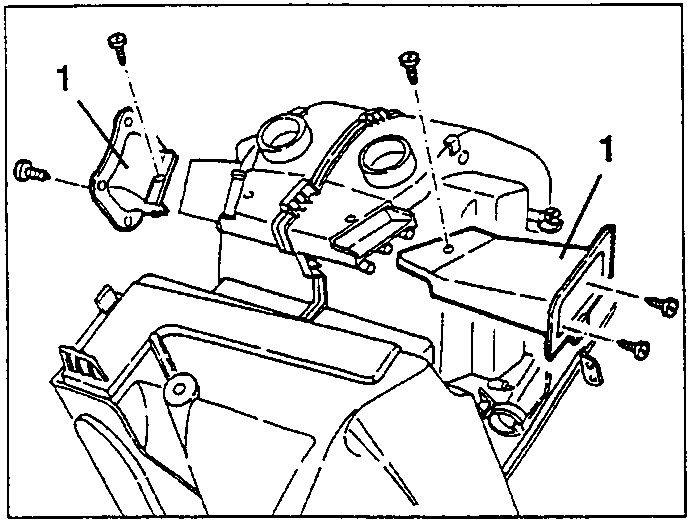

  1. Slacken the fastening screws and remove the air delivery ducts to the feet.
Air delivery ducts to the feet (1) with their fastening screws

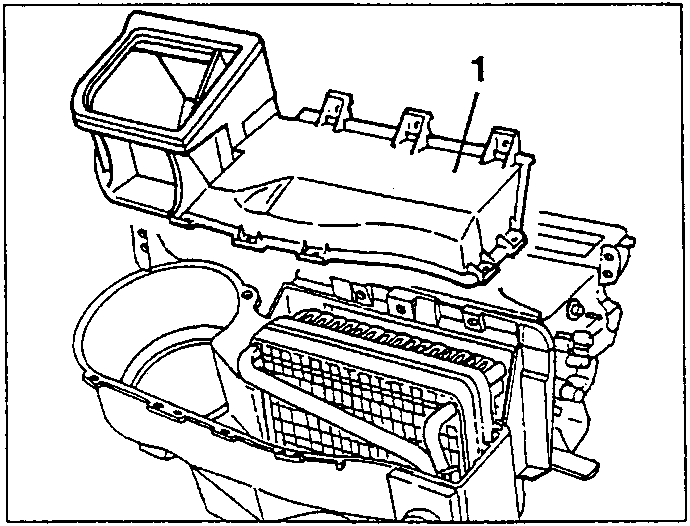

  1. Slacken the fastening screws and remove the heater upper half box releasing it from its catches.
Heater upper half box (1) being removed

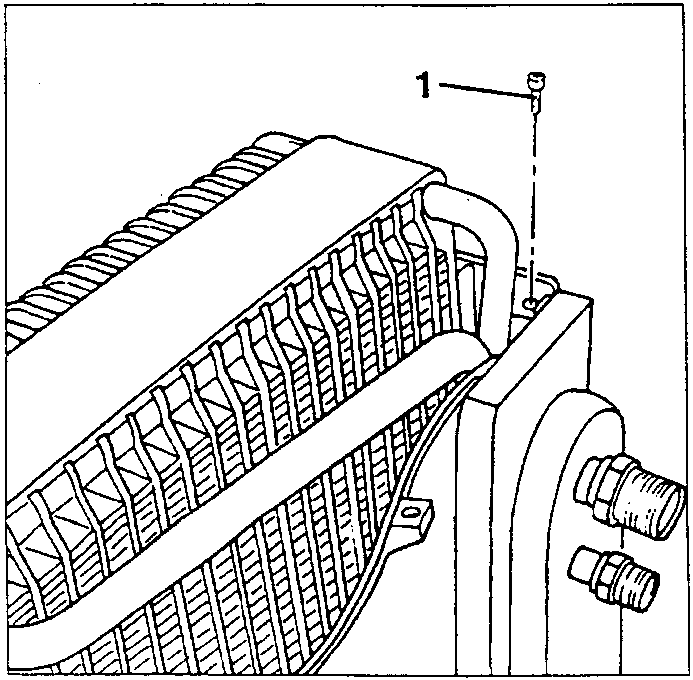

  1. Slacken the evaporator fastening screw.
Evaporator fastening screw (1)

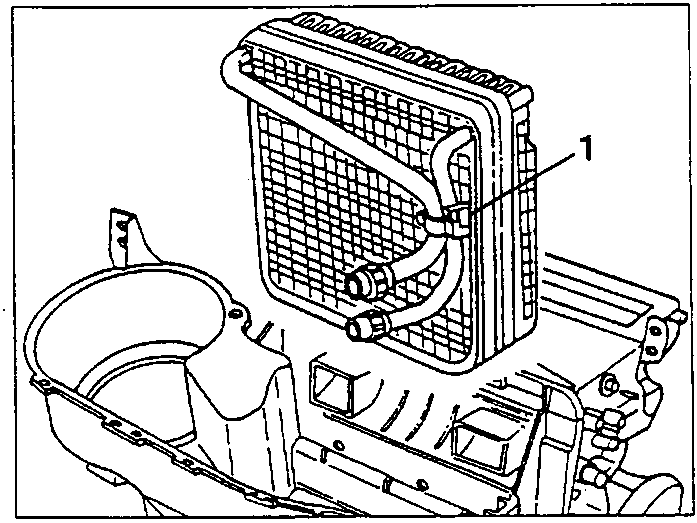

  1. Remove the evaporator slipping the pipes out of their seals.
Evaporator (1) being removed

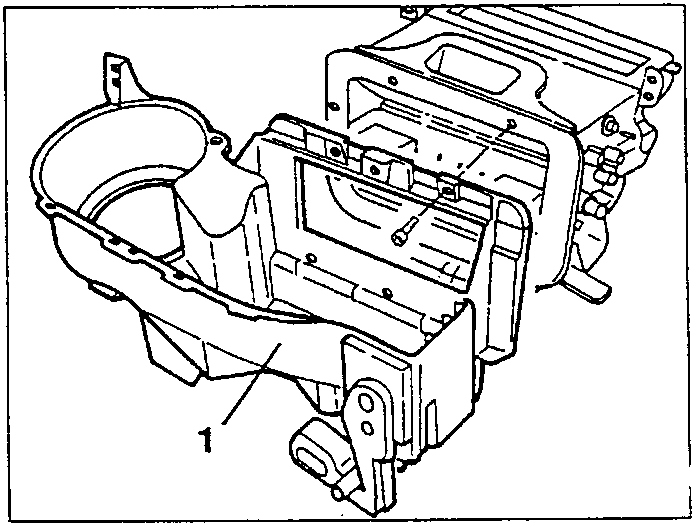

  1. Slacken the fastening screws and remove the heater lower half box releasing it from its catches.
Heater lower half box (1) being removed

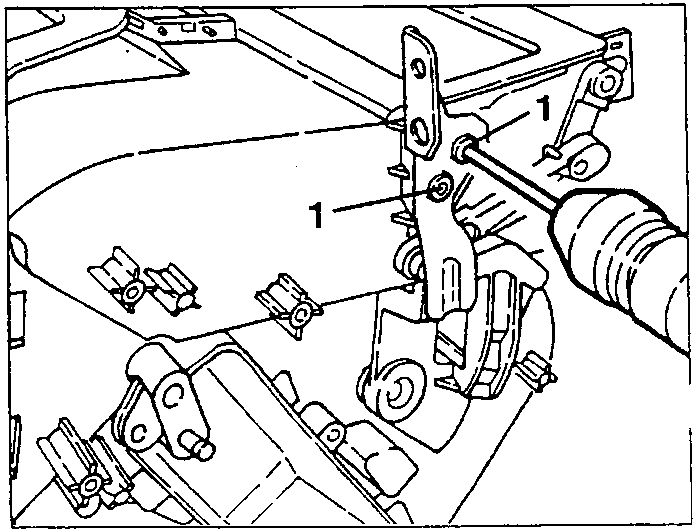

  1. Using a drill knock off the two rivets fastening the heating and ventilation unit support bracket.
Drilling out the two rivets (1) of the heating and ventilation unit support bracket
