Dis-assembly (page 6 of 6)

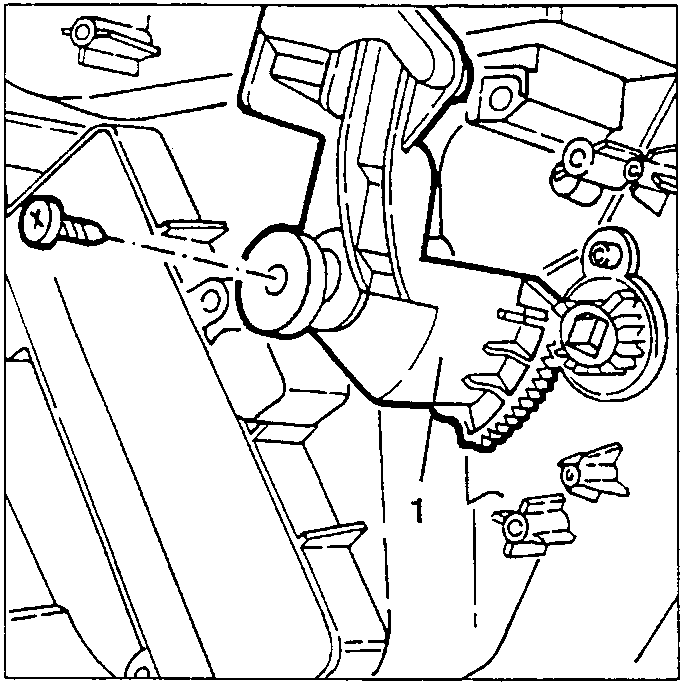

1. Slacken the fastening screw and remove the air distribution vent control leverage.

[symbol] When refitting the leverage make sure that the two notches stamped on the gears coincide.

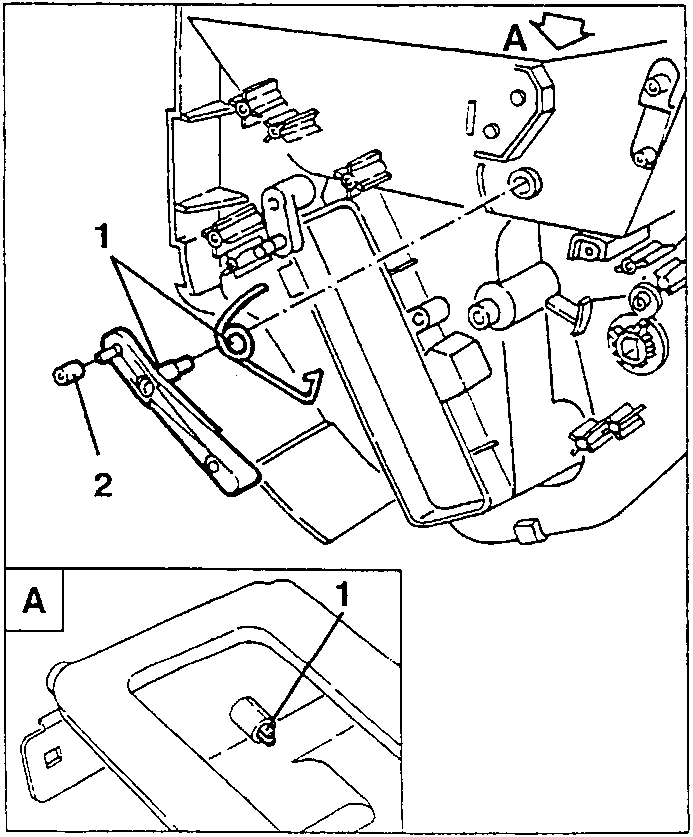

1. Release the clamps of the fastening pin and remove the tie-rod complete with air distribution vent control spring.
2. Retrieve the spacer.

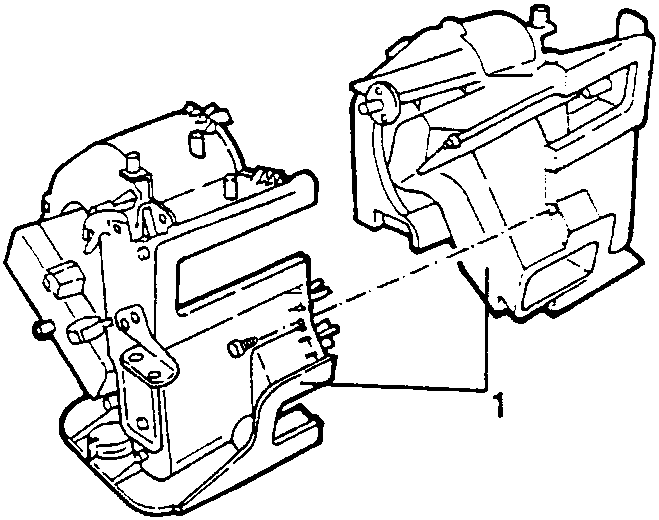

1. Slacken the fastening screws and dis-assemble the half boxes releasing the fastening clamps.

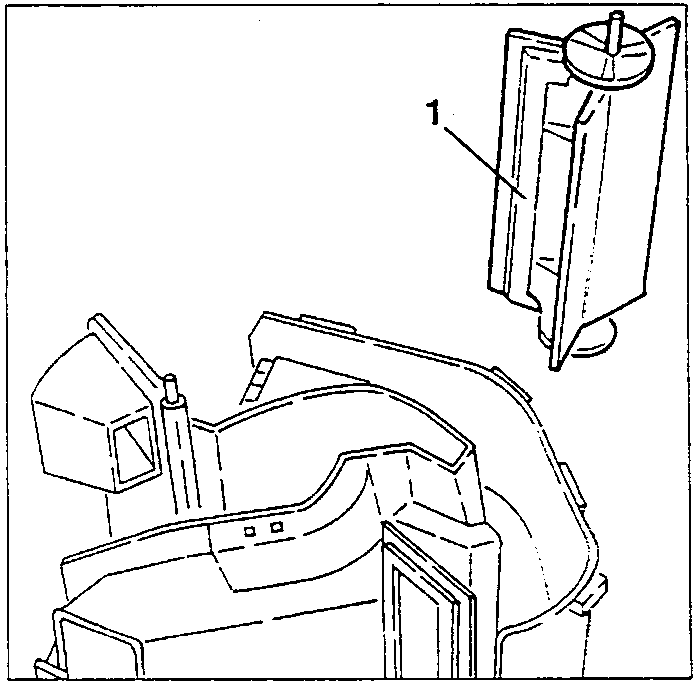

1. Remove the lower distribution vent.

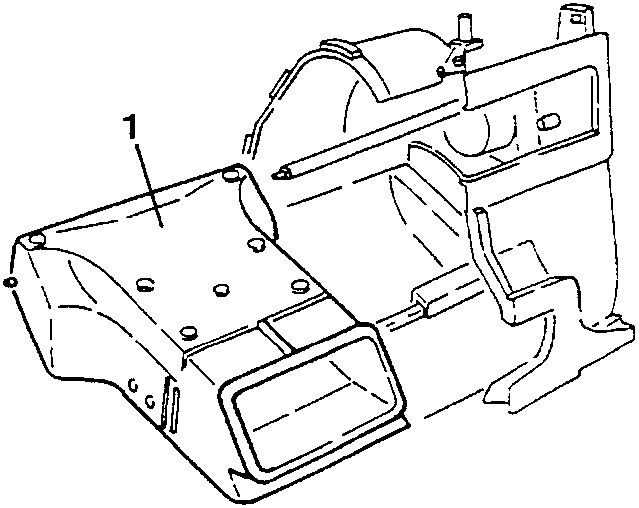

1. Remove the air duct.
