Alfa Romeo 145/146 Factory Service Manual (1994-1999)10 · Heating and ventilation
10 · Heating & A/C

Dis-assembly (page 4 of 6)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Heating and ventilation - Turbodiesel engine
Heating and ventilationDis-assembly · page 4 of 6
  1. Slacken the two fastening screws and remove the protection of the coolant fluid pipes at the heater radiator.

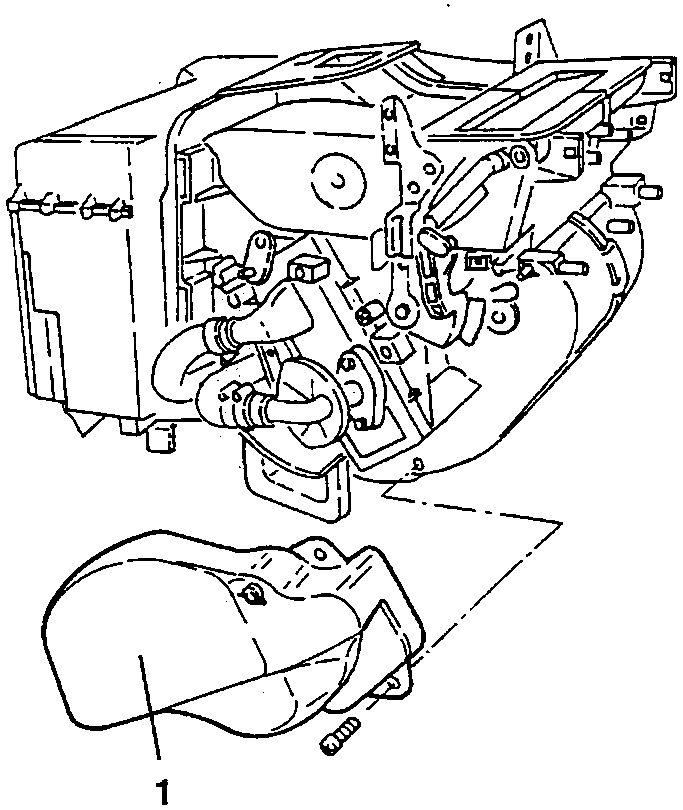

Heater unit with the protection (1) of the coolant fluid pipes removed
  1. Disconnect the coolant fluid inlet pipe from the tap on the radiator.
  2. Disconnect the coolant fluid outlet pipe from the tap on the radiator.

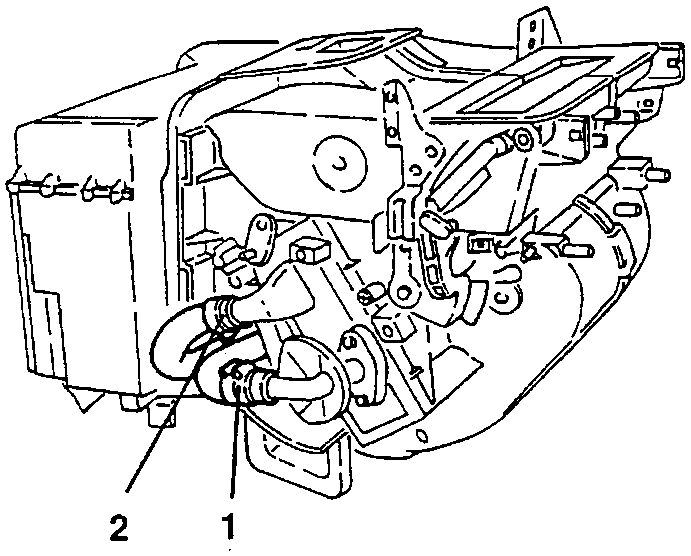

Coolant fluid inlet pipe (1) and outlet pipe (2) at the heater radiator tap
  1. Slacken the screw fastening the control tie-rod for the coolant radiator inlet tap.
  2. Disconnect the tie-rod and remove it.

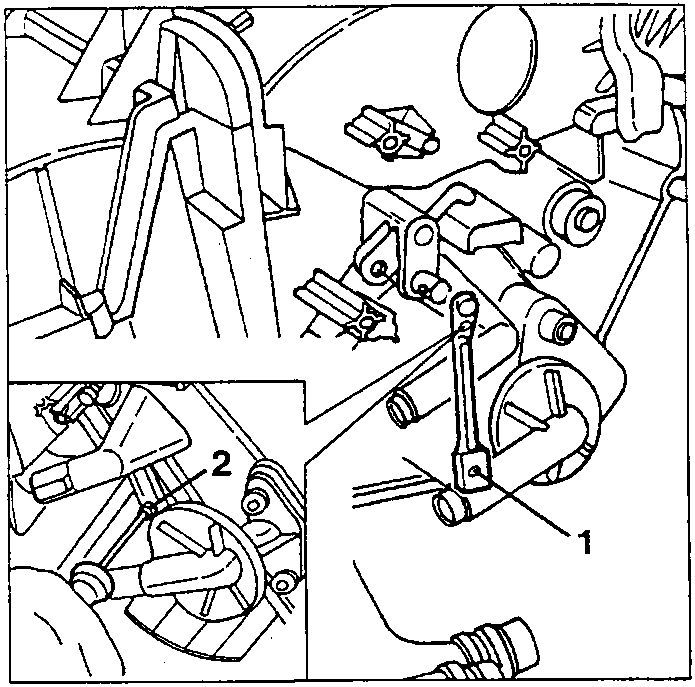

Control tie-rod (1) for the coolant radiator inlet tap, with inset detail (2)
  1. Slacken the two fastening screws and take out the heater radiator.

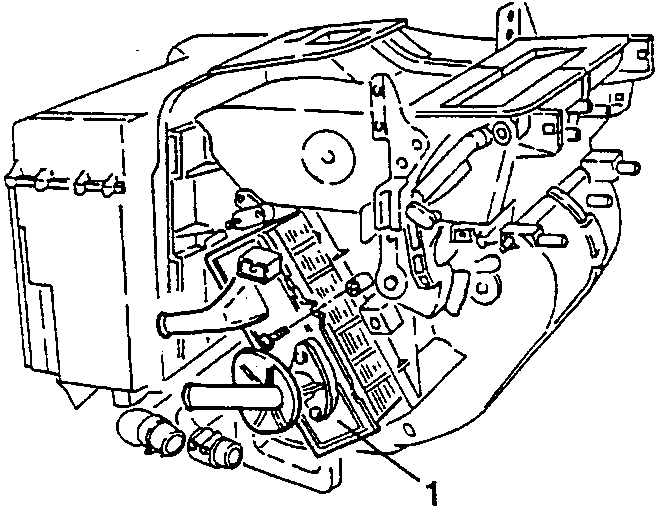

Heater radiator (1) being removed
  1. Slacken the fastening screw and remove the heater cooland delivery and return pipes.

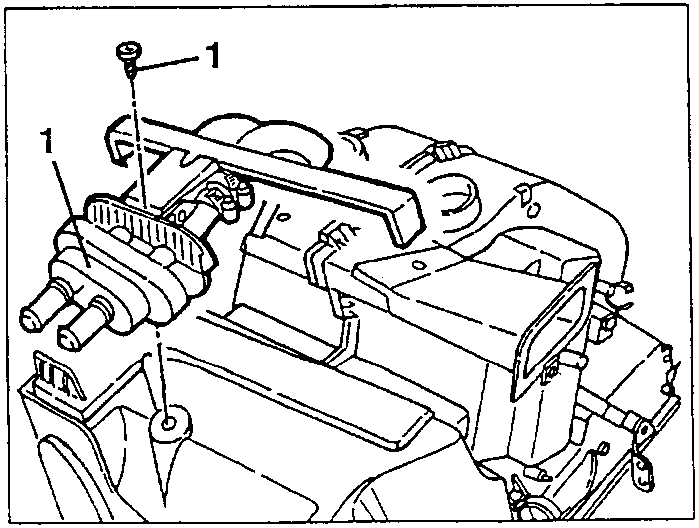

Heater coolant delivery and return pipes (1) with fastening screw
