HEATER RADIATOR

REMOVING/REFITTING

  • Remove the lower part of the dashboard and the centre console (see GROUP 70).
  1. Slacken the fastening screws and lower the controls.

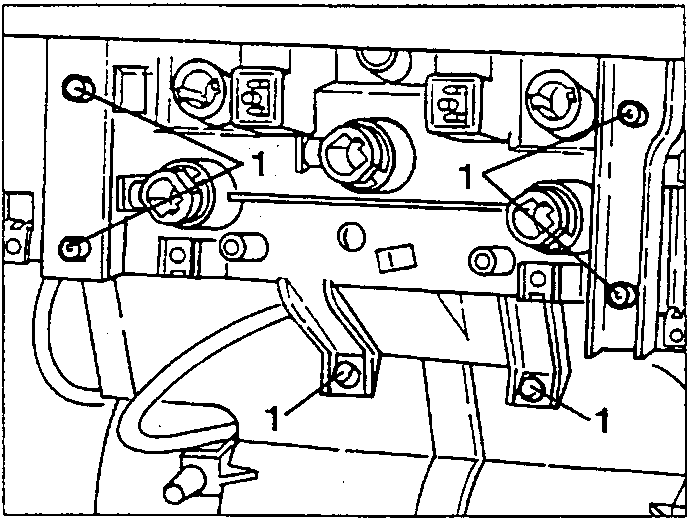

Fastening screws of the heating and ventilation controls
  1. Slacken the three screws fastening the heating and ventilation unit on the righthand side.

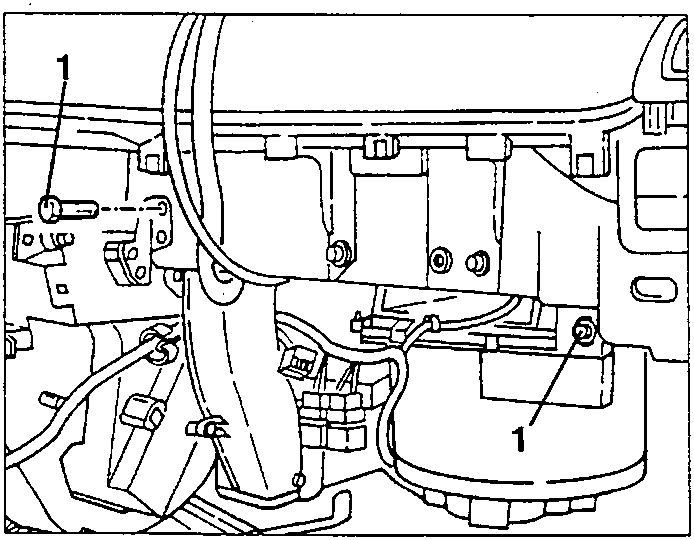

Three fastening screws of the heating and ventilation unit, righthand side
  1. Slacken the screw fastening the heating and ventilation unit on the lefthand side.

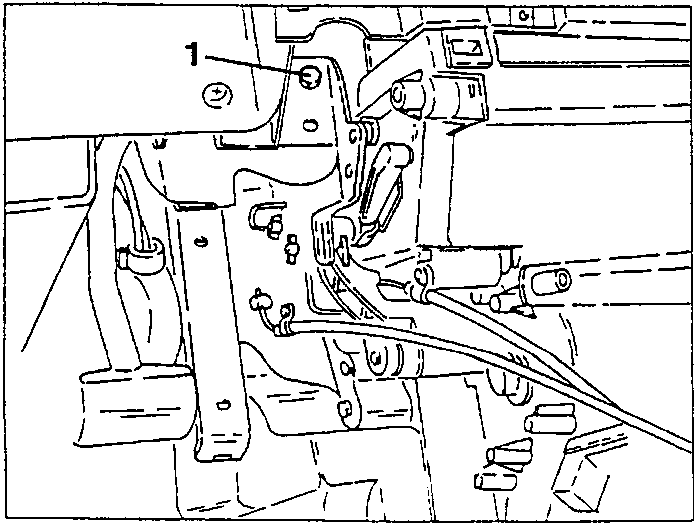

Fastening screw of the heating and ventilation unit, lefthand side
  1. Slacken the fastening screws and remove the coolant pipe guard.
  2. Disconnect the coolant fluid inlet and outlet pipes.

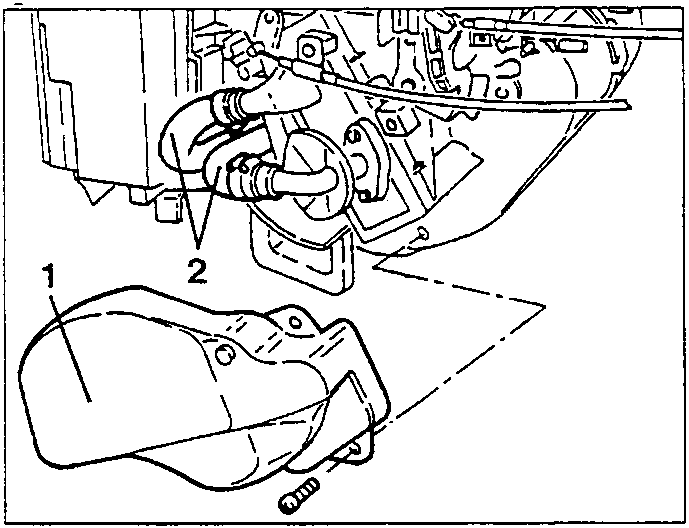

Coolant pipe guard (1) and the coolant inlet and outlet pipes (2)
  1. Remove the mixing port-coolant fluid inlet cock control cable.
  2. Disconnect the fluid inlet cock control rod at the top.

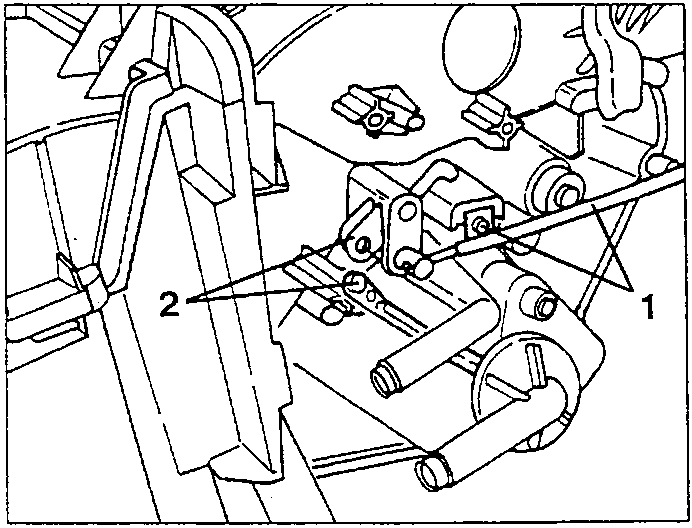

Mixing port control cable (1) and fluid inlet cock control rod (2)
  1. Move the unit enough to slacken the two fastening screws and take out the heater radiator.

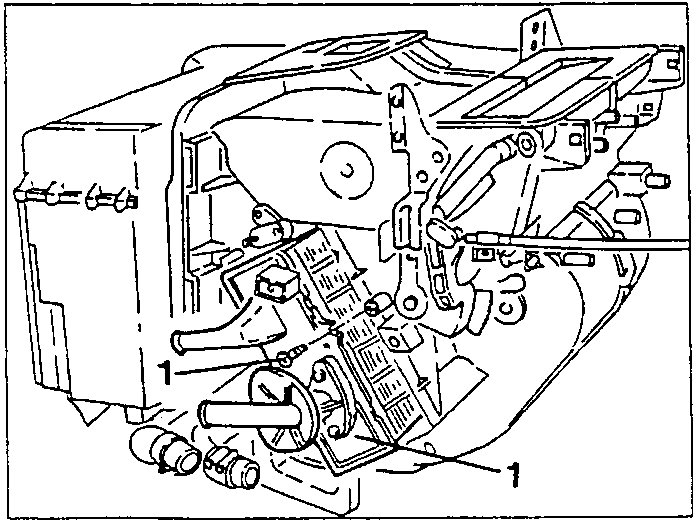

Heater radiator fastening screws in the heating and ventilation unit
