Alfa Romeo 145/146 Factory Service Manual (1994-1999)10 · Heating and ventilation
10 · Heating & A/C

Dis-assembly (page 3 of 6)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Heating and ventilation - Turbodiesel engine
Heating and ventilationDis-assembly · page 3 of 6
  1. Slacken the screw fastening the electric fan, turn it as shown in the figure, then remove it.

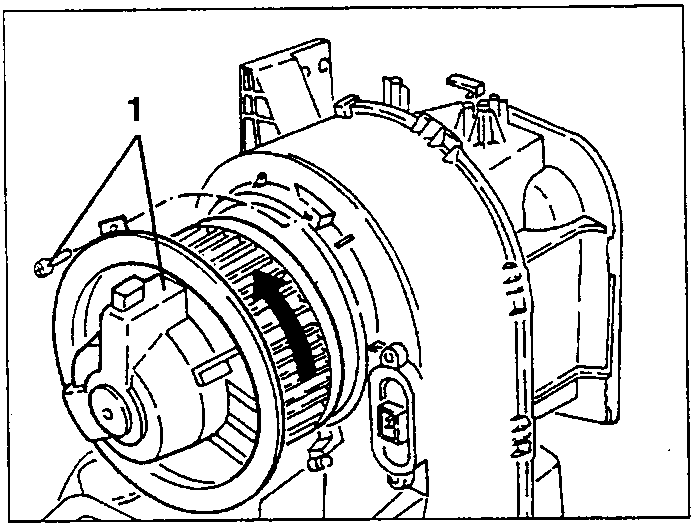

Electric fan with fastening screw (1) and arrow showing the direction to turn it
  1. Separate the fan from the cover releasing the three rubber catches and removing the two electric cables.

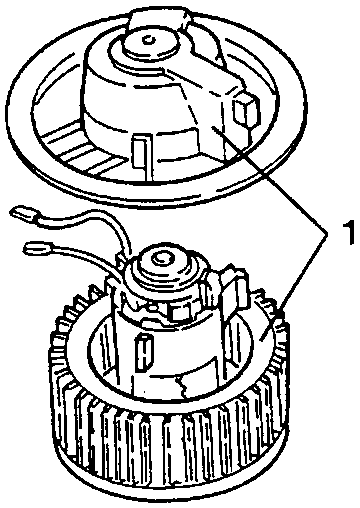

Fan separated from its cover, rubber catches (1)
  1. Slacken the two fastening screws and remove the fan resistance.

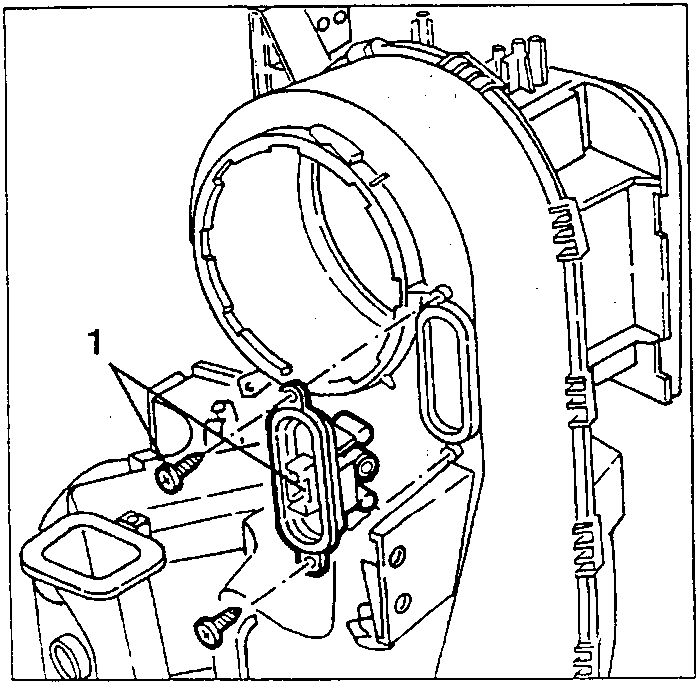

Fan resistance with its two fastening screws (1)
  1. Slacken the fastening screw and remove the hook connecting the outside air/recirculation vent control tie- rod.

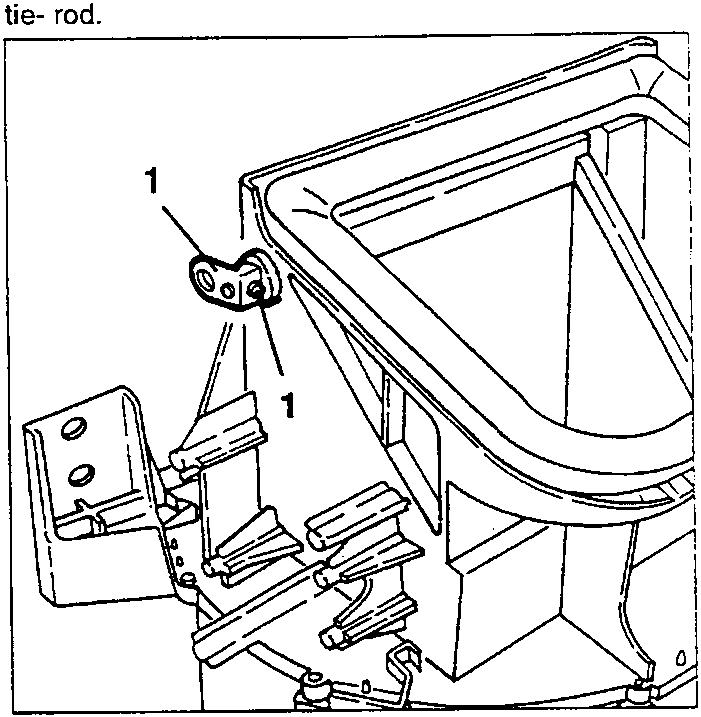

Hook (1) connecting the outside air/recirculation vent control tie-rod
  1. Release the outside air/recirculation vent from the two fastening clips and remove it.

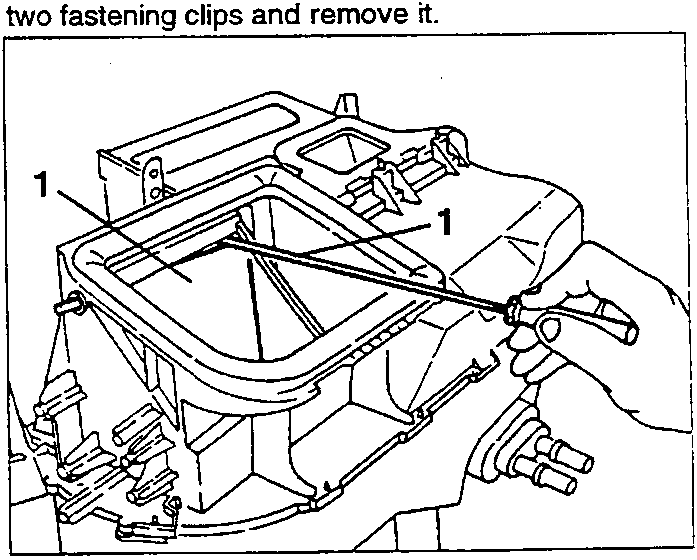

Releasing the outside air/recirculation vent (1) from its fastening clips with a screwdriver
  1. Disconnect the two control cables from the heating and ventilation unit and remove them complete with the control units.

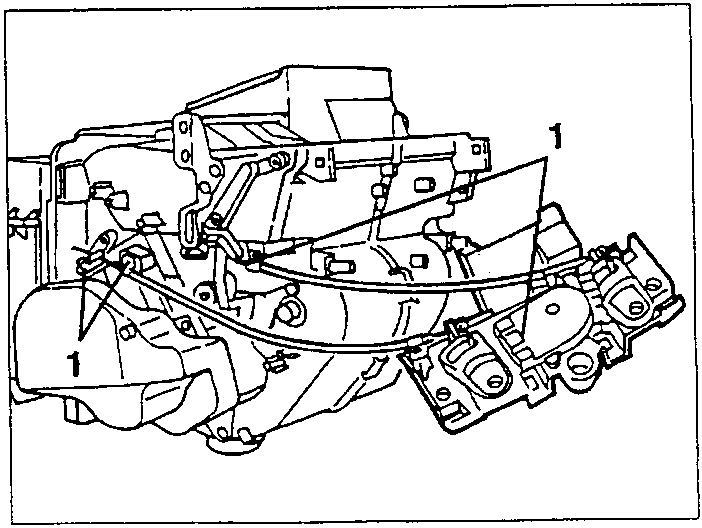

Control cables (1) on the heating and ventilation unit
