Heating and ventilationDis-assembly · page 2 of 6
  1. Disconnect the electrical connection from the fan.
  2. Disconnect the electrical connection from the fan resistance, then remove the cable loom freeing it of the cable clamps.

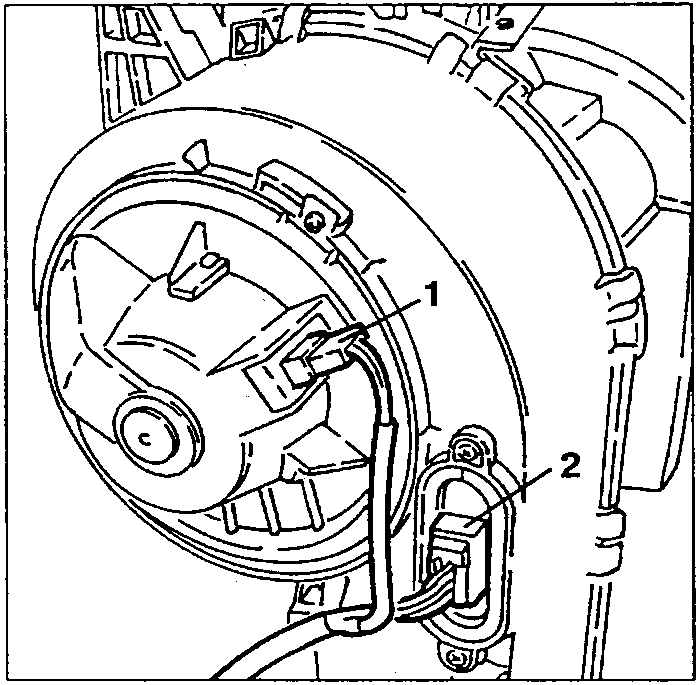

Electrical connections of the fan (1) and fan resistance (2)
  1. Slacken the screw fastening the outside air/recirculation mixing vent control motor tie-rod.
  2. Slacken the three screws fastening the outside air/recirculation mixing vent motor.

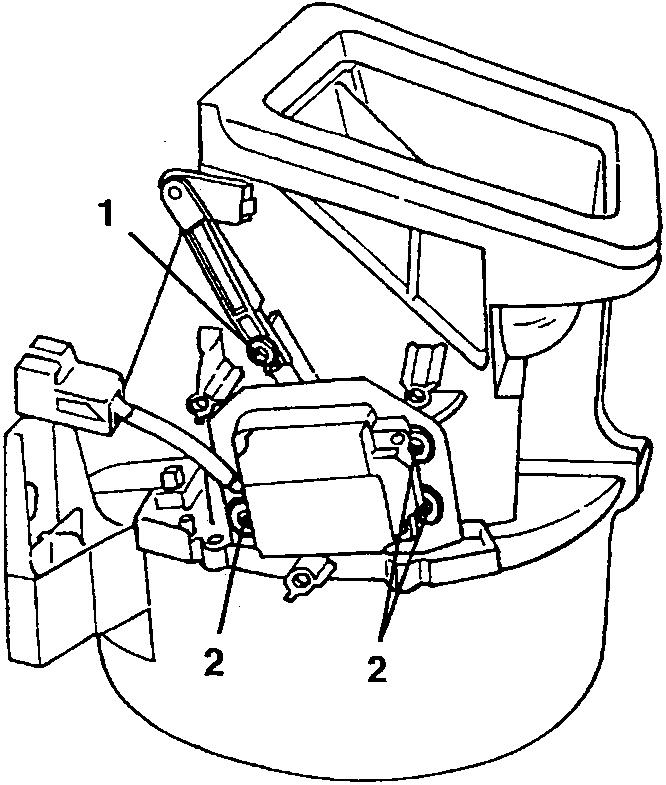

Tie-rod screw (1) and motor fastening screws (2) of the outside air/recirculation mixing vent motor
  1. Remove the outside air/recirculation mixing vent motor complete with the grommets on the fastening hole.
  2. Retrieve the rear plate.

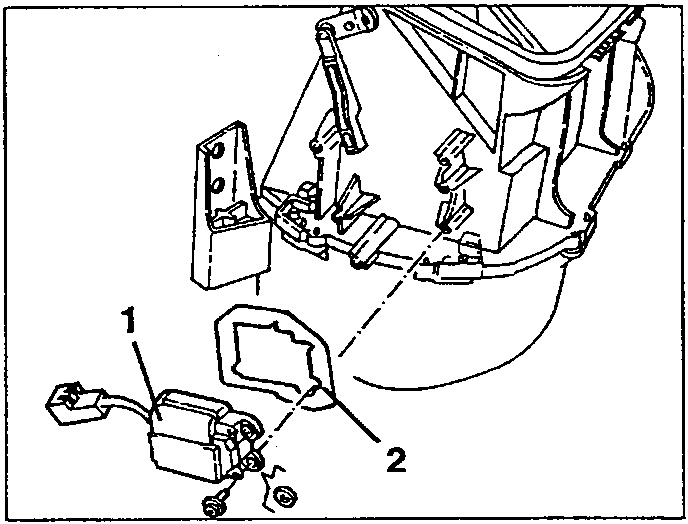

Outside air/recirculation mixing vent motor (1) and rear plate (2) removed

[symbol] When refitting, adjust opening and closing of the outside air/recirculation mixing vent acting on the control tie-rod as shown in the figure.

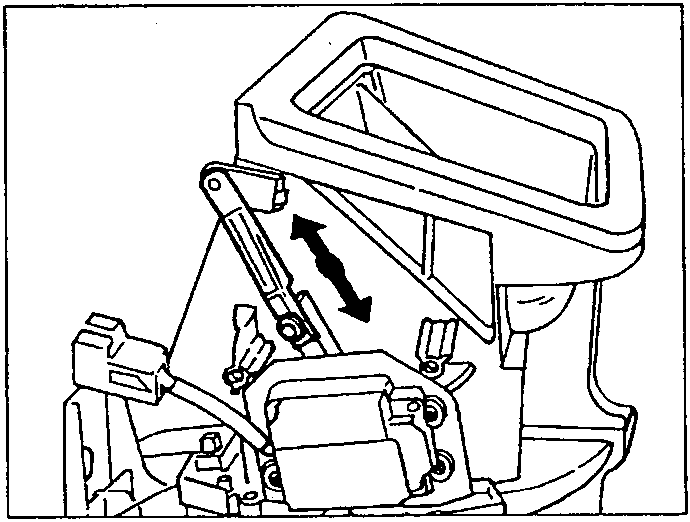

Adjusting the control tie-rod of the mixing vent, with a double arrow showing the adjustment
  1. Remove the outside air/recirculation mixing vent control tie-rod.

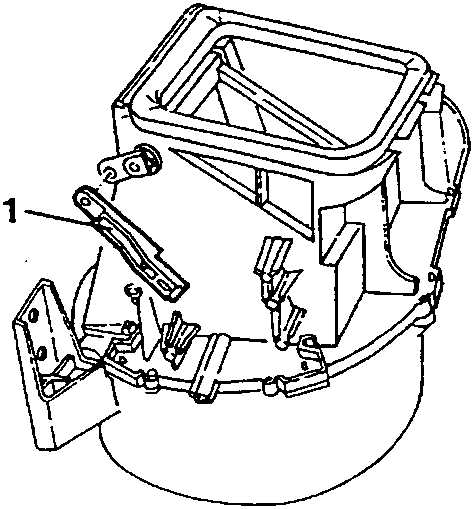

Control tie-rod (1) of the mixing vent
