Sun roof systems

Operation 7030B54 · Sliding roof

CHECKING SLIDE ALIGNMENT.

If there are no faults which prevent this possibility, place the sun roof in the 'closed' position.

Refer to op. 7030B18 sliding roof glass - r+r

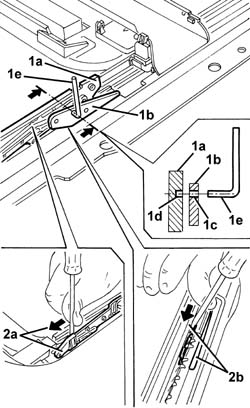

1. On the slides (1a) and (1b) on both sides of the sun roof, check that the through hole (1c) oines up with the blind hole (1d); carry out this check using a pin (1e) of the same diameter as the holes. If the result is negative, align the slides (1a) and (1b) as described below.

SLIDE ALIGNMENT.

Refer to op. 5580E22 Anti-theft device VOLUMETRIC SENSORS - R.R. after checking electrical circuit

Refer to op. 7030B70 sun-roof control switch - r+r

2. Move the main slides (2a) manually fully forwards, then move the slides (2b) on both sides forwards until the through hole (1c) lines up with the blind hole (1d); carry out this check using a pin (1e).

In the above-mentioned condition, Refer to op. 7030B70 sun-roof control switch - r+r

if the power supply to the motor is cut off during operation of the sun roof, the control unit hangs up. To proceed with re-programming, see 'Descriptions and Operation - 7030B.

Refer to op. 7030B18 sliding roof glass - r+r

Test the sun-roof to ensure it is sliding properly.
