Drainage channel - r r

Operation 7030B40 · Sliding roof

Removing

- 7040H30 front pillar trim - r r (left and right sides)

- 7040L40 front compartment scuff strip - r r (left and right sides)

- 7040A22 instrument facia complementary trim element (one) - arrange (left and right sides)

- 7040H50 rear panel - r r (left and right sides)

- 7040H38 central pillar upper element - r r (left and right sides)

- 7040G30 boot light bulb holder - r r

- 7040H42 rear pillar trim - r r (left and right sides)

- 7065C33 sun blind with courtesy mirror and courtesy light one lh or rh r r (left and right sides)

- 5580E22 Anti-theft device VOLUMETRIC SENSORS - R.R. after checking electrical circuit

- 7040E50 front modular courtesy light unit - r+r

- 7040E16 rear courtesy light - r+r

- 7030B34 sliding roof compartment decorative seal - r+r

- 7040H16 roof panel lining - r r

- 7030B10 sliding roof (assembly) - r+r with roof panel removed

1. From both sides, release the channel retainers.

2. Recover the channel.

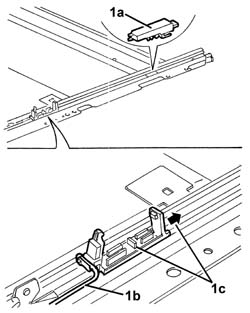

1. If necessary, remove the end-of-travel block (1a) from its seating, then disengage the channel slide linkage (1b) and withdrawn the channel runner (1c) from the guide.

Refitting

Check that the channel is not damaged.

If removed, insert the channel runner in the guide, then engage the channel slide linkage and fit the end-of-travel block in its seating.

Fit the channel in position and engage the retainers on both sides.

- 7030B10 sliding roof (assembly) - r+r with roof panel removed

- 7040H16 roof panel lining - r r

- 7030B34 sliding roof compartment decorative seal - r+r

- 7040E16 rear courtesy light - r+r

- 7040E50 front modular courtesy light unit - r+r

- 5580E22 Anti-theft device VOLUMETRIC SENSORS - R.R. after checking electrical circuit

- 7065C33 sun blind with courtesy mirror and courtesy light one lh or rh r r (left and right sides)

- 7040H42 rear pillar trim - r r (left and right sides)

- 7040G30 boot light bulb holder - r r

- 7040H38 central pillar upper element - r r (left and right sides)

- 7040H50 rear panel - r r (left and right sides)

- 7040A22 instrument facia complementary trim element (one) - arrange (left and right sides)

- 7040L40 front compartment scuff strip - r r (left and right sides)

- 7040H30 front pillar trim - r r (left and right sides)
